Massey Ferguson 1417, 1423 Tractor Service Manual Workshop Guide

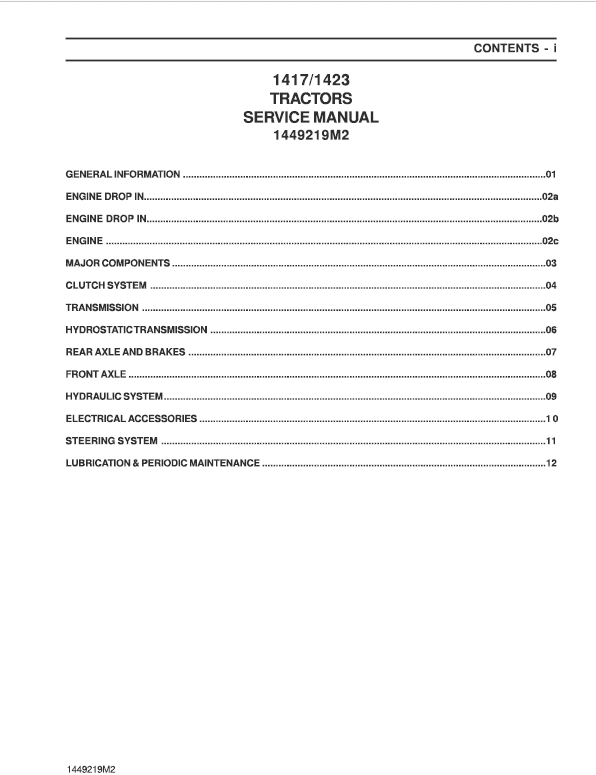

Massey Ferguson 1417, 1423 Tractors Workshop Manual – 187 Pages Format PDF Type: Workshop Manual Publication No: 14492219M2 Description Massey Ferguson 1417, 1423 Tractor Manual Model: Tractor 1417, 1423 Format PDF Type: Workshop Manual Publication No: 14492219M2 Massey Ferguson 1417, 1423 Tractors Workshop Manual – 187 Pages Manual Table of Content General Information Engine Major components Clutch System Transmission Hydrostatic Transmission Rear Axle and Brakes Front Axle Hydraulic System Electrical Accessories Steering System Lubrication & Periodic Maintenance MANUAL EXTRACT: SEPARATION OF THE ENGINE FROM CLUTCH HOUSING 1. Drain the transmission oil. 2 . Remove the hood and other parts. 3. Remove the bolt from 4WD shaft-cover and remove the 4WD shaft-cover from front axle pivot. 4. Disconnect the wire harness connectors at the right bottom of the steering wheel column. 5. Remove the throttle wire. 6. Disconnect the fuel pipe from the fuel filter. NOTE: Plug the pipe to prevent fuel from spilling. 7. Remove the fuel filter and filter support. 8 . Disconnect the delivery and suction pipe from the gear pump. 9. Remove the fuel tank with fuel tank bracket. 10. Remove all the bolts but one which secures the engine and clutch housing. IMPORTANT:One bolt should remain for safety to prevent the engine and clutch housing from being separated pre-maturely. 11 . Use wooden blocks between the front axle and the front axle bracket on both sides to hold the engine securely. 12. Support the transmission case with a floor jack and hoist the engine with a chain block. Then remove the last bolt. 13. Separate the engine from the clutch housing carefully.
