Massey Ferguson 1429, 1433, 1440 Tractor Service Manual Workshop Guide

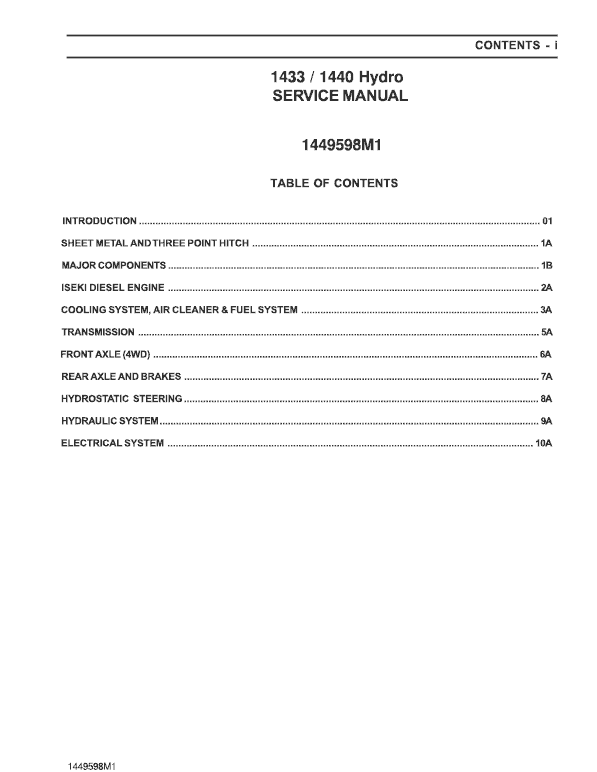

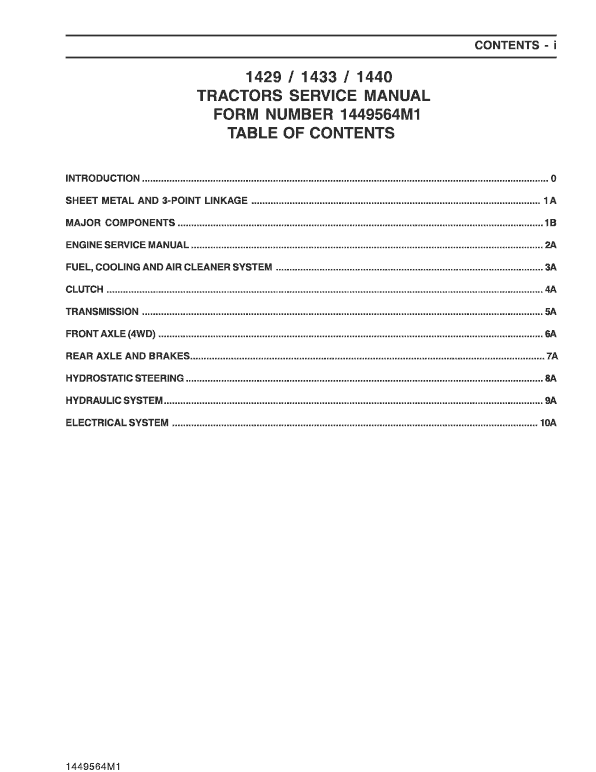

Massey Ferguson 1429, 1433, 1440 Tractors Workshop Manual – 320 Pages & 308 Pages Iseki Three-Cylinder Diesel Engine (Prior to 2005 Production) – 124 Pages Format PDF Type: Workshop Manual Publication No: 1449598M1 & 1449564M1 Description Massey Ferguson 1429, 1433, 1440 Tractor Manual Model: Tractor 1429, 1433, 1440 Format PDF Type: Workshop Manual Publication No: 1449598M1 & 1449564M1 Massey Ferguson 1429, 1433, 1440 Tractors Workshop Manual – 320 Pages & 308 Pages Iseki Three-Cylinder Diesel Engine (Prior to 2005 Production) – 124 Pages Manual Table of Content INTRODUCTION ………………………………………………………………………………………………………………………………… 01 SHEET METAL AND THREE POINT HITCH …………………………………………………………………………………………… 1A MAJOR COMPONENTS ………………………………………………………………………………………………………………………. 18 ISEKI DIESEL ENGINE ………………………………………………………………………………………………………………………. 2A COOLING SYSTEM, AIR CLEANER & FUEL SYSTEM …………………………………………………………………………… 3A TRANSMISSION ………………………………………………………………………………………………………………………………… 5A FRONT AXLE (4WD) …………………………………………………………………………………………………………………………… 6A REAR AXLE AND BRAKES …………………………………………………………………………………………………………………. 7A HYDROSTATIC STEERING …………………………………………………………………………………………………………………. 8A HYDRAULIC SYSTEM …………………………………………………………………………………………………………………………. 9A ELECTRICAL SYSTEM …………………………………………………………………………………………………………………….. 10A PTO Clutch The PTO is driven thru a wet multi-disced, hydraulically operated clutch pack. For the PTO to work, the mechanical PTO lever on the LH side of the tractor must be engaged and the on/off switch on the console must be in the "ON" position. When the switch is in the "ON" position, the PTO valve is energized allowing oil pressure to clamp the discs in the PTO clutch pack together and turn the PTO shaft. Oil Supply to PTO Clutch Pack Oil is transferred from the main hydraulic pump to a reducing valve. The reducing valve acts as a flow divider, dividing the flow of oil to a primary and secondary circuit. Oil for the PTO clutch pack is supplied by the secondary circuit of the reducing valve. The reducing valve also maintains line pressure to the secondary circuit to operate the PTO clutch pack. Refer to the HYDRAULIC section for more information on the reducing valve.
