Massey Ferguson 1433V, 1440V Tractor Service Manual Workshop Guide

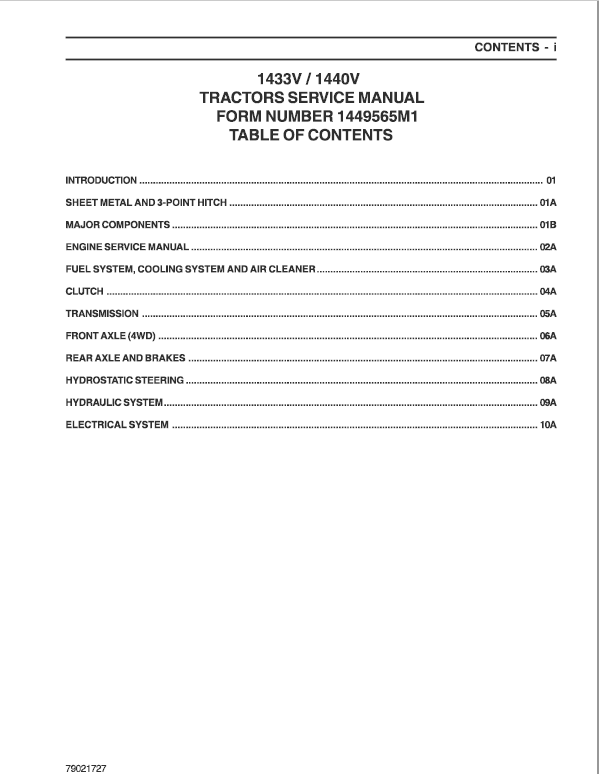

Massey Ferguson 1433V, 1440V Tractors Workshop Manual – 294 Pages Format PDF Type: Workshop Manual Publication No: 1449565M1 Description Massey Ferguson 1433V, 1440V Tractor Manual Model: Tractor 1433V, 1440V Format PDF Type: Workshop Manual Publication No: 1449565M1 Massey Ferguson 1433V, 1440V Tractors Workshop Manual – 294 Pages Manual Table of Content INTRODUCTION ………………………………………………………………… 01 SHEET METAL AND 3-POINT HITCH………………………………….. 01A MAJOR COMPONENTS ………………………………………………………. 01 B ENGINE SERVICE MANUAL ……………………………………………….. 02A FUEL SYSTEM, COOLING SYSTEM AND AIR CLEANER ………. 03A CLUTCH ……………………………………………………………………………… 04A TRANSMISSION …………………………………………………………………. 05A FRONT AXLE (4WD) …………………………………………………………… 06A REAR AXLE AND BRAKES …………………………………………………… 07A HYDROSTATIC STEERING ………………………………………………….. 08A HYDRAULIC SYSTEM ………………………………………………………….. 09A ELECTRICAL SYSTEM …………………………………………………………. 10A Manual Extract – Air cleaning System Unfiltered air contains many particles harmful to the engine such as dust, sand, or other foreign matter. When such foreign matter have entered into the engine, they are mixed into the lubricant and promote wear of the lubrication parts in addition to damaging the piston cylinders. To eliminate these harmful particles, an air cleaner has been installed. The air cleaner which is installed on MF tractors is a dual, dry, cyclone type, and is constructed as shown in the following figure. The inner element, 6, is installed as added protection. If outer element should rupture and allow dust to pass through, the inner filter will catch the dust and protect the engine. Do not clean the inner filter. Replace it if dirty. Under the influence of suction generated by the engine, unfiltered air flows through air inlet tube, 4, and is forced into a high-speed centrifugal motion. By this circulating action most of the dust and dirt particles are separated from the air and collected in the dust unloading valve, 3,. The remaining dust is removed as the air flows through the paper element, 1, before being drawn into the engine. Air cleaner component list: 1 Paper element 2. Seal 3. Dust unloading valve 4. Air inlet 5. Air outlet 6. Element
