Massey Ferguson 1635, 1643 Compact Tractor Manual Workshop Guide

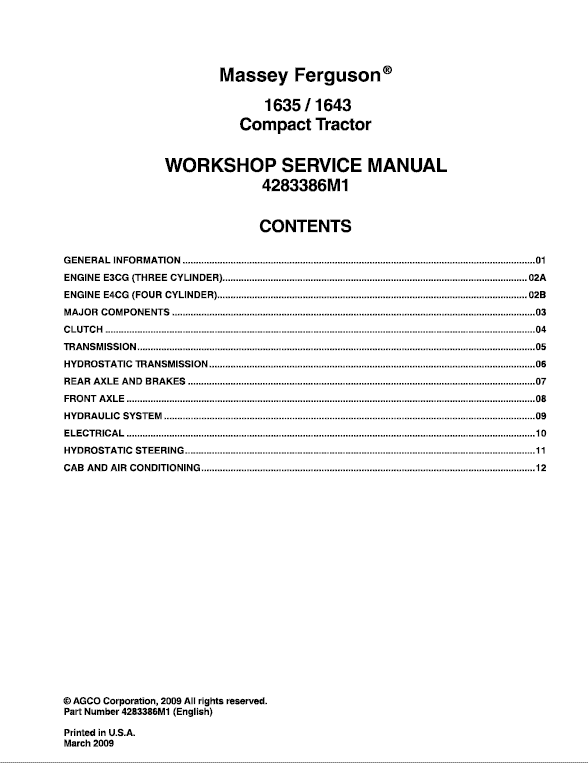

Massey Ferguson 1635, 1643 Tractors Workshop Manual – 859 Pages Parts Catalog – 170 Pages Format PDF Type: Workshop Manual Publication No: 4283386M1 Description Massey Ferguson 1635, 1643 Tractor Manual Model: Tractor 1635, 1643 Format PDF Type: Workshop Manual Publication No: 4283386M1 Massey Ferguson 1635, 1643 Tractors Workshop Manual – 859 Pages Parts Catalog – 170 Pages Manual Table of Content GENERAL INFORMATION ENGINE E3CG (THREE CYLINDER) ENGINE E4CG (FOUR CYLINDER) MAJOR COMPONENTS CLUTCH TRANSMISSION HYDROSTATIC TRANSMISSION REAR AXLE AND BRAKES FRONT AXLE HYDRAULIC SYSTEM ELECTRICAL HYDROSTATIC STEERING CAB AND AIR CONDITIONING Manual Extract – Inspection of Cylinder Block Inspection of Cylinder Block, Crankshaft, Camshaft, and Tappets Inspection of the cylinder block for damage. Check for damage visually. Use COLOR CHECK if necessary to check for cracks and other damage. Repair damage if possible or replace. Inspect the cylinder block top surface for flatness. Check top surface for distortion with a straight rule and thickness gauges in diagonal ways as shown. If distortion exceeds the usable limit, correct on a surface grinder. But the ground-down limit is 0.4 mm (0.016 in). A cylinder block which cannot be corrected within the ground-down limit should be replaced with a new one. Standard Value 0.08 – 0.003 mm (0.0004 – 0.002 in) or less Ground Down Limit 0.4 mm (0.016 in)
