Massey Ferguson 3095, 3115, 3120, 3125, 3140 Tractor Service Manual

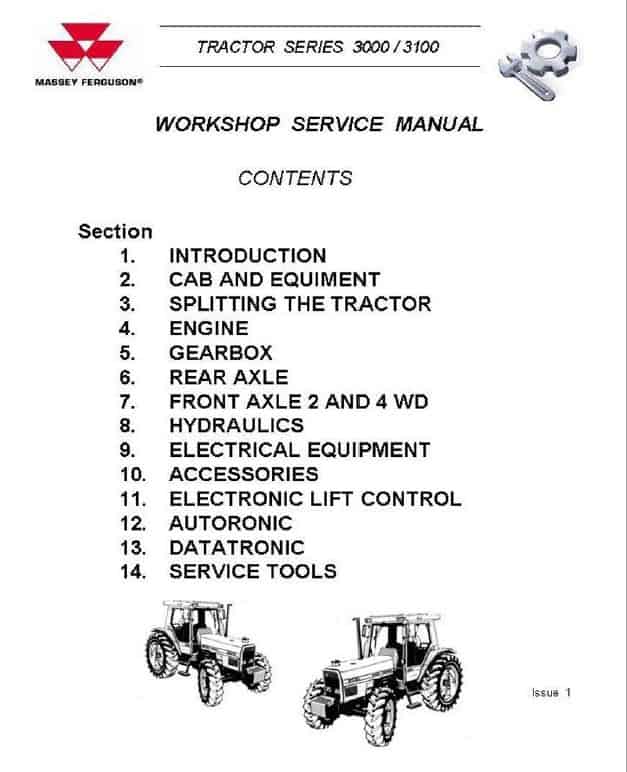

Massey Ferguson 3095, 3115, 3120, 3125, 3140 Tractors Workshop Manual – 616 Pages Format PDF English Description Massey Ferguson 3095, 3115, 3120, 3125, 3140 Tractor Manual Model: Tractor 3095, 3115, 3120, 3125, 3140 Format PDF English Massey Ferguson 3095, 3115, 3120, 3125, 3140 Tractors Workshop Manual – 616 Pages Manual Table of Content INTRODUCTION CAB AND EQUIPMENT SPLITTING THE TRACTOR ENGINE GEARBOX REAR AXLE FRONT AXLE 2 AND 4 HYDRAULICS ELECTRICAL EQUIPMENT ACCESSORIES ELECTRONIC LIFT CONTROL AUTORONIC DATATRONIC SERVICE TOOLS Manual Extract – The input gearbox is in the form of an interchangeable module fitted at the input end of the gearbox. It is made up of two quite separate parts: the speedshift (if fitted) and the reversing mechanism. The speedshift : This is an independant device which allows the input speed to the main gearbox to be doubled. It is situated at the front of the input gearbox and consists of a hydraulic clutch coupled to epicyclic reduction gearing. For operation see Section 5 E02. Reverse shuttle: This is housed in the enclosure at the rear of the in put gearbox and consists a set of two gears operated via a synchromesh mechanism. Paired idler gears allow the direction of rotation to be reversed.
