Massey Ferguson 3610, 3630, 3650, 3655 Tractor Service Manual

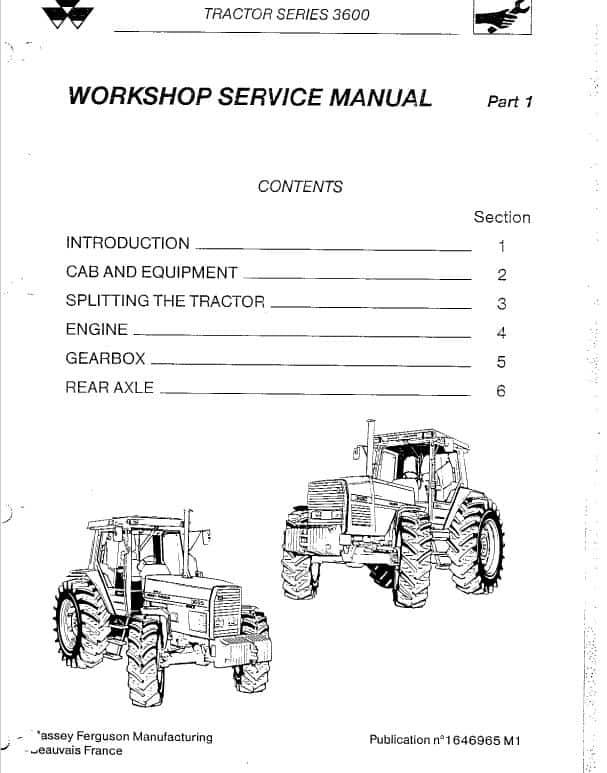

Massey Ferguson 3610, 3630, 3650, 3655 Tractors Workshop Manual – 716 Pages Format PDF English Description Massey Ferguson 3610, 3630, 3650, 3655 Manual Model: Tractor 3610, 3630, 3650, 3655 Format PDF English Massey Ferguson 3610, 3630, 3650, 3655 Tractors Workshop Manual – 716 Pages Manual Table of Content Introduction Cab and Equipment Splitting the Tractor Engine Gearbox Rear Axle Manual Extract Uncoupling- 1. Disconnect the two 4WD front axle control hoses. Plug the pipe connections. 2. Remove the guard and the 4WD transmission shaft. 3. Remove the sheet metal panels. Disconnect the earth cables only from the batteries. 4. Disconnect and mark the positions of hoses and flexible connections, as follows: – the two Orbitrol steering hoses, – the hose from the cooler on the hydraulic bar above the engine, – the hose from the left-hand side cover towards the cooler, – the harness connecting the vacuum tester, the 7.5 A and 10 A fuses and the red wire to the positive terminals of the batteries, – the positive cable on the starter, – the inlet sleeve between the turbocharger and the air filter, – the suction pipe between the air filter and the exhaust pipe. 5. Drain the cooling system. Disconnect the lower and upper hoses from the radiator. 6. Remove the upper attachment on the radiator. 7. Remove the air conditioning compressor and bracket assembly and tilt it forwards with its two hoses (according to option fitted). 8. Remove the front earth connections. 9. Immobilise the tractor. Carry out procedure 6, section 3 B01. 10. Loosen the bolts attaching the engine to the front frame. 11. Support the tractor under the frame using a trolley jack and separate the engine from the frame (Fig. 1 ).
