Massey Ferguson 5708, 5709, 5710, 5711 Tractor Service Manual Workshop Guide

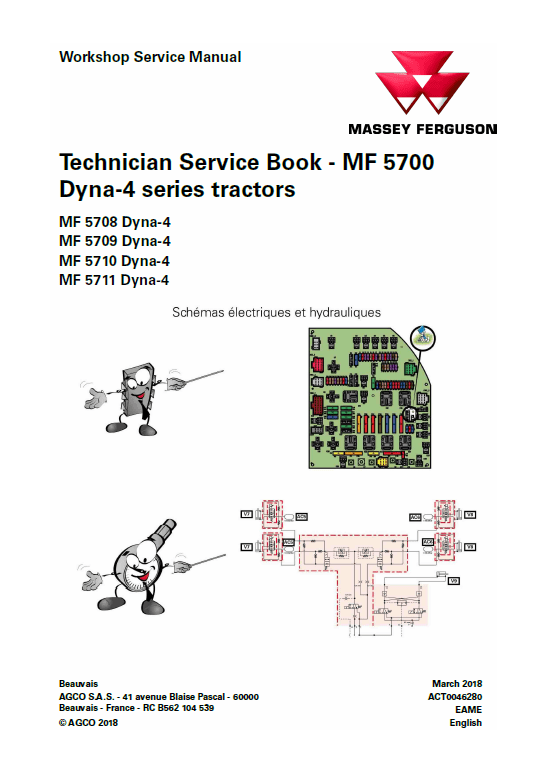

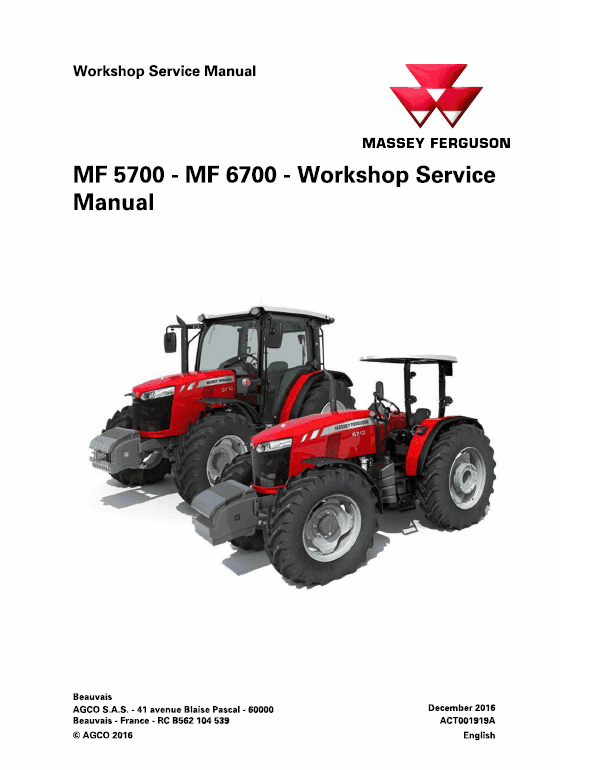

Massey Ferguson 5708, 5709, 5710, 5711 Tractors Workshop Manual – 1533 Pages Technician Service Book – MF 5700 Dyna-4 series tractors – 194 Pages Parts Catalog – 474 Pages Format: PDF Language: English Publication No: ACT001919A Description Massey Ferguson 5708, 5709, 5710, 5711 Tractor Manual Model: Massey Ferguson MF 5700 Series Tractor Format: PDF Language: English Publication No: ACT001919A Massey Ferguson 5708, 5709, 5710, 5711 Tractors Workshop Manual – 1533 Pages Technician Service Book – MF 5700 Dyna-4 series tractors – 194 Pages Parts Catalog – 474 Pages Manual Table of Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Separation of assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 2 Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Power take-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  . . 7 Front axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Electricity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 11 Operator environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 12 Removing cylinder head Procedure 1. Disconnect current from the main switch. 2. Clean the engine externally and drain the coolant. Disconnect the coolant hoses from the cylinder head and the thermostat housing. 3. Remove the suction hoses between the turbocharger and the air filter and between the turbocharger and the inlet manifold. 4. Disconnect the turbocharger pressure and return oil pipes. 5. Remove the valve cover. 6. Disconnect the wires from the intake air heater and injectors. 7. Remove the injector leak-off fuel pipe and the high-pressure pipes. Remove the injectors. Fit blanking-off caps on all open connections. WARNING: Do not make any work at the common rail high pressure fuel system when the engine is running. Wait at least 30 seconds after stopping the engine. The first high pressure component has to be loosened slowly, so that the pressure inside the fuel system can adjust to ambient pressure.If the jet of high pressure fuel contacts your skin, fuel penetrates the skin causing severe injuries. Get medical help immediately! 8. Remove the inlet and exhaust manifolds and the thermostat housing. NOTE: It is possible to remove the cylinder head even though these parts are attached to the head. 9. Remove the rocker arm mechanism and the push rods. 10. Loosen all the cylinder head bolts first by a 1/4 turn, then loosen them fully and remove. Remove the cylinder head.
