Massey Ferguson 630, 650, 660, 680 Tractor Service Manual Workshop Guide

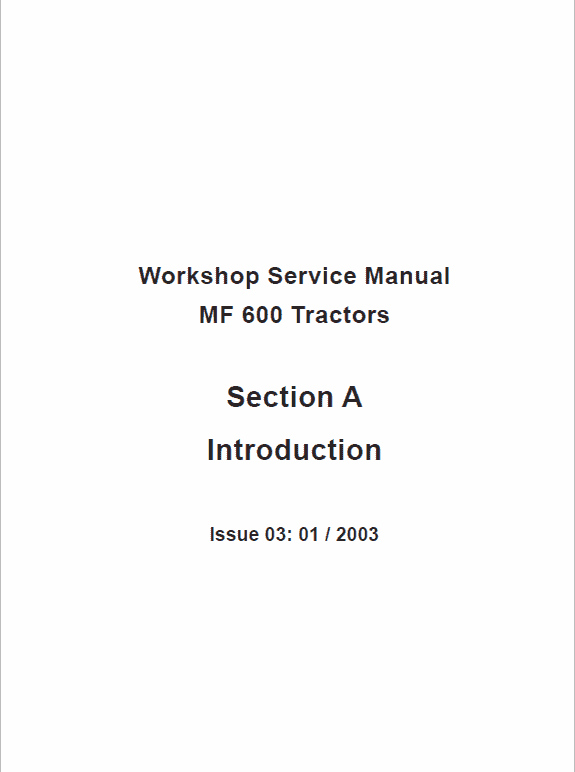

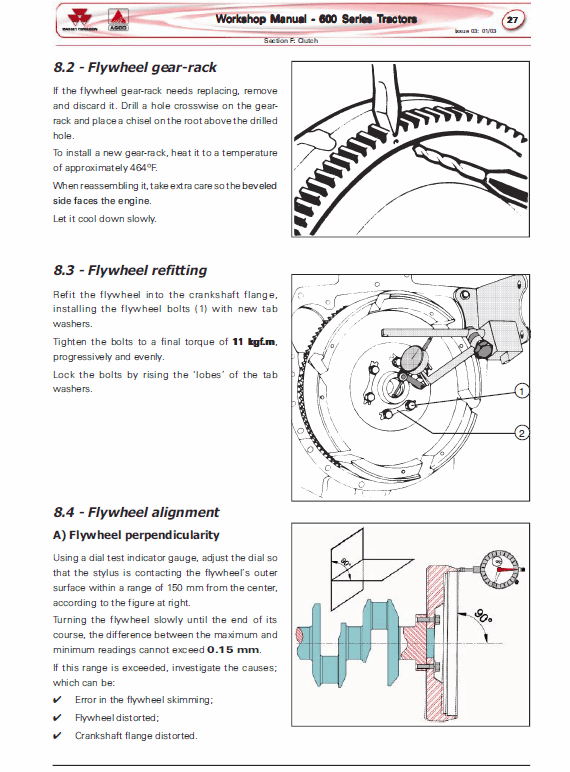

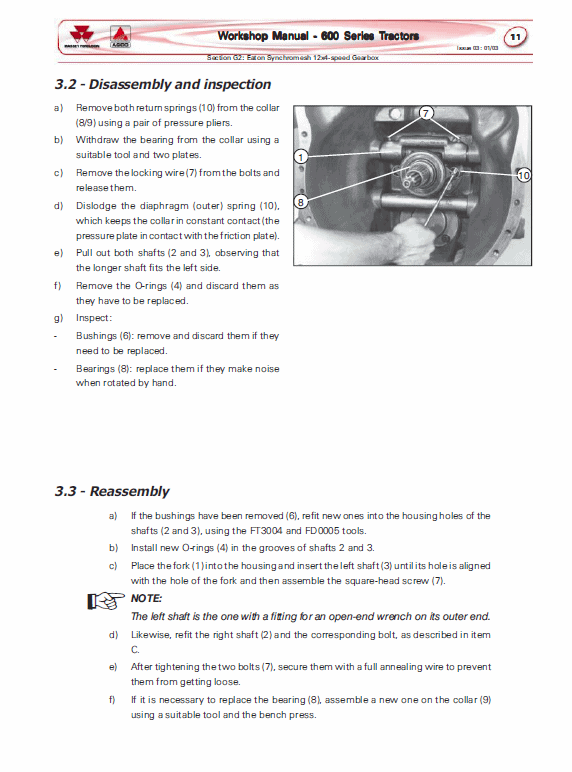

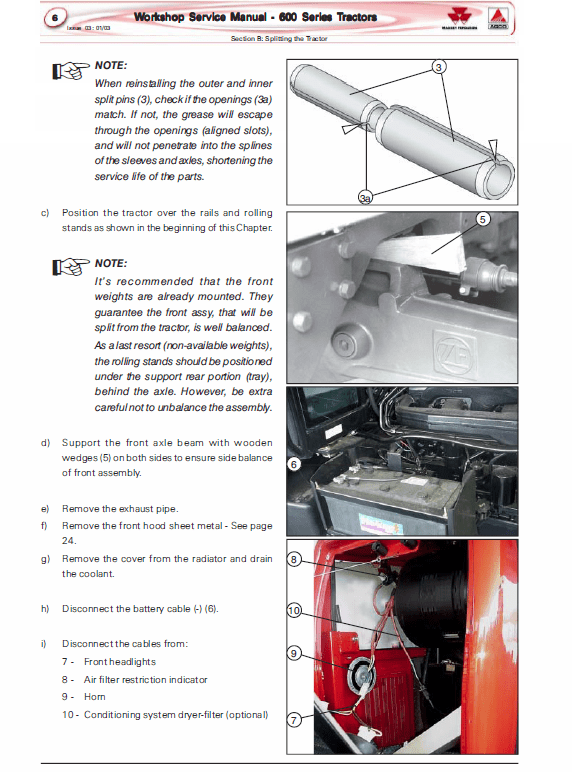

Massey Ferguson 630, 650, 660, 680 Tractors Workshop Manual – 703 Pages Model: Tractor 630, 650, 660, 680 Format PDF English Description Massey Ferguson 630, 650, 660, 680 Manual Model: Tractor 630, 650, 660, 680 Format PDF English Massey Ferguson 630, 650, 660, 680 Tractors Workshop Manual – 703 Pages Manual Table of Content A …….. Introduction B ………. Splitting the Tractor C ……….Reserved D1…….. Carraro 4WD front axle: Ca 20.18, 20.21 and 20.29 D2*…… ZF 4WD front axle: APL 345, 350 and 359 * NOTE: It includes the primary drive box of the MF 630 and 650 tractors. This box is presented in Section G3. E ………. Perkins Engines F ……….Clutches G1…….. Constant Mesh type 12×4 gearbox G2…….. Eaton Synchromesh 12×4 gearbox G3…….. 12×5 gearbox – ZF T3500 H ………Rear axle I1……… Ferguson hydraulic lift system I2……… Hydrotronic hydraulic lift system I3………Boschtronic hydraulic lift system J……….. Power take-off: live and independent L ………. Electrical System M ……… Auxiliary Hydraulic System N………. Cab, air conditioning system and heating O………. Tractors' general basic specifications Manual Extract – Reassembly and adjustment o f secondary driving box a) Reverse the disassembly procedure, observing the following:b) Install a new retainer (14) on the cover (12) and then apply Loctite sealant. c) Install the needle roller bearing (20) by using tool FT0081. d) Insert the axle (19) into the lodging. e) Install the lock-ring (18) with its ends facing up (see position in the figure) and then install the bearing (17) on the axle (19). f) Install the rear cover (12) and apply a sealing adhesive on the housing seating surface: Loctite 515 or Three Bond Apply a torque of 8.5 kgf.m to the 4 fastening bolts.
