MERCEDES BENZ C-CLASS W205 M274 (2015-2021) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (
3500 PAGES
) AVAILABLE AS DOWNLOADABLE LINK.
Another rarity brought to you by Flamingo Automotive. This is the same service manual your local MB dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. All pages are printable, so run off what you need and take it with you into the garage or workshop.
MODELS COVERED: W205 SEDAN/COUPE/CABRIOLET
ENGINE COVERED: 2.0L M274 T
TRANSMISSION COVERED: 722.6, 722.9 & 724.2
CONTENTS OF THIS MANUAL:
1/ ENGINE & SYSTEMS

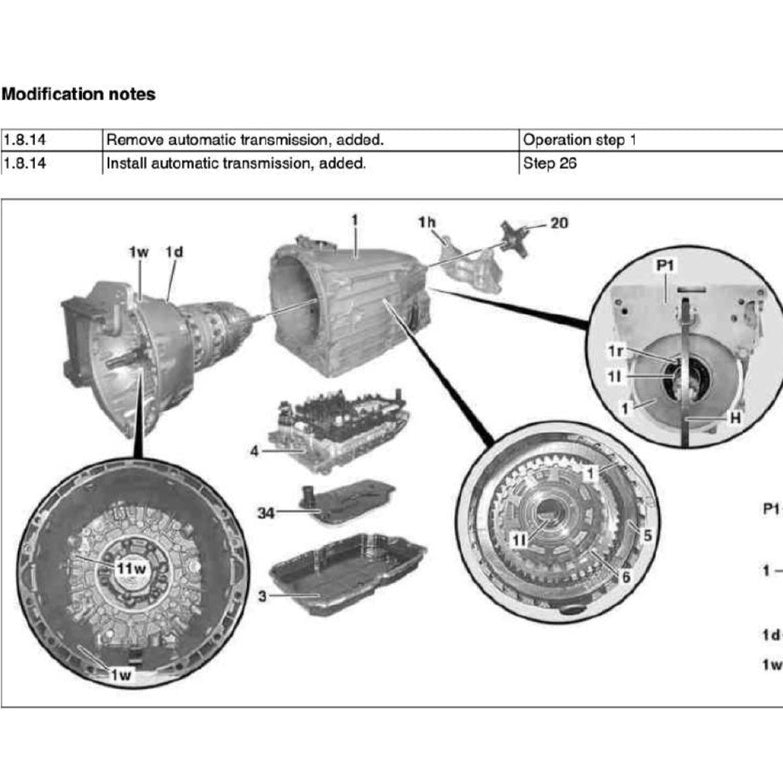

2/ AUTOMATIC TRANSMISSION

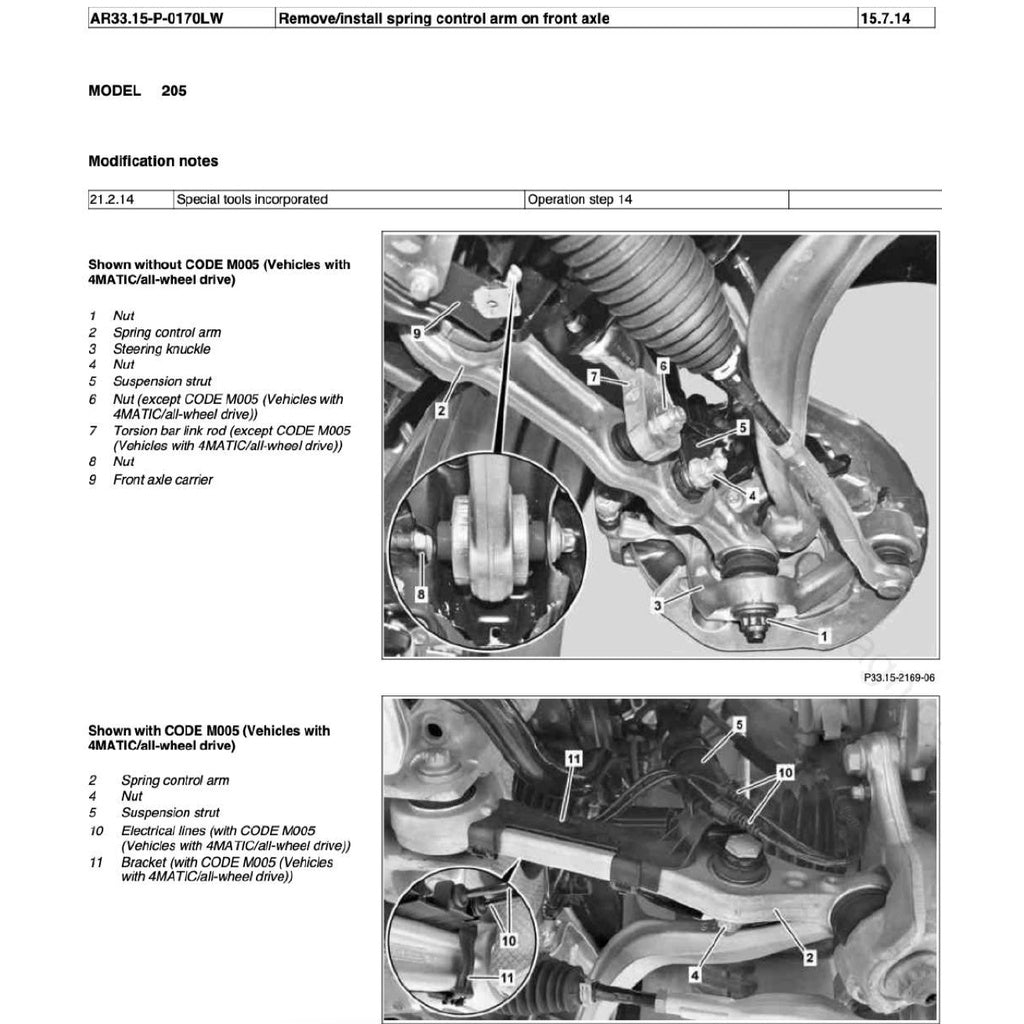

3/ RUNNING GEARS - AXLES/SUSPENSION/STEERING/BRAKES
4/ BODYWORK - INTERIOR/EXTERIOR/ BODY ELECTRICAL/ BODY REPAIR
5/ SYSTEMS WIRING DIAGRAMS
POWERTRAIN W205
Engine
Petrol:
1.5 L M264 turbo I4
1.6 L M270 turbo I4
2.0 L M266 turbo I4
2.0 L M264 turbo I4
2.0 L M274 turbo I4
3.0 L M276 DELA 30 biturbo V6
4.0 L M177 (Mercedes-AMG) Twin-turbo V8
Diesel::
2.1 L OM651 turbo I4 & Bluetec Hybrid
1.6 L OM626 turbo I4 & Bluetec (2014–2018)
1.6 L OM654 turbo I4 (2018–present)
2.0 L OM654 turbo I4
Transmission
7-speed 7G-TRONIC PLUS automatic (2014–2018)
9-speed 9G-TRONIC PLUS automatic
