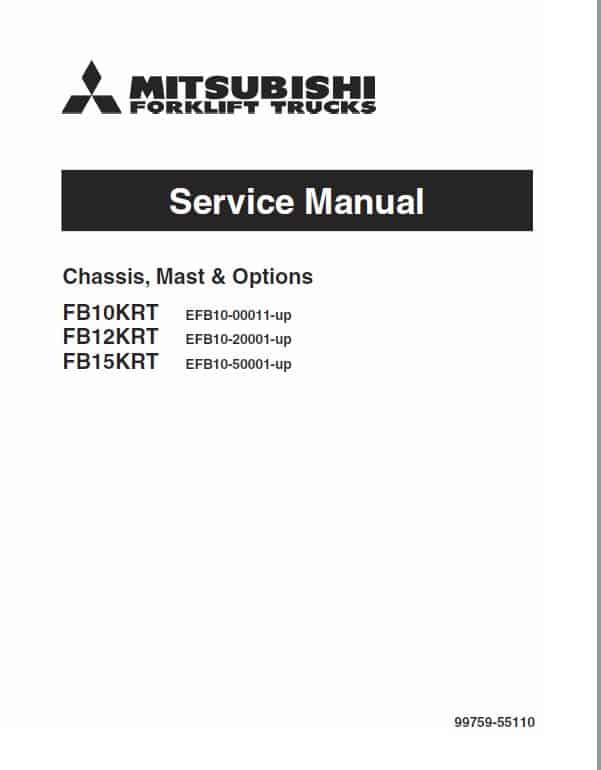

Mitsubishi FB10KRT, FB12KRT, FB15KRT Forklift Lift Truck Service Manual

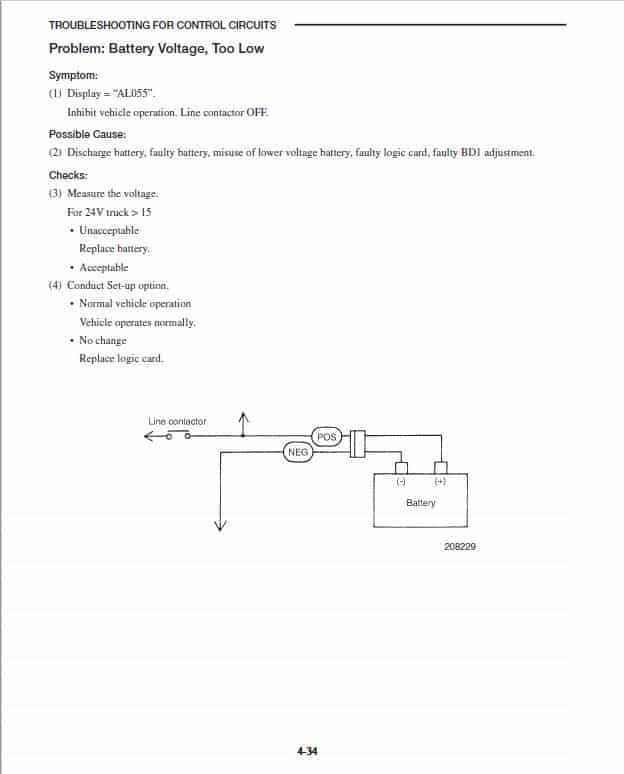

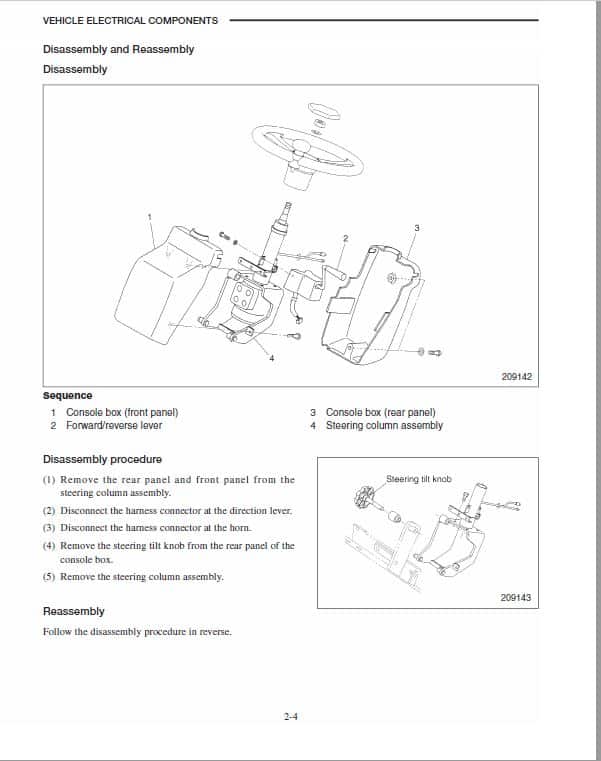

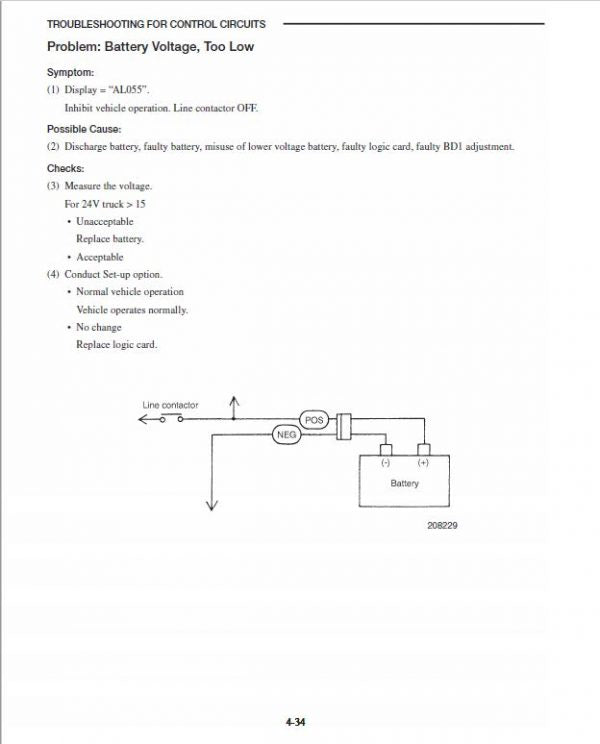

Mitsubishi FB10KRT, FB12KRT, FB15KRT Forklift  Service Manual: 368 Pages Publication 99759-55110 English Format: PDF Description Mitsubishi FB10KRT, FB12KRT, FB15KRT Lift Truck Manual Lift Truck Forklift Model : FB10KRT, FB12KRT, FB15KRT Publication 99759-55110 English Format: PDF Mitsubishi FB10KRT, FB12KRT, FB15KRT Forklift  Service Manual: 368 Pages Forklift Manual Table of Content: GENERAL INFORMATION VEHICLE ELECTRICAL COMPONENTS MAIN CONTROLLER TROUBLESHOOTING FOR CONTROL CIRCUITS MOTORS FRONT AXLE REAR AXLE BRAKE SYSTEM STEERING SYSTEM HYDRAULIC SYSTEM MASTS AND FORKS SERVICE DATA OPTIONS This service manual is a guide to servicing of Mitsubishi forklift trucks of 1.0 ton, 1.25 ton and 1.5 ton (FB10KRT, FB12KRT, FB15KRT) models. The instructions are grouped by systems to serve the convenience of your ready reference. Do not operate this truck unless you have read and understand the instructions in the SERVICE MANUAL. The hydraulic pump is a gear pump, driven by a pump motor. The drive gear 2 is splined to the armature shaft of the pump motor. With a high-pressure gear pump, oil tends to leak from the high-pressure side to the low-pressure side through clearances at the ends of each pump gear (internal oil leakage). This leakage reduces pumping efficiency (or pump's volumetric efficiency). In order to prevent the internal oil leakage, this hydraulic pump is designed to direct a portion of pump delivery oil to the back of the bushings 4 and 5. The oil pushes the bushings against the ends of the gears 2 and 3, thus minimizing the clearances between the gears and bushings (see the drawing above). This design can ensure high pumping efficiency for an extended period of time by making up for the clearances as the bushings and gears wear.
