Mitsubishi FB13PNT, FB15PNT, FB16PNT, FB16CPNT Forklift Service Manual

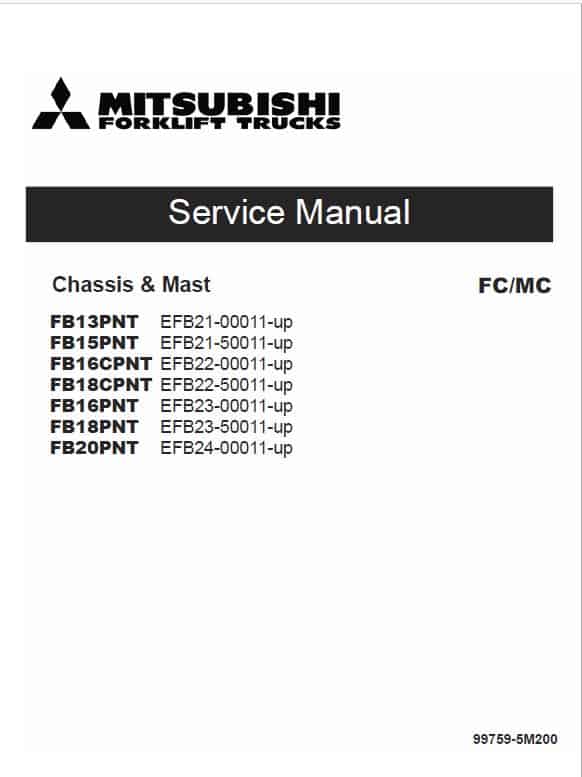

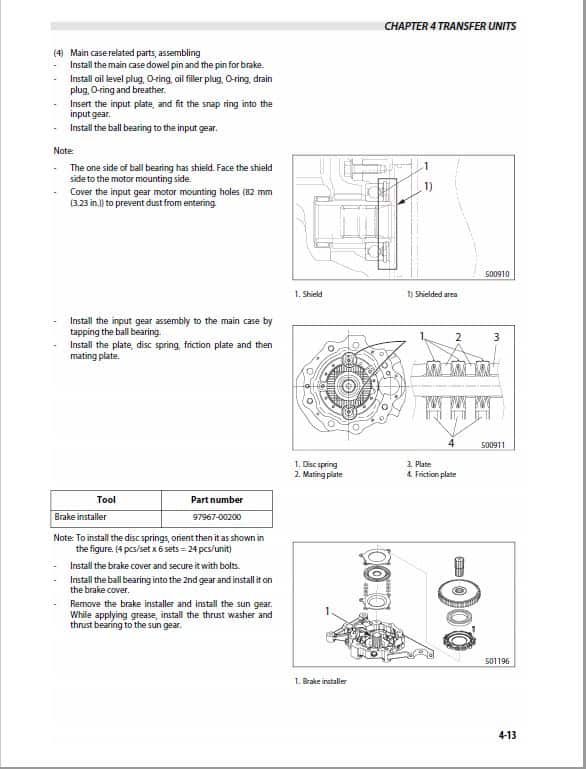

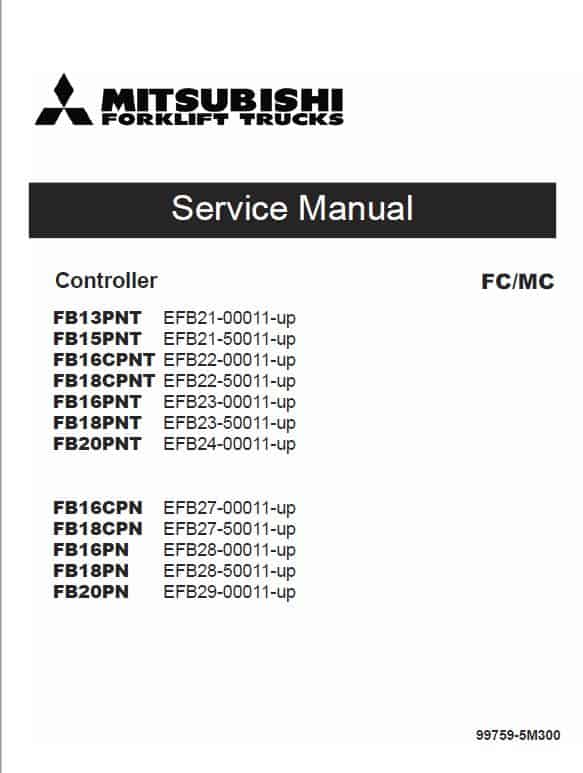

Mitsubishi FB13PNT, FB15PNT, FB16PNT, FB16CPNT Forklift  Service Manual: 294 Pages Controller Manual: 292 Pages Publication 99759-5M200 English Format: PDF Description Mitsubishi FB13PNT, FB15PNT, FB16PNT, FB16CPNT Lift Truck Manual Lift Truck Forklift Model : FB13PNT, FB15PNT, FB16PNT, FB16CPNT Publication 99759-5M200 English Format: PDF Mitsubishi FB13PNT, FB15PNT, FB16PNT, FB16CPNT Forklift  Service Manual: 294 Pages Controller Manual: 292 Pages Forklift Manual Table of Content: General Information Front Axle & Reduction Differential Transfer Assembly Rear Axle Brake System Steering System Hydraulic System Mast and Forks Service Data Panel Cabin This service manual deals with all components or systems of the Mitsubishi Forklift Trucks, except for the electrical system, which is covered in a Controller manual The descriptions, illustrations and specifications contained in this manual are for forklift trucks with serial numbers in effect at the time of printing. Brake related parts, assembling – Keep the transfer assembly lying on its side and install it to the brake assembly. (Right and left differ in shape.) – Insert the pin and O-ring, and while holding the brake lever with the pin, secure the clevis pin and split pin. – Loosen the nut. – Move the brake lever to the arrow direction 1) by hand to bring the brake plates in close contact with each other. (Required force: approx. 98 N (10 kgf) [22.03 lbf]) – Tighten the adjusting bolt unit it comes into contact with the case by hand. – Tighten the nut by hand. – If the dimension 2) is 8 mm (0.32 in.) or less, replace, friction plates. – From the above position, loosen the adjusting bolt one turn. – Tighten the nut to secure the adjusting bolt in that position. (Tightening torque: 6.9 ± 1.4 N·m (0.7 ± 0.14 kgf·m) [5.09 ± 1.03 lbf·ft])
