Mitsubishi FB18PNT, FB18CPNT, FB20PNT Forklift Service Manual

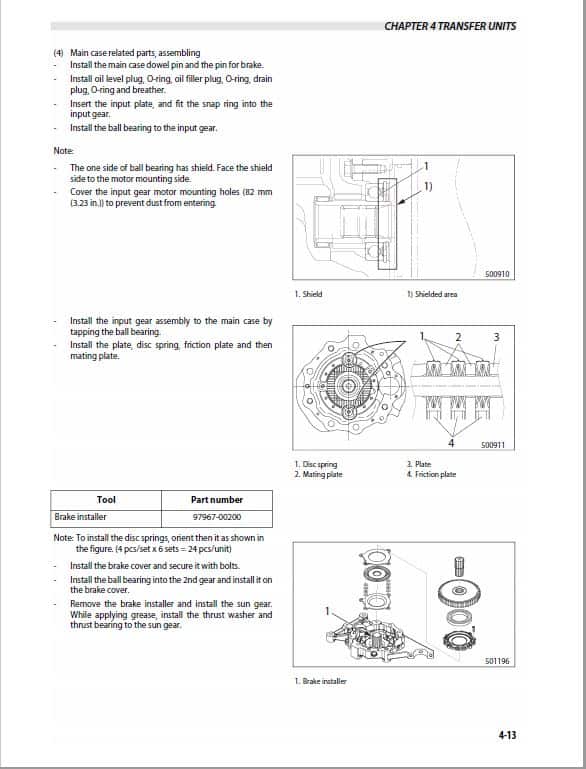

Mitsubishi FB18PNT, FB18CPNT, FB20PNT Forklift  Service Manual: 294 Pages Controller Manual: 292 Pages English Format: PDF Description Mitsubishi FB18PNT, FB18CPNT, FB20PNT Lift Truck Manual Lift Truck Forklift Model : FB18PNT, FB18CPNT, FB20PNT English Format: PDF Mitsubishi FB18PNT, FB18CPNT, FB20PNT Forklift  Service Manual: 294 Pages Controller Manual: 292 Pages Forklift Manual Table of Content: General Information Front Axle & Reduction Differential Transfer Assembly Rear Axle Brake System Steering System Hydraulic System Mast and Forks Service Data Panel Cabin Inspecting Transfer Units (1) Check the gear teeth and splines for damage and wear. (2) Check the bearing for damage, wear, rotational resistance and abnormal noise. (3) Check the main case and cover for cracks and other damage. (4) Check the oil seal and retainer for damage on the contact face. (5) Replace the oil seal and O-ring with new ones if damage is found during removal. (6) Checking friction and mating plates – Check the friction plate for seizure, local contact, deflection, or other damage. – Check the mating plate for heat spots (scattered black burn spots). – Check the inner teeth for wear and damage. – Measure the thickness of each plate. Note: If any of above is found in any one of plates, replace all of the plates. Item Standard Limit Friction plate 2.6 ± 0.1 mm (0.102 ± 0.004 in.) 2.3 mm (0.0906 in.) Mating plate 2 ± 0.1 mm (0.08 ± 0.004 in.) 1.8 mm (0.0709 in.)
