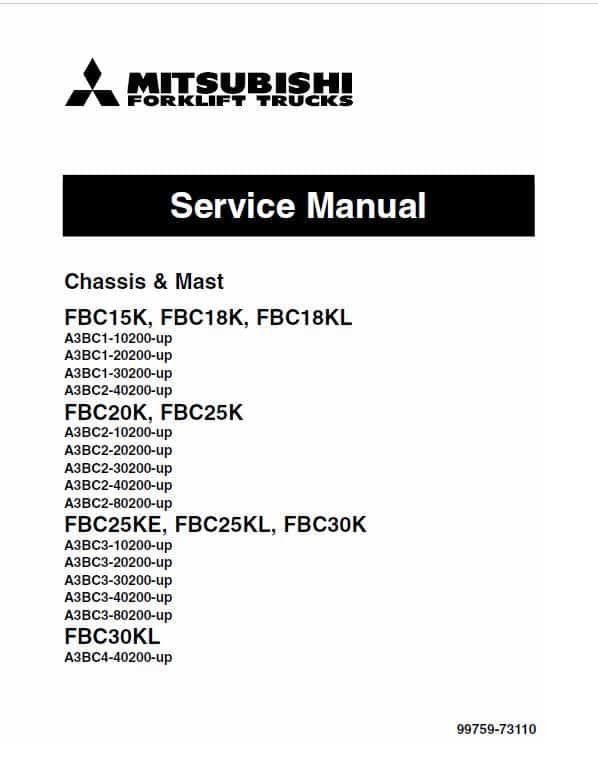

Mitsubishi FBC15K, FBC18K, FBC18KL Forklift Lift Truck Service Manual

Mitsubishi FBC15K, FBC18K, FBC18KL Forklift  Service Manual: 230 Pages Controller Manual: 154 Pages Publication 99759-74120 English Format: PDF Description Mitsubishi FBC15K, FBC18K, FBC18KL Lift Truck Manual Lift Truck Forklift Model : FBC15K, FBC18K, FBC18KL Publication 99759-74120 English Format: PDF Mitsubishi FBC15K, FBC18K, FBC18KL Forklift  Service Manual: 230 Pages Controller Manual: 154 Pages Forklift Manual Table of Content: General Information Front Axle & Reduction Differential Transfer Assembly Rear Axle Brake System Steering System Hydraulic System Mast and Forks Troubleshooting Section Maintenance Service Data This service manual deals with all components or systems of the Mitsubishi Forklift Trucks, except for the electrical system, which is covered in a Controller manual Tie Rods and Pins Kingpins Check the kingpins for any surface flaws such as grooving or stepped wear. Inspect the pins for cracks at the bearing shoulder. Kingpin Bearings Examine the rollers and bearing races for grooving, abrasive wear, pitting, bruising, or corrosion. Replace both the cup and cone of damaged bearings. Knuckles Inspect the inside of each knuckle for wear or damage. Be sure to examine for casting cracks. Check the tie rod pin hole. Examine the wheel nut threads for damage. Cylinder Rod Examine the rod for surface or plating damage. Inspect the rod for straightness. Examine the piston for damage. Check the tie rod pin hole for damage or wear. Seals and O-rings Examine all seals and O-rings for damage such as cuts and tears. Replace seals which show signs of aging. Hydraulic Pipes Inspect the hydraulic pipes for cracks, especially at the joints with the end fittings. Check for leaks. Tires Check the height of the solid rubber portion and, if worn down to 25.4 mm (1 in.), replace the tire.
