MITSUBISHI LANCER SPORTBACK (2010-2012) SERVICE WORKSHOP MANUAL IN PDF FORMAT (
8086 PAGES
) SUPPLIED AS DOWNLOADABLE LINK.
This is the same service manual your local MITSUBISHI dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. All pages are printable, so run off what you need and take it with you into the garage or workshop.
ENGINE FEATURED IN THIS MANUAL: 2.0 L 4B11 I4; 2.0 L 4B11T turbo I4; 2.4 L 4B12 I4
Powertrain
Engine
Gasoline:
1.5 L 4A91 I4
1.6 L 4A92 I4
1.8 L 4B10 I4
1.8 L 4J10 I4
2.0 L 4B11 I4
2.0 L 4B11T turbo I4
2.4 L 4B12 I4
Diesel:
1.8 L 4N13 turbo I4
2.0 L VW BWC turbo I4
Transmission
5/6-speed manual
6-speed Ralliart dual-clutch automatic
4-speed automatic (INVECS-II)

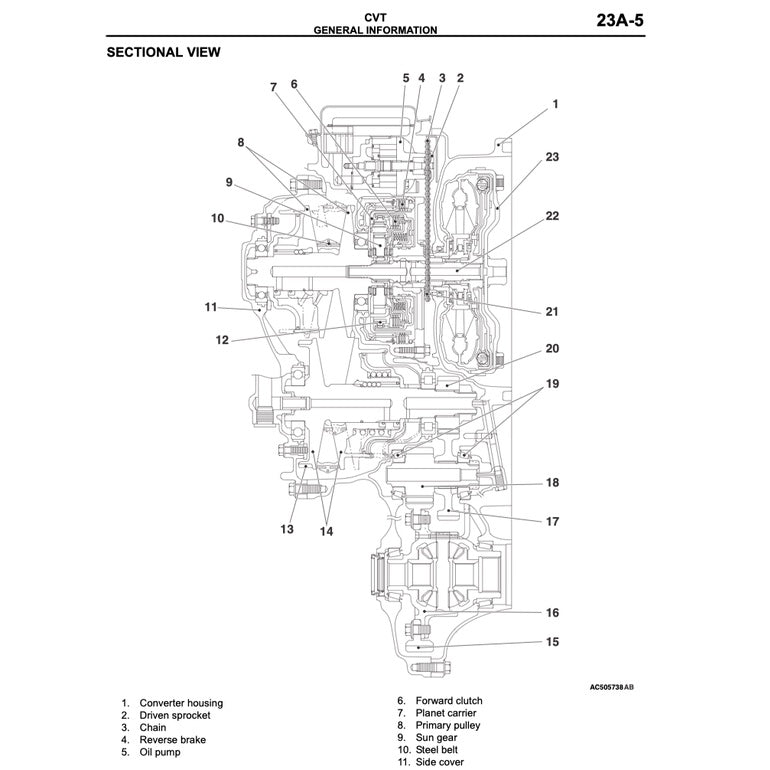

CVT automatic (INVECS-III)
WHAT'S INSIDE ?
Detailed sub-steps expand on repair procedure information
Notes, cautions and warnings throughout each chapter pinpoint critical information.
Numbered instructions guide you through every repair procedure step by step.
Bold figure number help you quickly match illustrations with instructions.

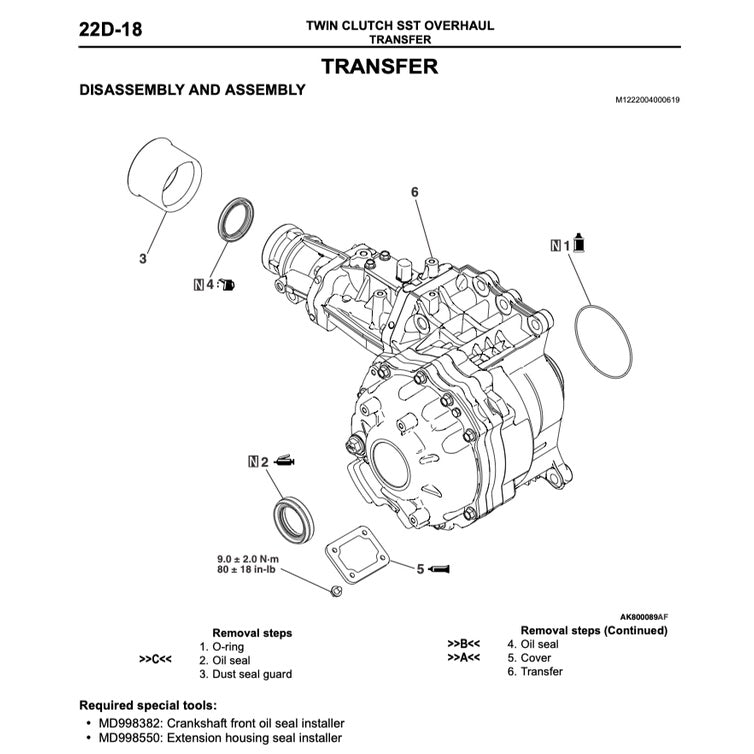

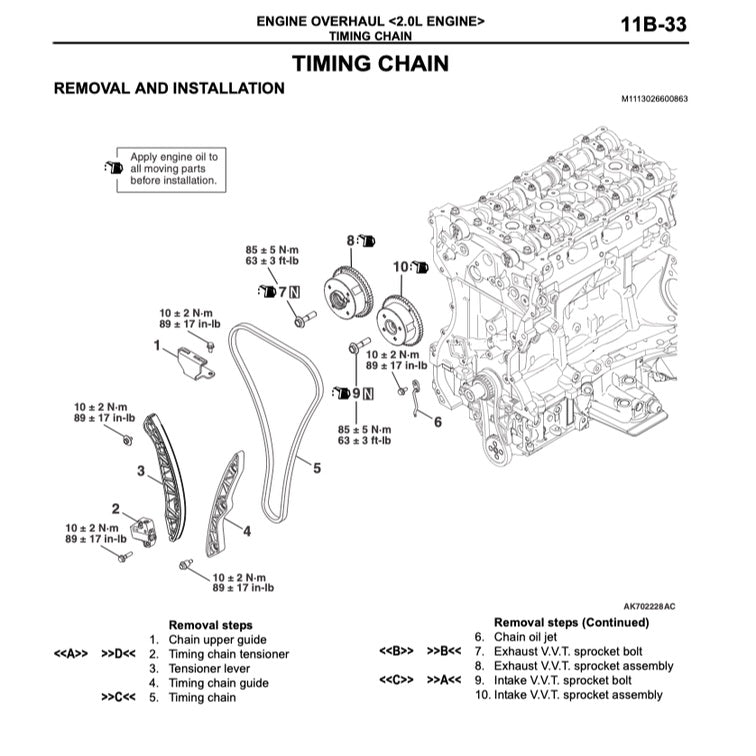

Detailed illustrations, drawings and photos guide you through every procedure.
Enlarged inset helps you identify and examine parts in detail.

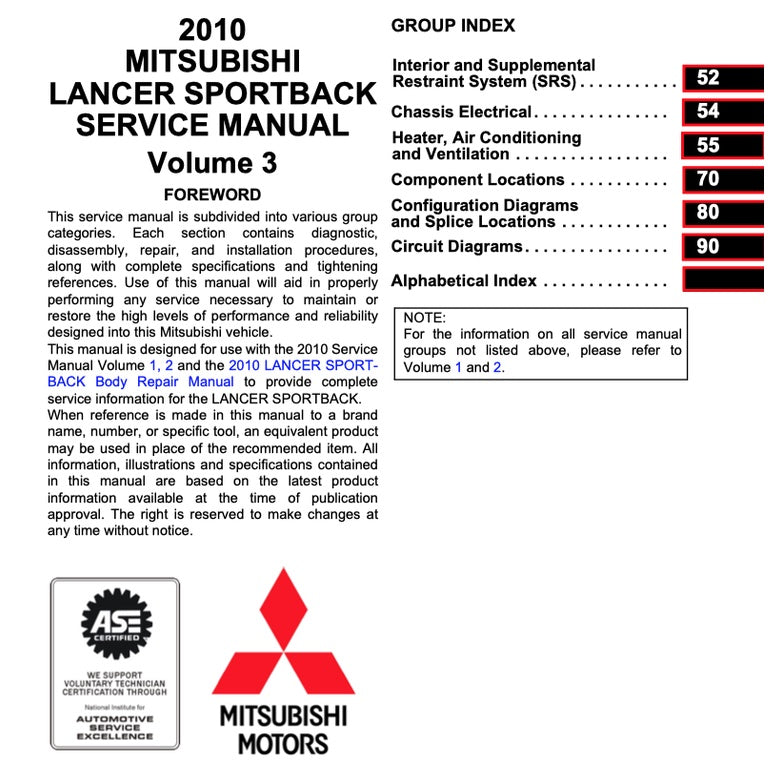

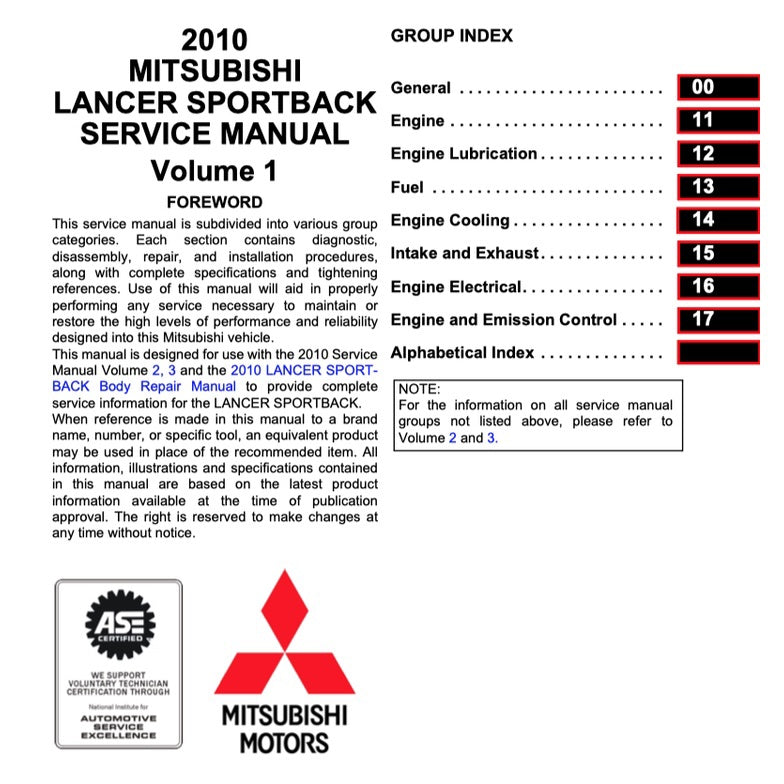

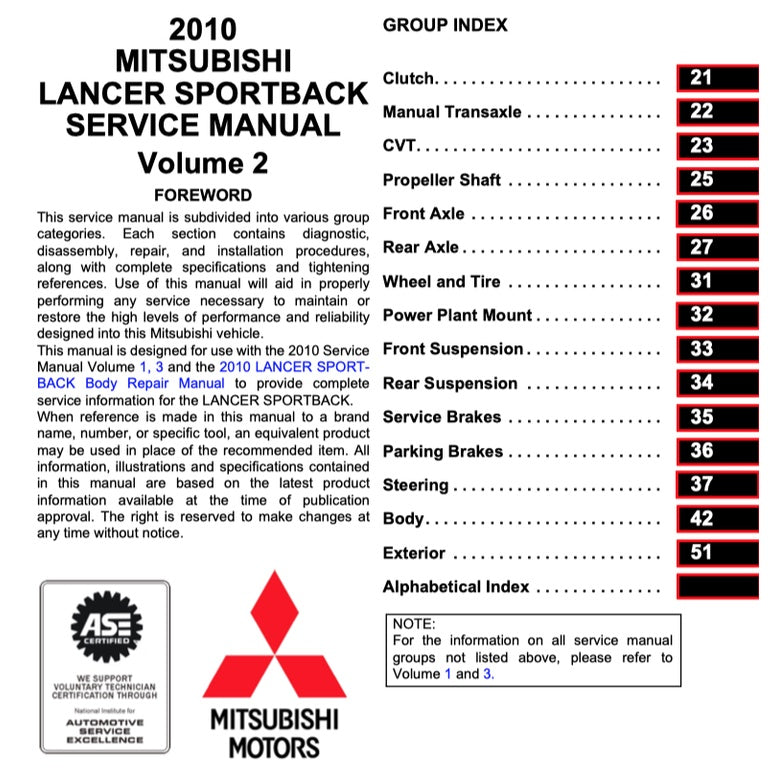

Numbered table of contents easy to use so that you can find the information you need fast.
This manual also makes it easy to diagnose and repair problems with your machines electrical system.

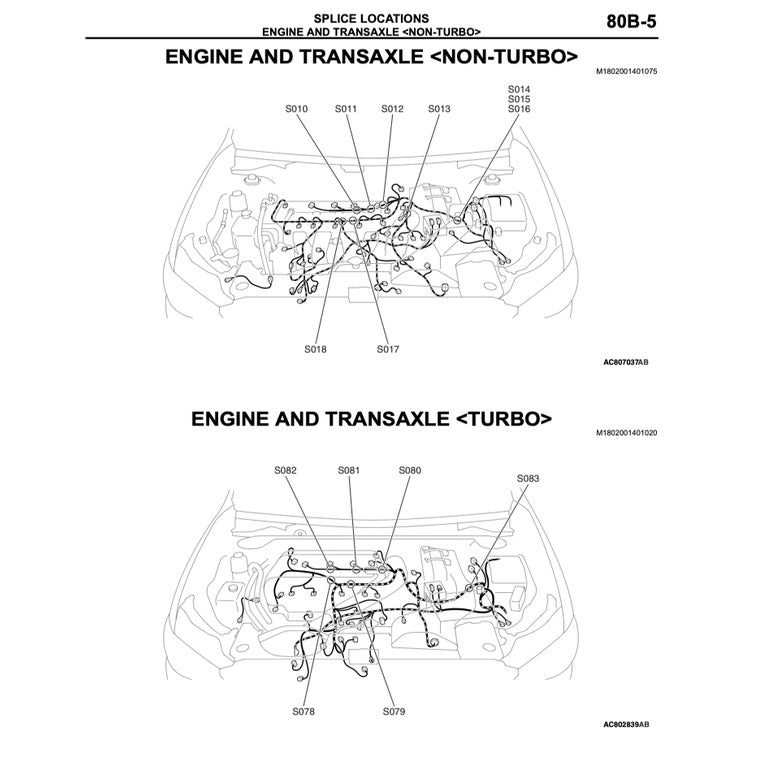

Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
