New Holland 445 M2, 445T M2, 668T M2 Engine Service Manual Workshop Guide

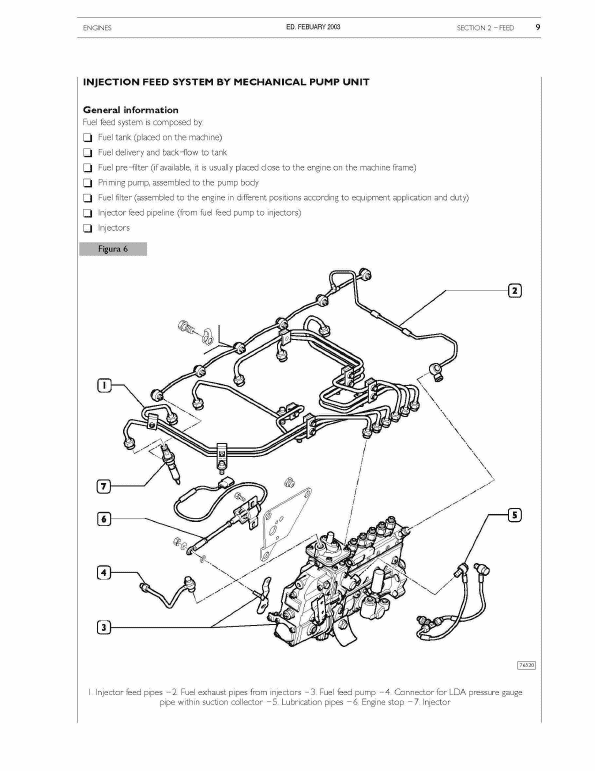

Manual Included: Service Manual: 180 pages Specifications: Brand: New Holland Model: 445 M2, 445T M2, 668T M2 Type: Engine Manuals: Service Manual Publication Numbers: 6-49731 NA (Dec 2003) Language: English Format: PDF Description TABLE OF CONTENTS ( Service Manual) 1. General information ENGINE ID. CODE SPECIFIC ENGINE CODE LUBRICATING CIRCUIT OIL VAPOUR RECIRCULATING SYSTEM COOLING CIRCUIT SYSTEM BOOST FEEDING DIAGRAM 2. Feed INJECTION FEED SYSTEM BY MECHANICAL ROTARY PUMP FEED PUMP PRIMING PUMP FUEL FILTER INJECTION FEED SYSTEM BY MECHANICAL PUMP UNIT FEED PUMP FUEL FILTER 3. Duty − Industrial applications Mechanical injection Engines GENERAL INFORMATION PART ONE − MECHANICAL COMPONENTS OVERHAUL OF ENGINE PROVIDED WITH MECHANICAL ROTARY PUMP OVERHAUL OF ENGINE PROVIDED WITH MECHANICAL INLINE PUMP TIGHTENING TORQUE PART TWO − ELECTRICAL EQUIPMENT ELECTRICAL COMPONENT LAYOUT (4 CYL.ENGINES WITH ROTARY PUMP) ELECTRICAL COMPONENT LAYOUT (6 CYL.ENGINES WITH PUMP UNIT) PART THREE − TROUBLESHOOTING PART FOUR − MAINTENANCE PLANNING MAINTENANCE PROCEDURES −CHECKS AND CONTROLS 4. Overhaul and technical specifications GENERAL SPECIFICATIONS CLEARANCE DATA ENGINE OVERHAUL ENGINE REMOVAL AT THE BENCH REPAIR OPERATIONS CYLINDER UNIT TIMING SYSTEM OUTPUT SHAFT CONNECTING ROD — PISTON ASSEMBLY CYLINDER HEAD VALVE GUIDE VALVE SEATS VALVE SPRINGS FITTING CYLINDER HEAD TIGHTENING TORQUE 5. Equipment 6. Installation guidelines Safety instructions
