New Holland E150BSR Blade Runner Excavator Service Manual Workshop Guide

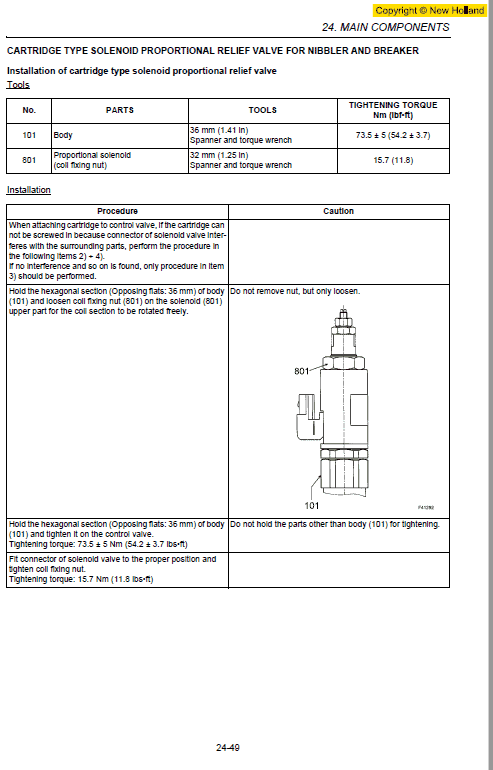

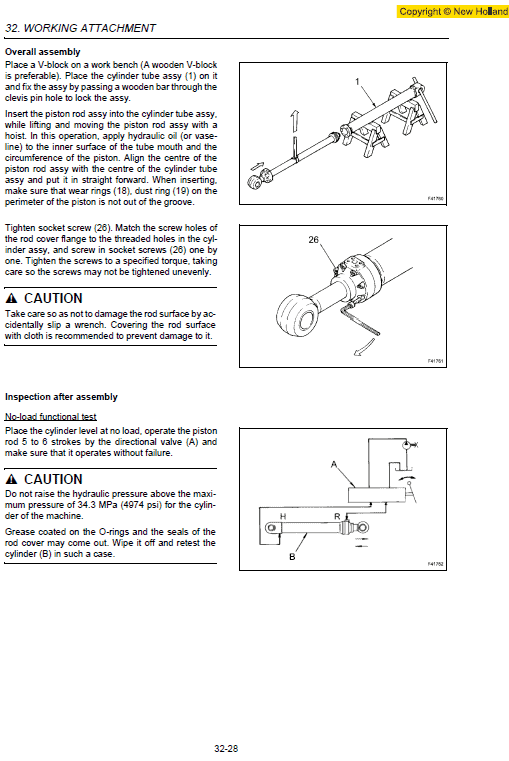

Manual Included: Service Manual: 1016 pages Specifications: Brand: New Holland Model: E150BSR Blade Runner Type: Excavator Manuals: Service Manual Publication Numbers: 87493625A (09/2008) Language: English Format: PDF Description Table of Content (Service Manual) 1 – DESCRIPTION 2 – TECHNICAL SPECIFICATIONS 3 – WORKING ATTACHMENT 11 – TOOLS 12 – TABLE OF STANDARD MAINTENANCE TIMES 13 – MAINTENANCE STANDARDS AND INSPECTION PROCEDURES 21 – MECHATRO CONTROL SYSTEM 22 – HYDRAULIC SYSTEM 23 – ELECTRICAL SYSTEM 24 – MAIN COMPONENTS 25 – AIR CONDITIONER SYSTEM 32 – WORKING ATTACHMENT REMOVAL AND INSTALLATION 33 – UPPER STRUCTURE 34 – TRAVEL SYSTEM 46 – TROUBLESHOOTING – BY ERROR CODES 47 – TROUBLESHOOTING – BY TROUBLE 48 – TROUBLESHOOTING – TROUBLE DIAGNOSIS MODE 51 – ENGINE The New Holland manual is applicable for the model namely : E150BSR It provides important information on carrying out repair work expertly. Please go carefully through the Workshop Manual of the wheeled excavator before starting any repair work. Use the Workshop Manual as a reference book and source of information even if you are familiar with wheeled excavator technology. Using the Workshop Manual, the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The require information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version at the E150BSR wheeled excavator are therefore possible if this adds to the clarity of the information. REPAIR and Parts Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability of your wheeled excavator When doing any work on the wheeled excavator, always observe the instructions given in the Workshop Manual. Extensive works not describe in the New Holland Workshop Manual would be done for you by your dealer. Always use original spare parts only.
