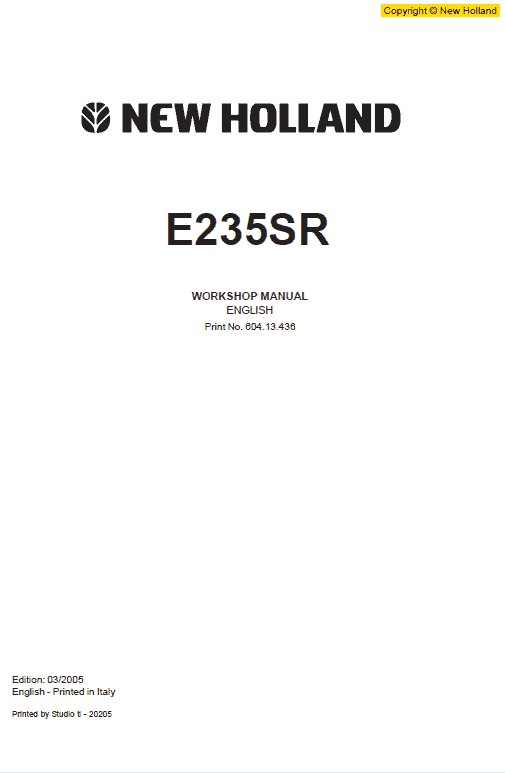

New Holland E235SR Excavator Service Manual Workshop Guide

Manual Included: Service Workshop Manual: 982 pages Specifications: Brand: New Holland Model: E235SR Type: Excavator Manuals: Service Workshop Manual Publication Numbers: 604.13.436(03/2005) Language: English Format: PDF Description Table of Contents SPECIFICATIONS 1 – Outline 2 – Specification 3 – Attachment dimension MAINTENANCE 11 – Tools 12 – Standard maintenance time schedule 13 – Maintenance standard and test procedure SYSTEM 21 – Mechatro control system 22 – Hydraulic system 23 – Electric system 24 – Components system 25 – Air-conditioner system DISASSEMBLING 31 – Disassembling and assembling 32 – Attachment 33 – Upper structure 34 – Travel system TROUBLESHOOTING 41 – Troubleshooting (mechatro control) 42 – Troubleshooting (Hydraulic) 43 – Troubleshooting (Electric) 44 – Troubleshooting (Engine) ENGINE 51 – Engine OPT 63 – Mounting the breaker and nibbler & breaker The New Holland manual is applicable for the model namely : E235SR The  Workshop Manual is wrote by New Holland repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the Workshop Manual of the wheeled excavator before starting any repair work. Use the Workshop Manual of the E235SR Excavator as a reference book and source of information even if you are familiar with wheeled excavator technology. Using the Workshop Manual, the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The require information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version at the E235SR wheeled excavator are therefore possible if this adds to the clarity of the information. REPAIR and Parts Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability of your wheeled excavator When doing any work on the wheeled excavator, always observe the instructions given in the Workshop Manual. Extensive works not describe in this Workshop Manual would be done for you by your dealer. Always use original spare parts only.
