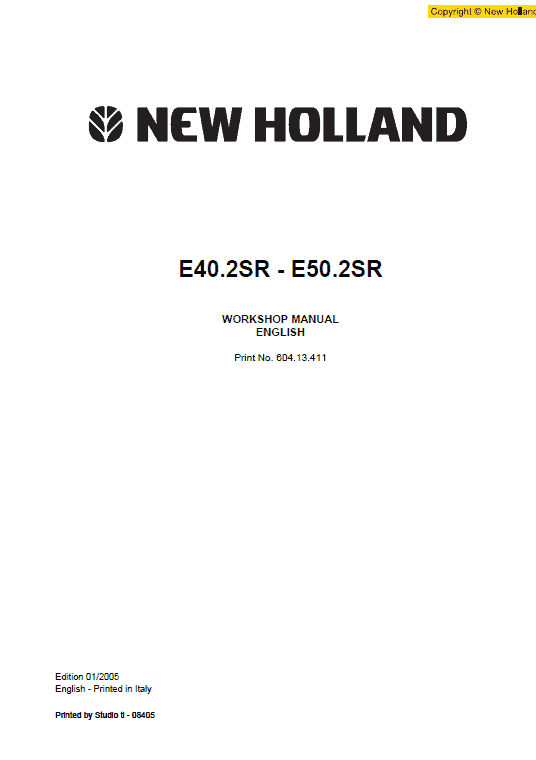

New Holland E40.2SR and E50.2SR Mini Excavator Service Manual Workshop Guide

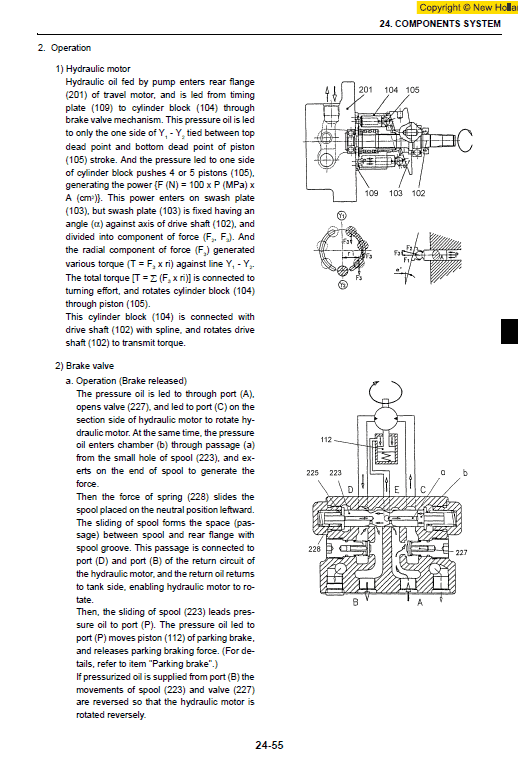

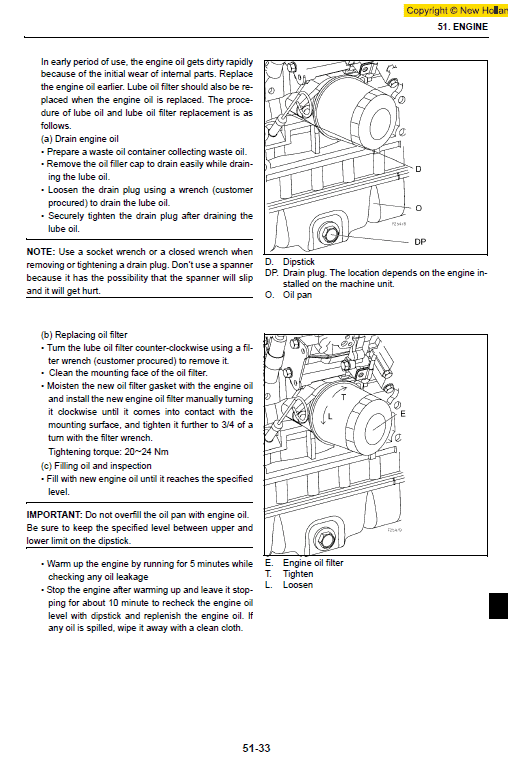

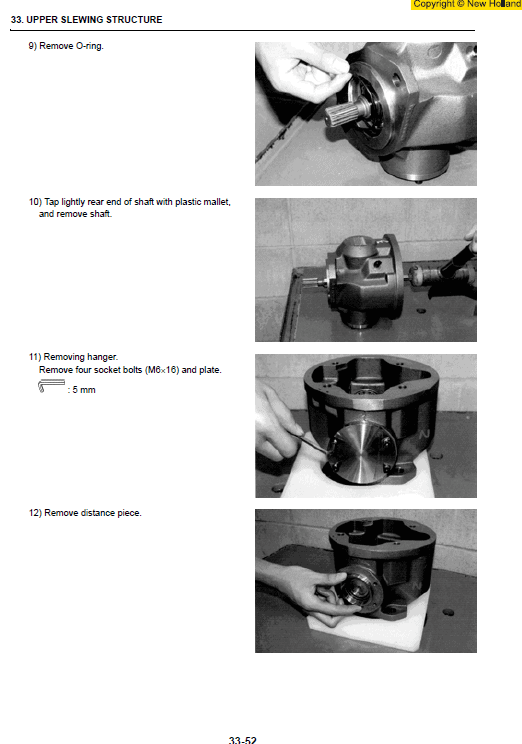

Manual Included: Workshop Manual: 782 Pages Specifications: Brand: New Holland Model: E40.2SR and E50.2SR Type: Mini Excavator Manuals: Workshop Manual Publication Numbers: 604.13.411 (01/2005) Language: English Format: PDF Description Table of Contents (Workshop Manual) INDEX SPECIFICATIONS 1 – Preliminary remarks 2 – Specifications 3 – Attachment dimensions MAINTENANCE 11 – Tools 12 – Standard maintenance time table 13 – Maintenance standards and tests procedures SYSTEM 22 – Hydraulic system 23 – Electrical system 24 – Components system DISASSEMBLING 31 – Whole disassembly and assembly 32 – Attachments 33 – Upper slewing structure 34 – Travel system TROUBLESHOOTING 42 – Hydraulic system 43 – Electrical system 44 – Engine ENGINE 51 – Engine The Manual Preface This Manual has been written for the repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the Workshop Manual of the mini excavator before starting any repair work. Use the Workshop Manual of the E40.2SR and E50.2SR Excavator as a reference book and source of information even if you are familiar with mini excavator technology. Using this experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The require information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version of this manual are therefore possible if this adds to the clarity of the information. Repair and Parts Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability of your mini excavator When doing any work on the mini excavator, always observe the instructions given in the Workshop Manual. Extensive works not described in this Workshop Manual will gladly be executed for you by your dealer. Always use original spare parts only.
