New Holland L180, L185 and L190 SkidSteer Service Manual Workshop Guide

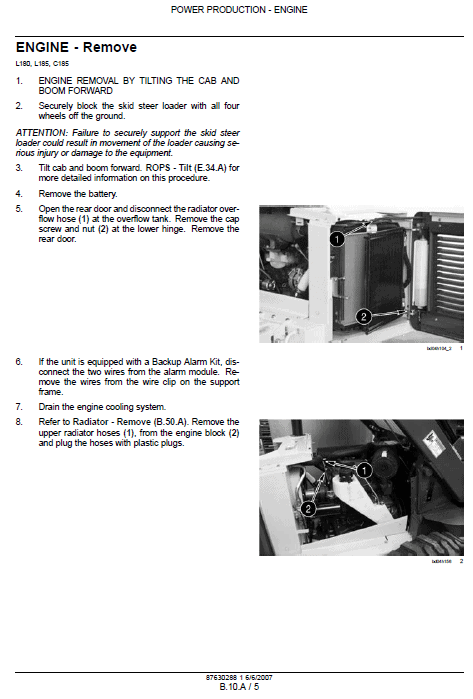

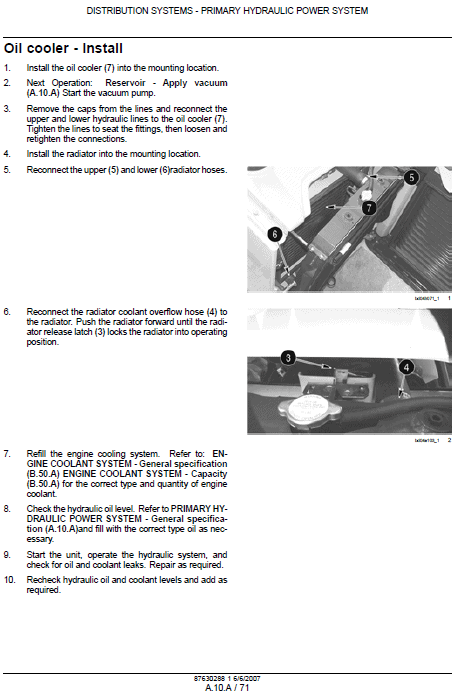

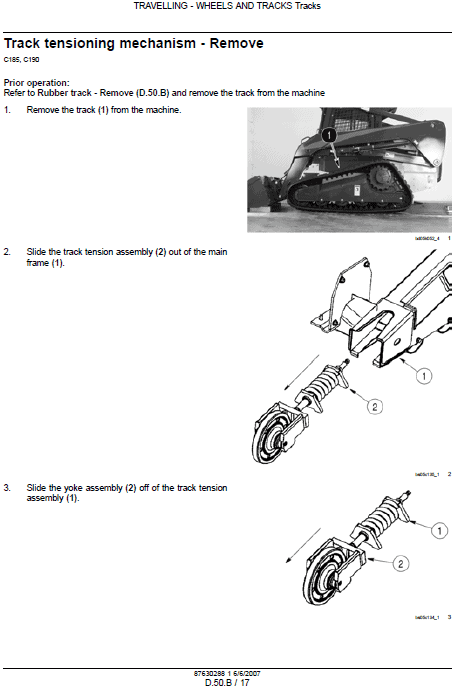

Manual Included: Repair Manual: 1068 pages Specifications: Brand: New Holland Model: L180, L185, L190, C185 and C190 Type: Skid Steer Loader, Compact Track Loader Manuals: Repair Manual Publication Numbers: 87630288 Language: English Format: PDF Description Table of Contents (Repair Manual) INTRODUCTION DISTRIBUTION SYSTEMS A PRIMARY HYDRAULIC POWER SYSTEM A.10.A SECONDARY HYDRAULIC POWER SYSTEM A.12.A HIGHFLOW HYDRAULIC POWER SYSTEM A.16.A ELECTRICAL POWER SYSTEM A.30.A LIGHTING SYSTEM A.40.A POWER PRODUCTION B ENGINE B.10.A FUEL AND INJECTION SYSTEM B.20.A AIR INTAKE SYSTEM B.30.A ENGINE COOLANT SYSTEM B.50.A LUBRICATION SYSTEM B.60.A STARTING SYSTEM B.80.A POWER TRAIN C POWER COUPLING Fixed coupling C.10.B TRANSMISSION Hydrostatic C.20.F TRAVELLING D FRONT AXLE D.10.A REAR AXLE D.12.A STEERING Steering clutch D.20.F PARKING BRAKE Hydraulic D.32.C WHEELS AND TRACKS Tracks D.50.B WHEELS AND TRACKS Wheels D.50.C Final drive D.15.A BODY AND STRUCTURE E USER CONTROLS AND SEAT E.32.A USER PLATFORM E.34.A ENVIRONMENT CONTROL Heating system E.40.B 87630288 1 6/6/2007 ENVIRONMENT CONTROL Air conditioning system E.40.C SAFETY SECURITY ACCESSORIES Safety E.50.B WORKING ARM H SINGLE ARM Lift H.40.B SINGLE ARM TOOL ATTACHMENT Tilt H.50.C TOOLS AND COUPLERS J CARRYING Unarticulated tools J.50.B COUPLING Hydraulic coupling J.80.C COUPLING Mechanical coupling J.80.B The Manual Preface This Manual has been written for the repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the Workshop Manual of the Skid Steer Loader before starting any repair work. Use the Workshop Manual of the L180, L185 ,L190, C185, C190 Skid Steer Loader as a reference book and source of information even if you are familiar with Skid Steer Loader technology. Using this the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The required information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version of this manual are therefore possible if this adds to the clarity of the information. Repair and Parts Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability of your Skid Steer Loader When doing any work on the loader, always observe the instructions given in the Workshop Manual. Extensive works not described in this Workshop Manual will gladly be executed for you by your dealer. Always use original spare parts only.
