New Holland L213, L215, L216 SkidSteer Loader Service Manual Workshop Guide

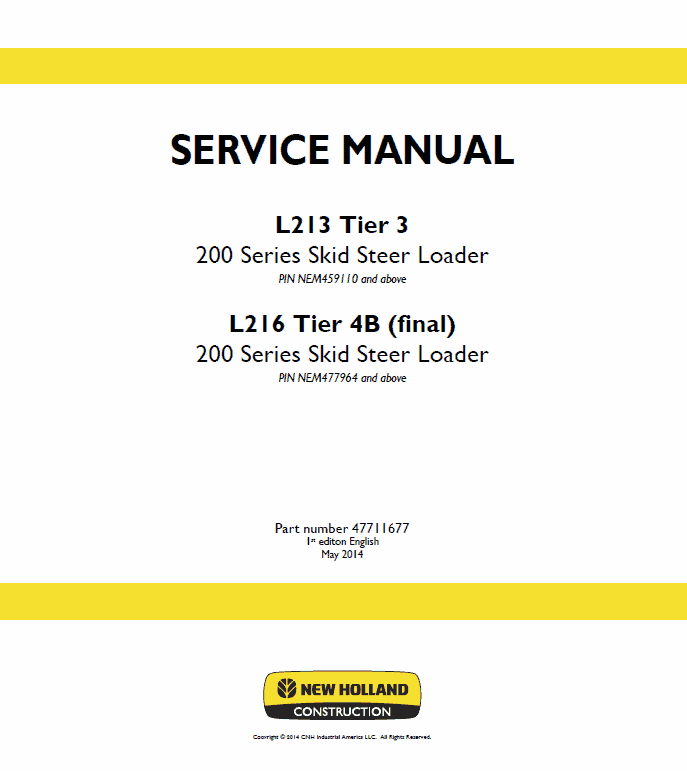

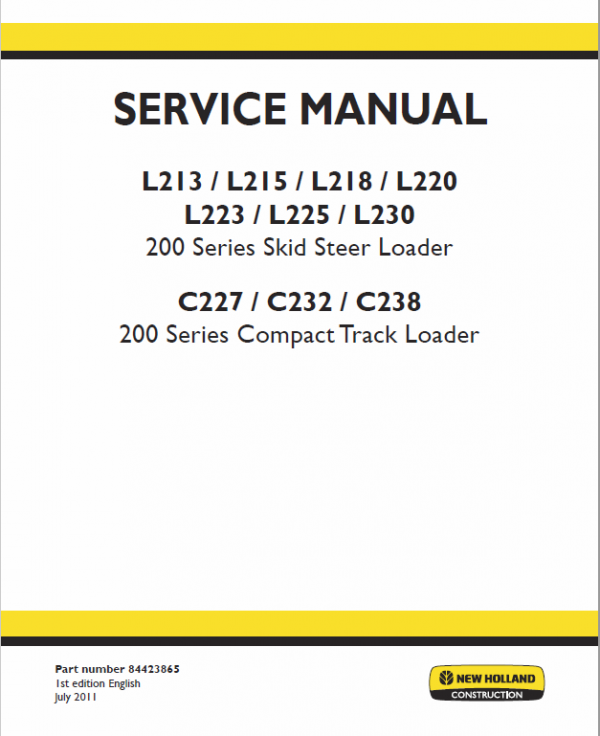

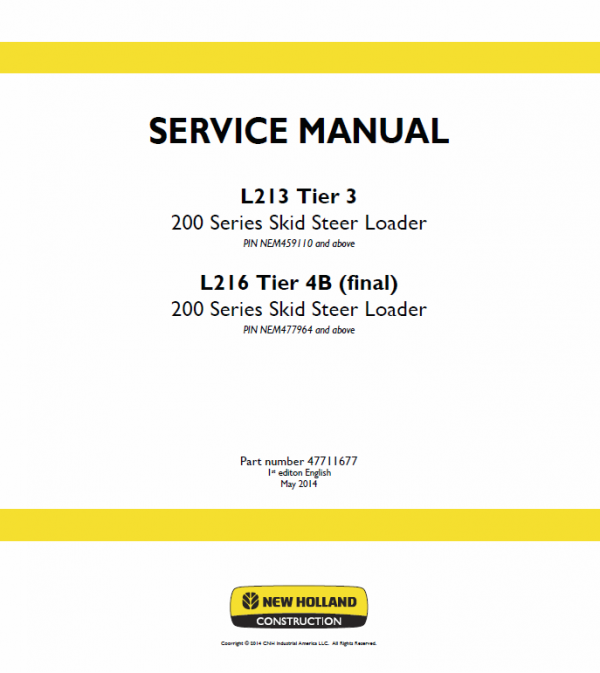

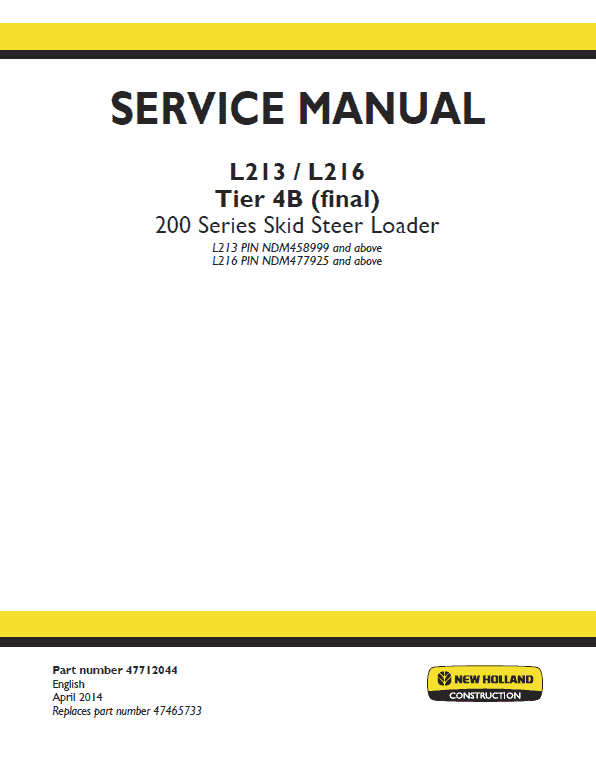

Manual Included: • Service Manual: 2531 pages and 1523 pages Specifications: • Brand: New Holland • Model: L213 Tier 3, L215, L216 Tier 4B (final) (L213 and L216) (Tier 4B final) L213 : PIN NDM458999 and above L216 : PIN NDM477925 and above L213, L215, L218, L220, L223, L225, L230, C227, C232 and C238 • Type: SkidSteer Loader • Manuals: Service Manual • Publication Numbers: 47711677 (May 2014) and 47712044 (April 2014) and 84423865 (Jul 2011) • Language: English • Format: PDF Description TABLE OF CONTENT (Service Manual) SECTION 00 – GENERAL INFORMATION SECTION 10 – ENGINE SECTION 25 – FRONT AXLE SECTION 27 – REAR AXLE SECTION 29 – HYDROSTATIC TRANSMISSION SECTION 33 – BRAKES AND CONTROLS SECTION 35 – HYDRAULIC SYSTEM SECTION 39 – FRAMES AND BALLASTING SECTION 44 – WHEELS SECTION 50 – CAB CLIMATE CONTROL SECTION 55 – ELECTRICAL SYSTEM SECTION 82 – FRONT LOADER (BOOM AND MOUNTING PLATE) SECTION 90 – PLATFORMS, CAB, BODYWORK, AND DECALS The Manual Preface The Workshop Manual has been written for the repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the Workshop Manual of the SkidSteer Loader before starting any repair work. Use the Workshop Manual as a reference book and source of information even if you are familiar with SkidSteer Loader technology. Using the Workshop Manual, the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The required information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version at are therefore possible if this adds to the clarity of the information. REPAIR and Parts L213, L215, L216 Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability of your SkidSteer Loader When doing any work on the loader, always observe the instructions given in the Workshop Manual. Extensive works not described in the Workshop Manual will gladly be executed for you by your dealer. Always use original spare parts only.
