New Holland L234, C234 SkidSteer Loader Service Manual Workshop Guide

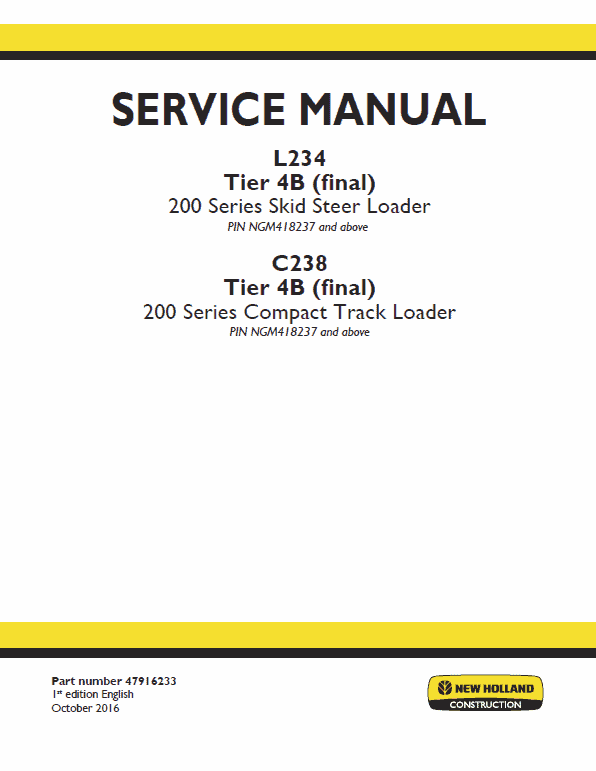

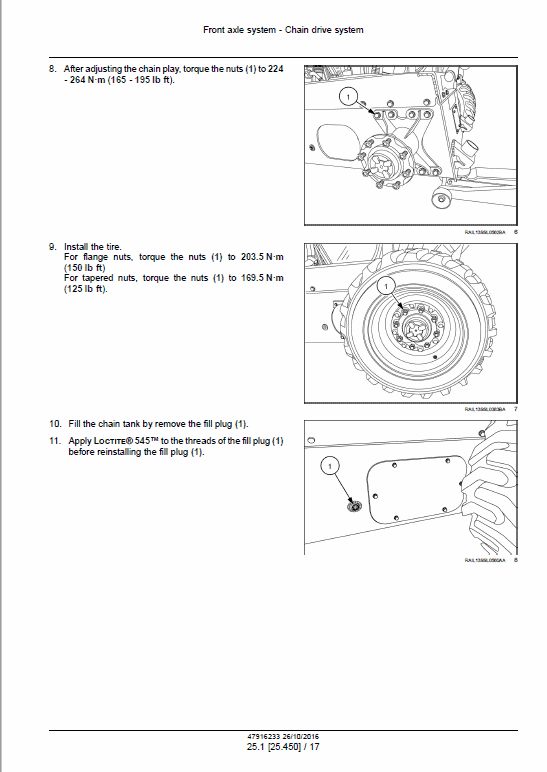

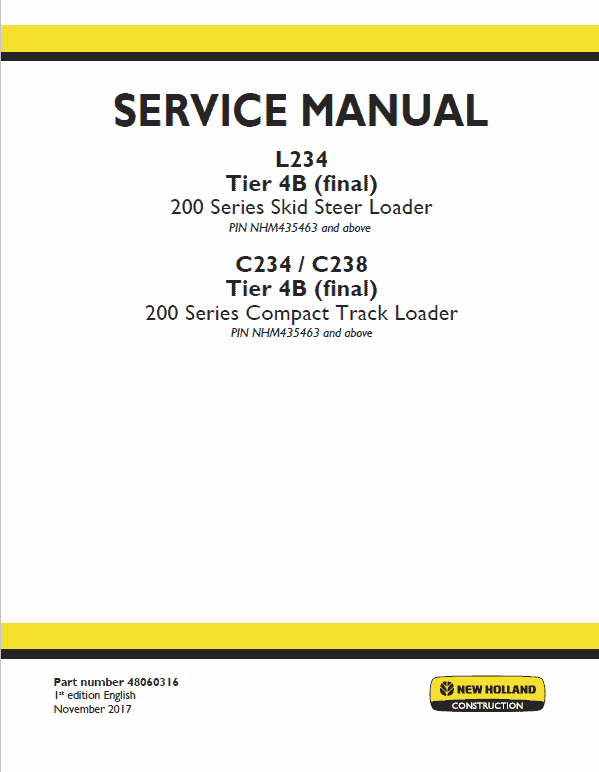

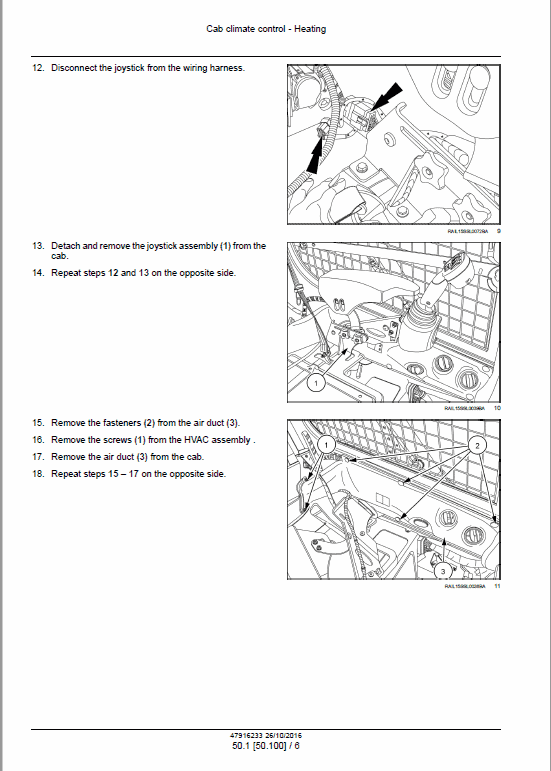

Manual Included: Service Manual: 2470 Pages & 2900 Pages Specifications: Brand: New Holland Model: L234 Tier 4B final (PIN: NGM418237 and above and PIN: NHM435463 and above), C238 Tier 4B final (PIN: NGM418237 and above), (C234 and C238) (Tier 4B final) (PIN: NHM435463 and above) Type: Tractor Manuals: Service Manual Publication Numbers: 48060316 (Nov 2017) and 47916233 (Oct 2016) Language: English Format: PDF Description Table of Content (Service Manual) Contents Introduction Engine Power coupling Front Axle system Rear axle system Hydrostatic drive Brakes and controls Hydraulic System Frames and ballasting Wheels Tracks and track suspension Cab, climate control Electrical System Front loader and bucket Plateform, cab, bodywork and decals Electrical Schematic Hydraulic Schematic The Manual Preface This manual has been written for the repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the manual before starting any repair work. Use the manual of the L234, C234 Loader as a reference book and source of information even if you are familiar with technology. Using this the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The required information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version of this manual are therefore possible if this adds to the clarity of the information. Repair and Parts Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability while doing any work on the loader, always observe the instructions given in the manual. Extensive works not described in this Workshop Manual will gladly be executed for you by your dealer. Always use original spare parts only.
