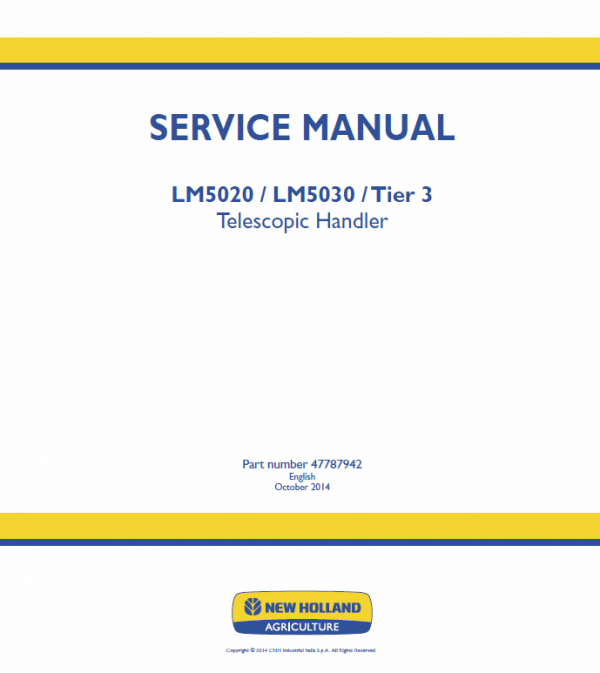

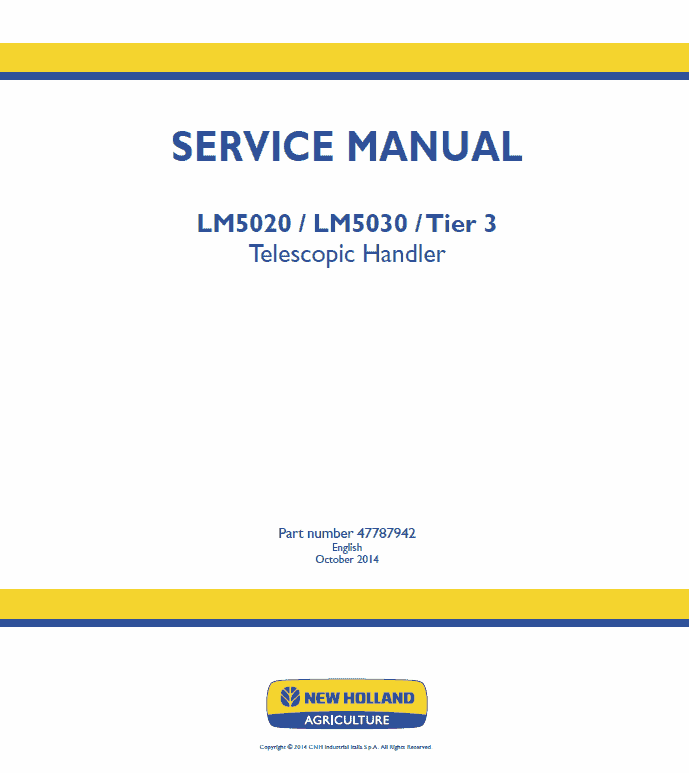

New Holland LM5020, LM5030 Tier 3 Telescopic Handler Service Manual Workshop Guide

Manual Included: • Service Manual: 759 pages Specifications: • Brand: New Holland • Model: LM5020 Tier 3, LM5030 Tier 3 • Type: Telescopic Handlers • Manuals: Service Manual • Publication Numbers: 47787942 (Oct 2014) • Language: English • Format: PDF Description TABLE OF CONTENTS INTRODUCTION ENGINE FOUR WHEEL DRIVE (4WD) SYSTEM FRONT AXLE SYSTEM REAR AXLE SYSTEM HYDRAULIC SYSTEM STEERING CAB CLIMATE CONTROL ELECTRICAL SYSTEM The manual is applicable for the model namely : LM5020, LM5030 Tier 3 The Workshop Manual is wrote by New Holland repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the Workshop Manual of the Telescopic Handler before starting any repair work. Use the Workshop Manual as a reference book and source of information even if you are familiar with Telescopic Handler technology. Using the Workshop Manual, the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The require information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version are therefore possible if this adds to the clarity of the information. Repair and Parts Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability of your Telescopic Handler When doing any work on the Telescopic Handler, always observe the instructions given in the Workshop Manual. Extensive works not describe in the New Holland Manual would be done for you by your dealer. Always use original spare parts only. Identify the Tier Level of your Equipment (Read our Article on Tier Level )
