New Holland LS180, LS190 SkidSteer Loader Service Manual Workshop Guide

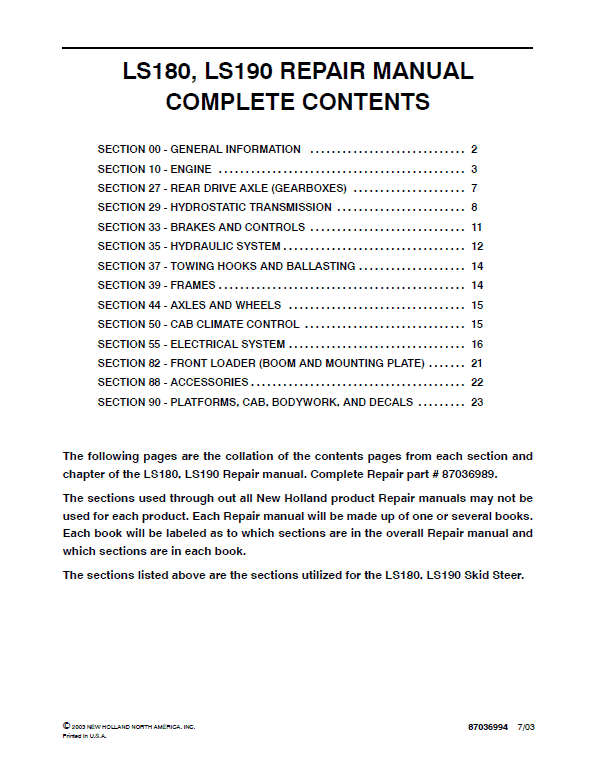

Manual Included: Service Manual: 948 pages Specifications: Brand: New Holland Model: LS180 and LS190 Type: SkidSteer Loader Manuals: Service Manual Publication Numbers: 87036994 (Jul 2003) Language: English Format: PDF Description Table of Content (Service Manual) SECTION 00 – GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECTION 10 – ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SECTION 27 – REAR DRIVE AXLE (GEARBOXES) . . . . . . . . . . . . . . . . . . . . . 7 SECTION 29 – HYDROSTATIC TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . 8 SECTION 33 – BRAKES AND CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 SECTION 35 – HYDRAULIC SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 SECTION 37 – TOWING HOOKS AND BALLASTING . . . . . . . . . . . . . . . . . . . . 14 SECTION 39 – FRAMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 SECTION 44 – AXLES AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SECTION 50 – CAB CLIMATE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SECTION 55 – ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 SECTION 82 – FRONT LOADER (BOOM AND MOUNTING PLATE) . . . . . . . 21 SECTION 88 – ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 SECTION 90 – PLATFORMS, CAB, BODYWORK, AND DECALS . . . . . . . . . 23 The Manual Preface The LS180, LS190 SkidSteer Loader Workshop Manual has been written for the repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the manual before starting any repair work. Use this reference book and source of information even if you are familiar with SkidSteer Loader technology. Using this the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The required information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version of this manual are therefore possible if this adds to the clarity of the information. Repair and Parts Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability while doing any work on the loader, always observe the instructions given in the Workshop Manual. Extensive works not described in this Workshop Manual will gladly be executed for you by your dealer. Always use original spare parts only.
