New Holland T1510, T1520 Tractor Service Manual Workshop Guide

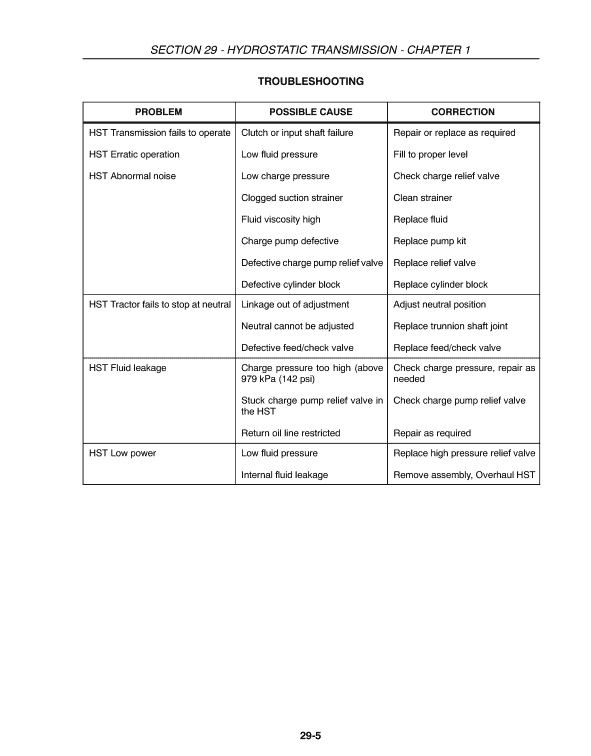

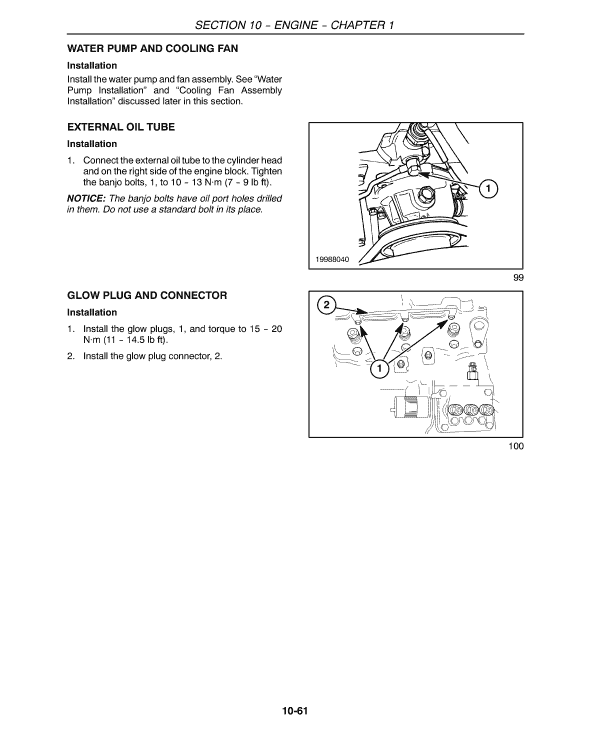

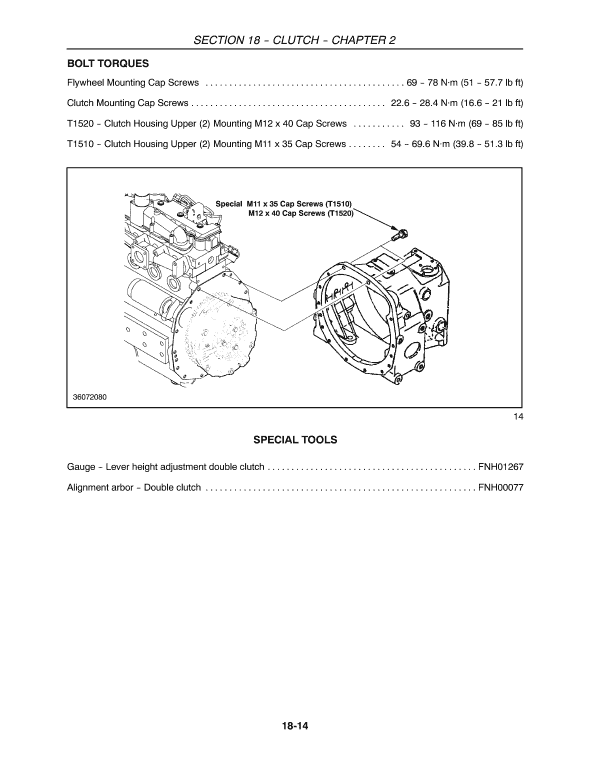

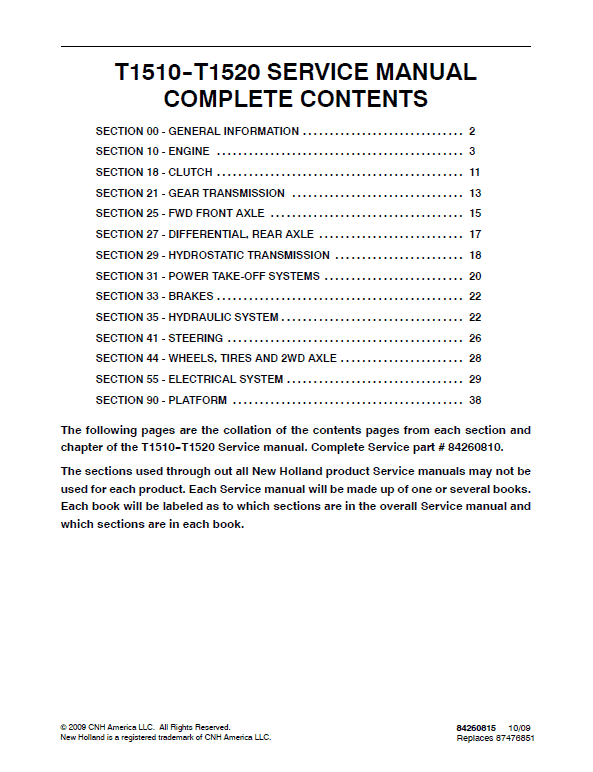

Manual Included: Service Manual: 690 pages Specifications: Brand: New Holland Model: T1510 and T1520 Type: Tractor Manuals: Service Manual Publication Numbers: 84260810 (October 2009) Language: English Format: PDF Description Table of Content (Service Manual) SECTION 00 – GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECTION 10 – ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SECTION 18 – CLUTCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 SECTION 21 – GEAR TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 SECTION 25 – FWD FRONT AXLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SECTION 27 – DIFFERENTIAL, REAR AXLE . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 SECTION 29 – HYDROSTATIC TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . 18 SECTION 31 – POWER TAKE-OFF SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . 20 SECTION 33 – BRAKES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 SECTION 35 – HYDRAULIC SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 SECTION 41 – STEERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 SECTION 44 – WHEELS, TIRES AND 2WD AXLE . . . . . . . . . . . . . . . . . . . . . . . 28 SECTION 55 – ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 SECTION 90 – PLATFORM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 The Manual Introduction This service manual provides the technical information needed to properly service the T1510, T1520 transmission, Axle and other parts of the Tractor. Use this manual in conjunction with the operators manual for complete operation, adjustment, and maintenance information. Read this manual carefully before starting, using, carrying out refueling or performing any other type of operation on the tractor. Sections of the Manual The Manual is divided into main groups and subgroups, and covers any previous version and any additions or modifications which can happen at a later date are not describe in this manual. The required information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are presented in simplified form in this service manual. Repair and Parts When carrying any repair or maintenance on the Tractor ensure you read the safety guideline beforehand. This will prevent any incident and ensure that the best practices in the manual are followed. When doing any work on the Tractor, always observe the instructions given in the Workshop Manual. Extensive works not described in the manual will gladly be executed for you by your dealer. Only genuine spare parts guarantee the same quality, duration, and safety as original parts, as they are the same parts that are assembled during standard production. Only CNH Original Parts or NEW HOLLAND Original Parts can offer this guarantee.
