New Holland TC30 Tractor Service Manual Workshop Guide

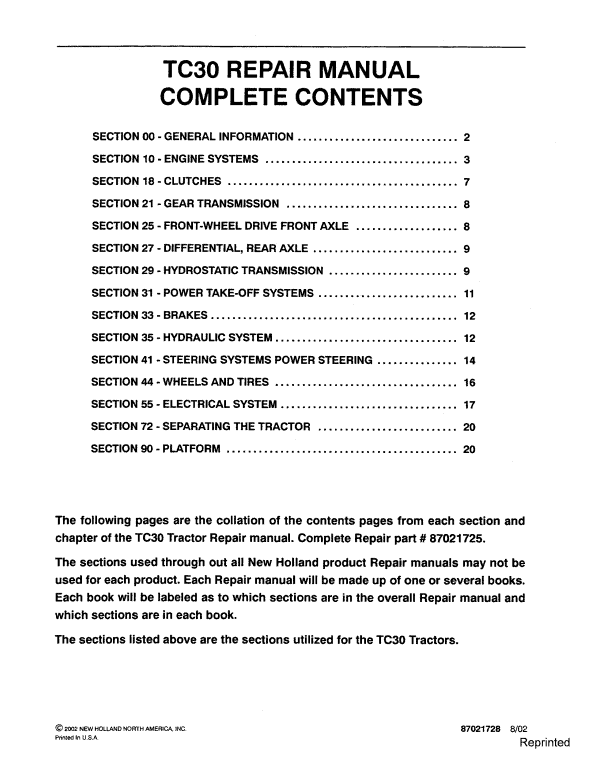

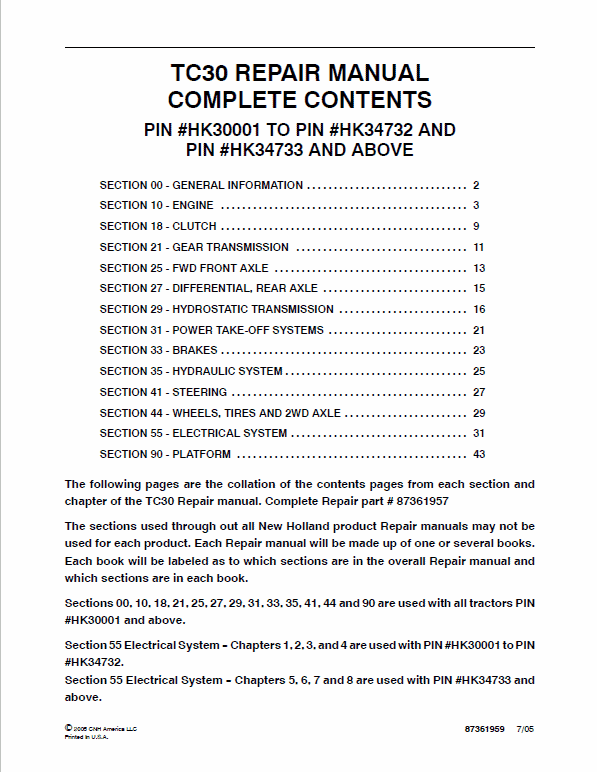

Manual Included: Repair Manual: 592 Pages & 828 Pages Specifications: Brand: New Holland Model: TC30 Type: Tractor Manuals: Repair Manual Publication Numbers: 87021728 (Aug 2002) and 87361959 (July 2005) Language: English Format: PDF Description Table of Content (Repair Manual) Section 00 – General Information Section 10 – Engine Section 18 – Clutches Section 21 – Gear Transmissions Section 25 – Front Wheel Drive Axle Section 27 – Differential, Rear Drive Axle Section 31 – Power Take Off Section 33 – Brakes Section 35 – Hydraulics System Section 41 – Steering Systems Power Steering Section 44 – Wheel and Tires Section 55 – Electrical System Section 72 – Separating Tractor Section 90 – Platform The Manual Introduction This service manual provides the technical information needed to properly service the TC30 transmission, Axle and other parts of the Tractor. Use this manual in conjunction with the operators manual for complete operation, adjustment, and maintenance information. Read this manual carefully before starting, using, carrying out refueling or performing any other type of operation on the tractor. Sections of the Manual The Manual is divided into main groups and subgroups, and covers any previous version and any additions or modifications which can happen at a later date are not describe in this manual. The required information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are presented in simplified form in this service manual. Repair and Parts When carrying any repair or maintenance on the Tractor ensure you read the safety guideline beforehand. This will prevent any incident and ensure that the best practices in the manual are followed. When doing any work on the Tractor, always observe the instructions given in the Workshop Manual. Extensive works not described in the manual will gladly be executed for you by your dealer. Only genuine spare parts guarantee the same quality, duration, and safety as original parts, as they are the same parts that are assembled during standard production. Only CNH Original Parts or NEW HOLLAND Original Parts can offer this guarantee.
