New Holland TR96, TR97, TR98 Combine Service Manual Workshop Guide

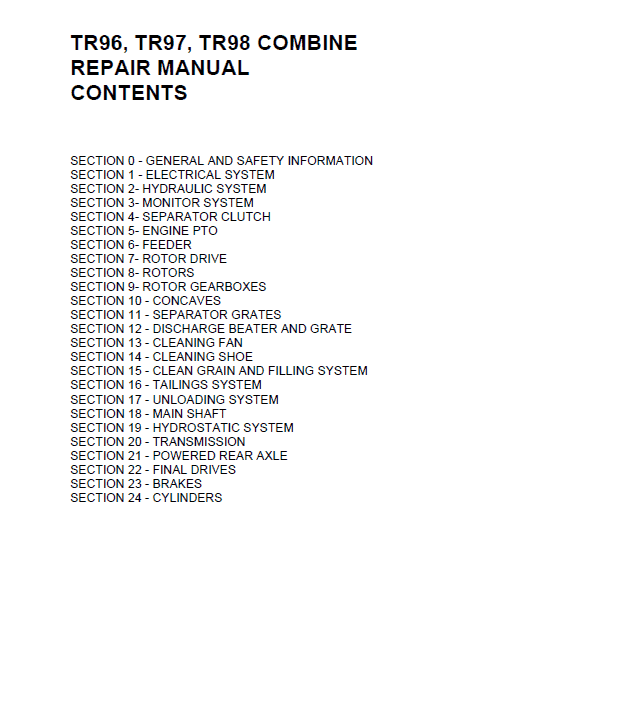

Manual Included: • Repair Manual: 1866 pages Specifications: • Brand: New Holland • Model: TR96, TR97, TR98 • Type: Harvester • Manuals: Repair Manual • Publication Numbers: 40009630 • Language: English • Format: PDF Description TABLE OF CONTENTS SECTION 0 – GENERAL AND SAFETY INFORMATION SECTION 1 – ELECTRICAL SYSTEM SECTION 2- HYDRAULIC SYSTEM SECTION 3- MONITOR SYSTEM SECTION 4- SEPARATOR CLUTCH SECTION 5- ENGINE PTO SECTION 6- FEEDER SECTION 7- ROTOR DRIVE SECTION 8- ROTORS SECTION 9- ROTOR GEARBOXES SECTION 10 – CONCAVES SECTION 11 – SEPARATOR GRATES SECTION 12 – DISCHARGE BEATER AND GRATE SECTION 13 – CLEANING FAN SECTION 14 – CLEANING SHOE SECTION 15 – CLEAN GRAIN AND FILLING SYSTEM SECTION 16 – TAILINGS SYSTEM SECTION 17 – UNLOADING SYSTEM SECTION 18 – MAIN SHAFT SECTION 19 – HYDROSTATIC SYSTEM SECTION 20 – TRANSMISSION SECTION 21 – POWERED REAR AXLE SECTION 22 – FINAL DRIVES SECTION 23 – BRAKES SECTION 24 – CYLINDERS The Manual Preface The Workshop Manual has been written for the repair specialist. It provides important information on carrying out repair work expertly. Please go carefully through the Workshop Manual of the Combine before starting any repair work. Use the Workshop Manual as a reference book and source of information even if you are familiar with Combine technology. Using the Workshop Manual, the experience construction machine mechanic can carry out any necessary repairs expertly. Sections of the Manual The Manual is into main groups and subgroups, and covers any previous version of the machine. Any additions or modifications which can happen at a later date are not describe in this manual. The required information can easily be found by referring to the table of contents. For reasons of clarity, some of the illustrations are present in simplified form. Differences from the actual version are therefore possible if this adds to the clarity of the information. Combine  REPAIR and Parts TR96, TR97, TR98 Carry out any necessary repair work as soon as possible. This reduces repair costs and increases the availability of your Combine When doing any work on the loader, always observe the instructions given in the Workshop Manual. Extensive works not described in the Workshop Manual will gladly be executed for you by your dealer. Always use original spare parts only.
