Perkins 1100 Series Diesel Engine Manual Workshop Guide

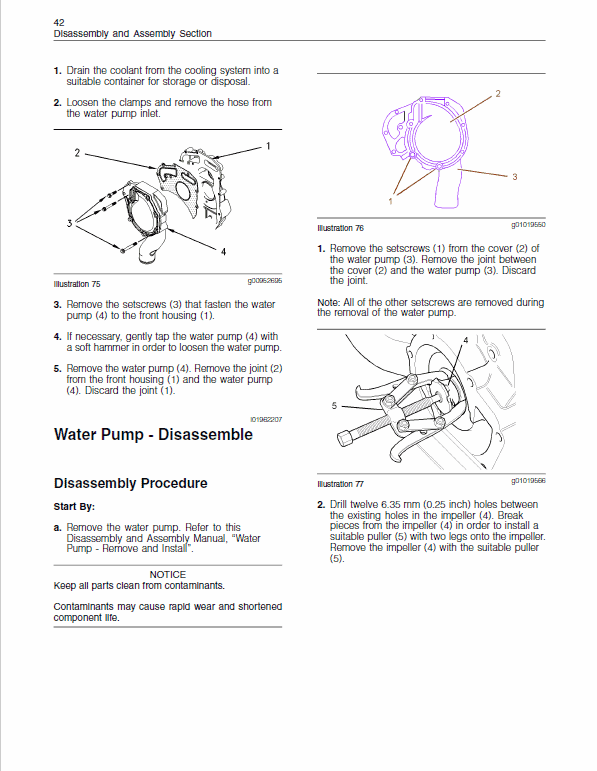

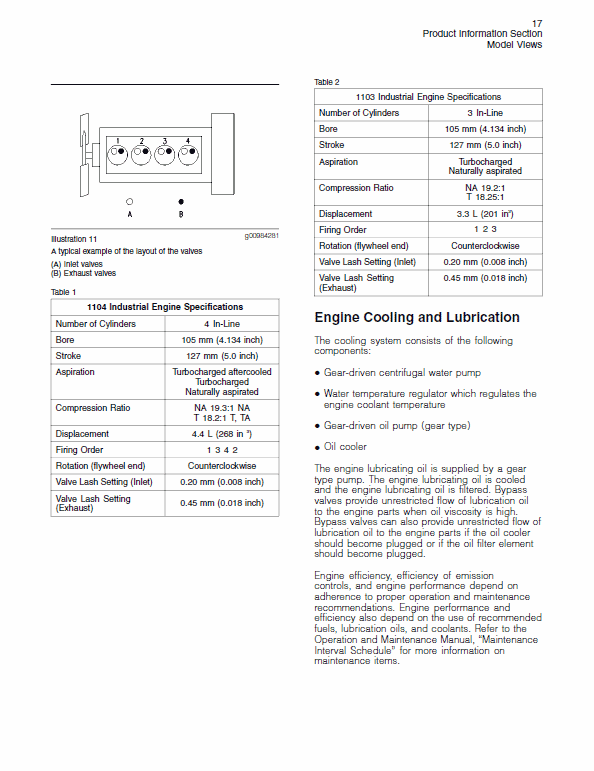

Perkins 1100C Series Non Electronic 3 & 4 Cylinder Manual – 270 Pages Perkins 1100C Series Non Electronic 6 Cylinder Manual – 307 Pages Description Perkins 1100 Series Diesel Engine Manual Engine Model: Perkins 1100 Series Format PDF English Perkins 1100C Series Non Electronic 3 & 4 Cylinder Manual – 270 Pages Perkins 1100C Series Non Electronic 6 Cylinder Manual – 307 Pages Manual Table of Content Chapters 1 General information 2 Specifications 3 Cylinder head assembly 4 Piston and connecting rod assemblies 5 Crankshaft assembly 6 Timing case and drive assembly 7 Cylinder block assembly 8 Engine timing 9 Aspiration system 10 Lubrication system 11 Fuel system 12 Cooling system 13 Flywheel and housing 14 Electrical equipment 15 Auxiliary equipment 16 Special tools This Workshop Manual has been written to provide assistance in the service and overhaul of the Perkins 1100 Series six cylinder, (model VK) engines. For overhaul procedures the assumption is made that the engine is removed from the application. The engine conforms with USA (EPA/CARB) tier 2 and EC stage 2 emissions legislation for agricultural and industrial applications. Pistons Type… … … … … … … … … … … … … … .. "Fastram" combustion bowl, inserted top ring groove, graphite skirt Diameter of bore for gudgeon pin .. … … … … … … … … … … … … … … 39,703/39,709 mm (1.5631/1.5633 in) Height of piston above top face of cylinder block… … … … … … … … … … … … 0,36/0,50 mm (0.014/0.020 in) Width of groove for top ring … … … … … … … … … … … … … … … … … … … … … … … … … … … … .. Tapered Width of groove for second ring. … … … … … … … … … … … … … … … … ..2,562/2,58 mm (0.1008/0.1016 in) Width of groove for third ring.. … … … … … … … … … … … … … … … … … … 3,54/3,56 mm (0.1393/0.1401 in) Piston cooling jets Valve open pressure.. … … … … … … … … … … … … … … … … … .178/250 kPa (26/36 lbf/in²) 1,8/2,6 kgf/cm²
