Perkins 1100C Series Diesel Engine Manual Workshop Guide

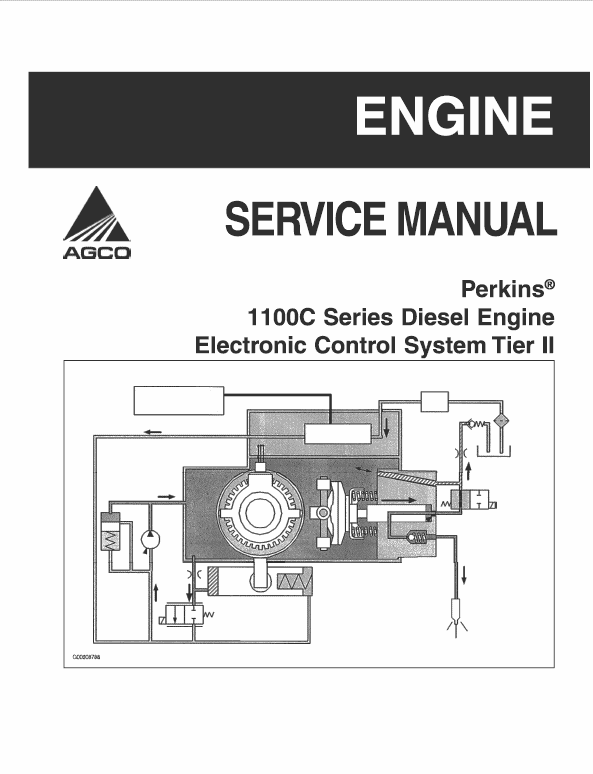

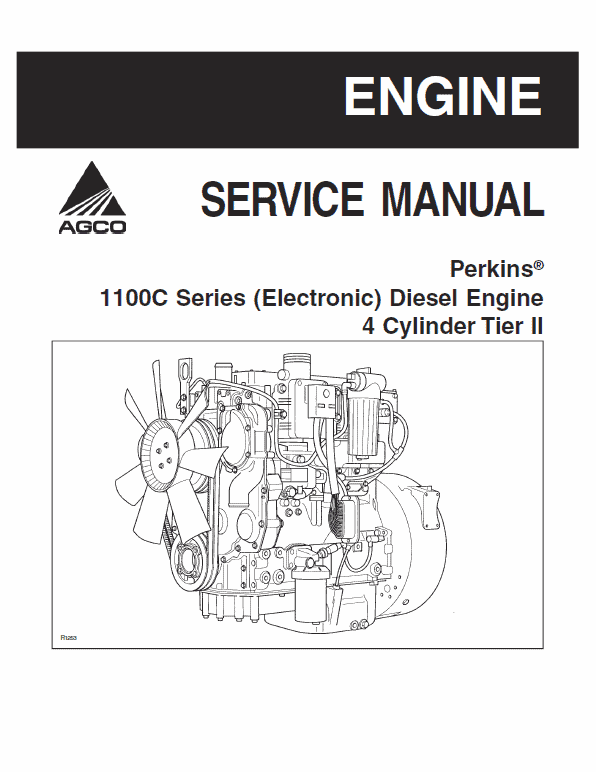

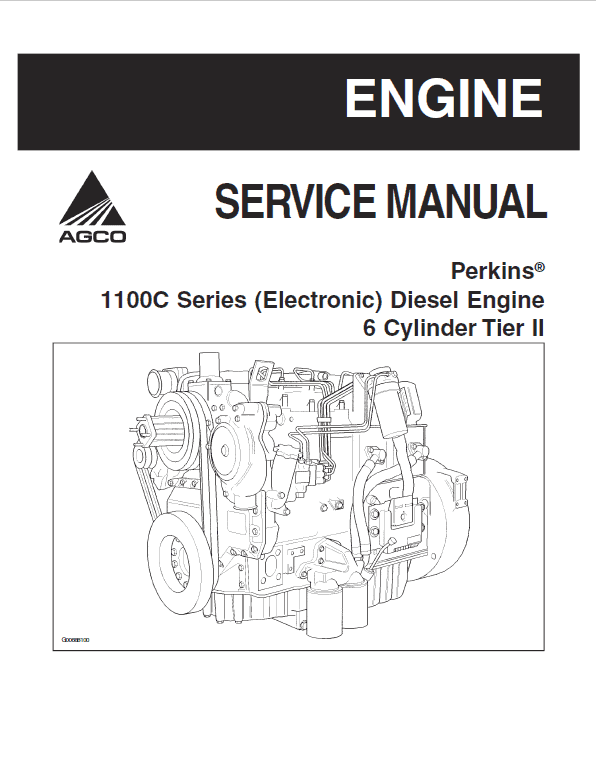

Perkins 1100C Series Electronic Control System Tier 2 Manual – 224 Pages Perkins 1100C Series Electronic 6 Cylinder Tier 2 Manual – 314 Pages Perkins 1100C Series Electronic 4 Cylinder Tier 2 Manual – 276 Pages Description Perkins 1100C Series Diesel Engine Service Manual Engine Model: Perkins 1100C Series Format PDF English Perkins 1100C Series Electronic Control System Tier 2 Manual – 224 Pages Perkins 1100C Series Electronic 6 Cylinder Tier 2 Manual – 314 Pages Perkins 1100C Series Electronic 4 Cylinder Tier 2 Manual – 276 Pages Manual Table of Content Chapters 1 General information 2 Specifications 3 Cylinder head assembly 4 Piston and connecting rod assemblies 5 Crankshaft assembly 6 Timing case and drive assembly 7 Cylinder block assembly 8 Engine timing 9 Aspiration system 10 Lubrication system 11 Fuel system 12 Cooling system 13 Flywheel and housing 14 Electrical equipment 15 Auxiliary equipment 16 Special tools This Workshop Manual has been written to provide assistance in the service and overhaul of Perkins 1100 Series 4 cylinder engines. It should be used in conjunction with normal workshop practise and information contained in current service bulletins. Mention of certain accepted practices therefore, has been purposely omitted in order to avoid repetition. For overhaul procedures the assumption is made that the engine is removed from the application. The engine conforms with USA (EPA/CARB) stage 2 and EEC stage 2 emissions legislation for agriculture, construction and industrial applications. Most of the general information which is included in the relevant User's Handbook has not been repeated in this workshop manual and the two publications should be used together. Where the information applies only to certain engine types, this is indicated in the text. The details of some operations will be different according to the type of fuel injection pump which is fitted. The specific pump type used can be found by reference to the manufacturer's identification plate on the pump body but, generally, the type of pump fitted is as shown below: Delphi – DP210 Series Bosch – VP 30 Bosch – EPVE.
