RENAULT KANGOO II X61 FC/FW (2007-2021) SERVICE WORKSHOP MANUAL IN PDF FORMAT (
6170 PAGES
) SUPPLIED AS DOWNLOADABLE LINK.

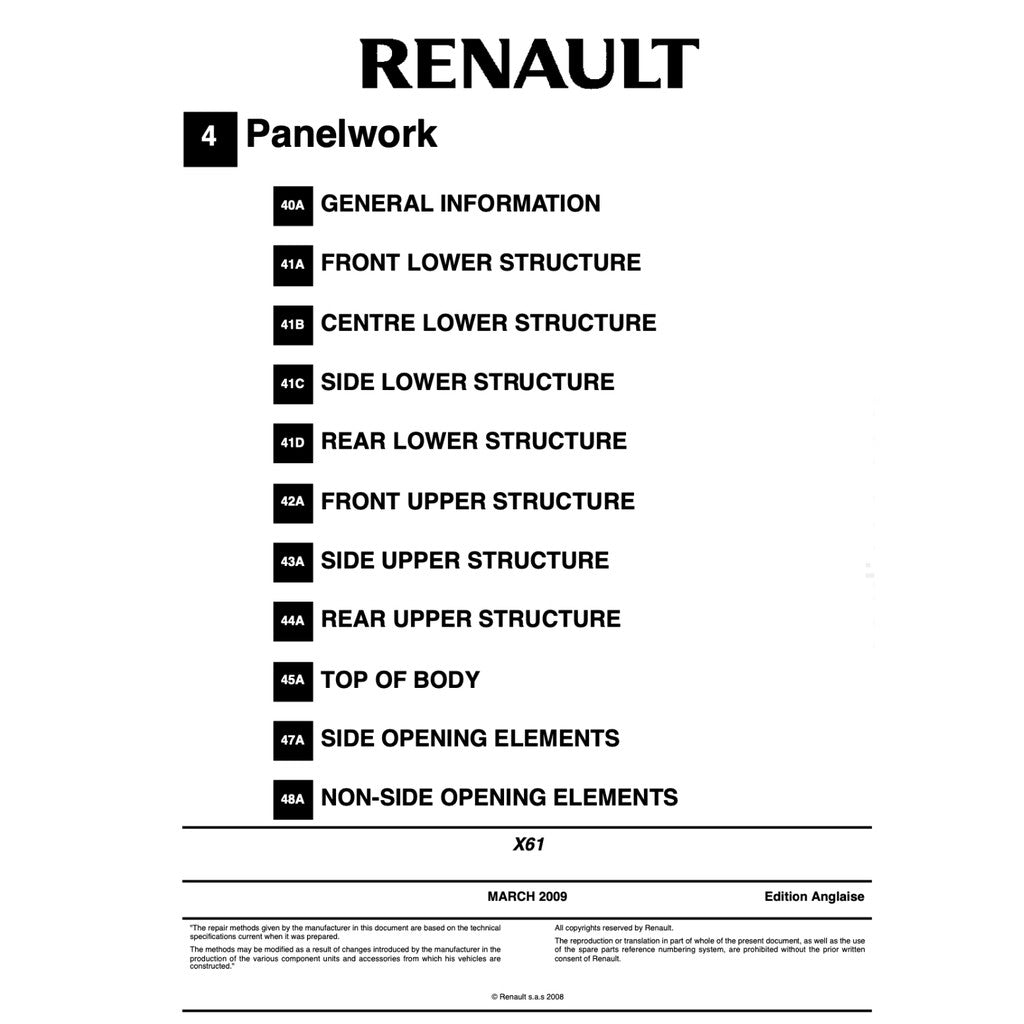

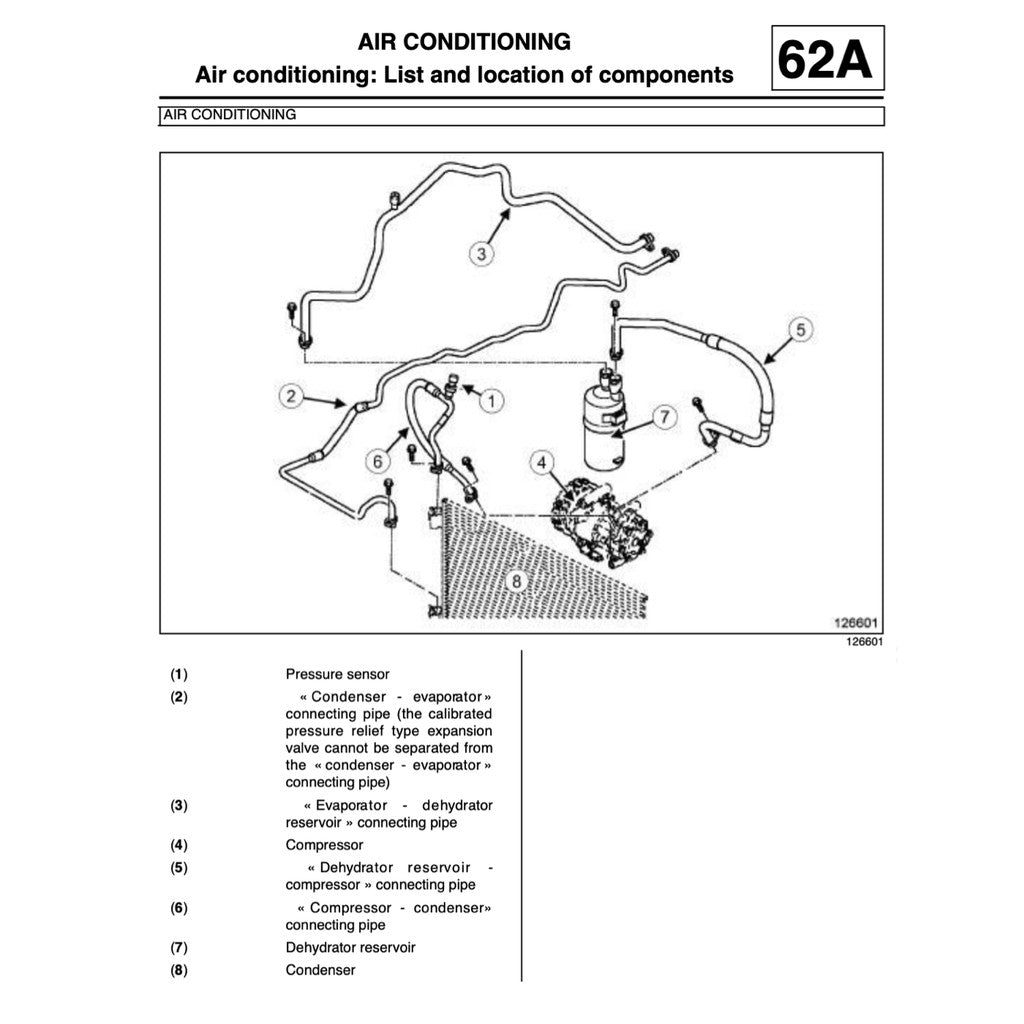

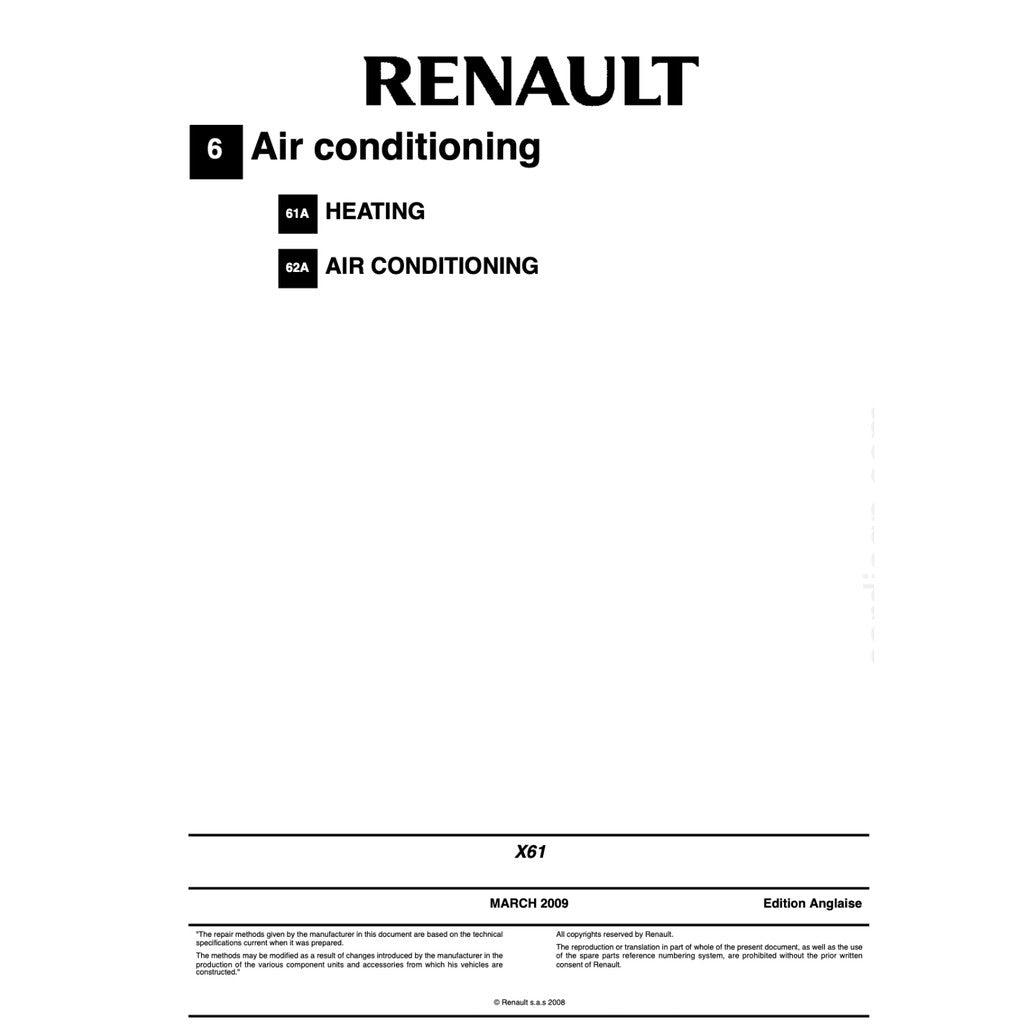

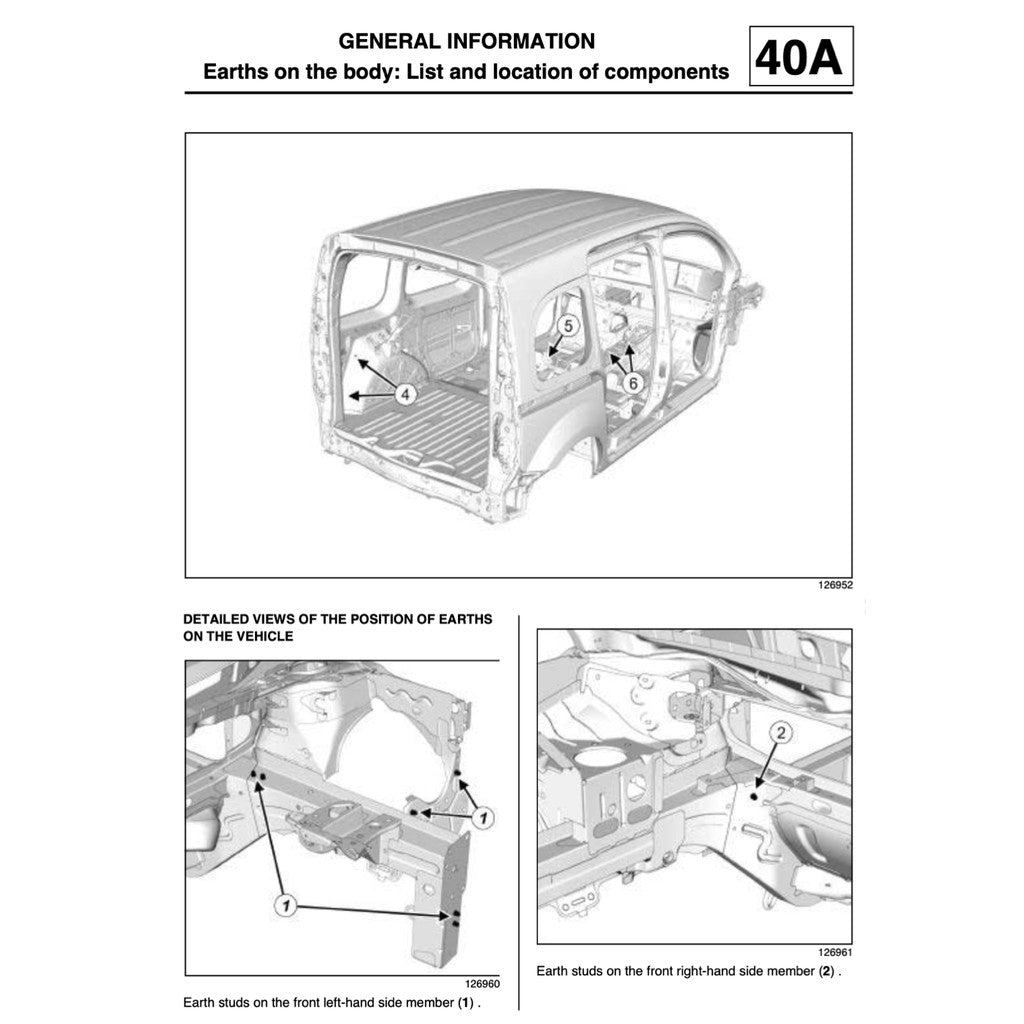

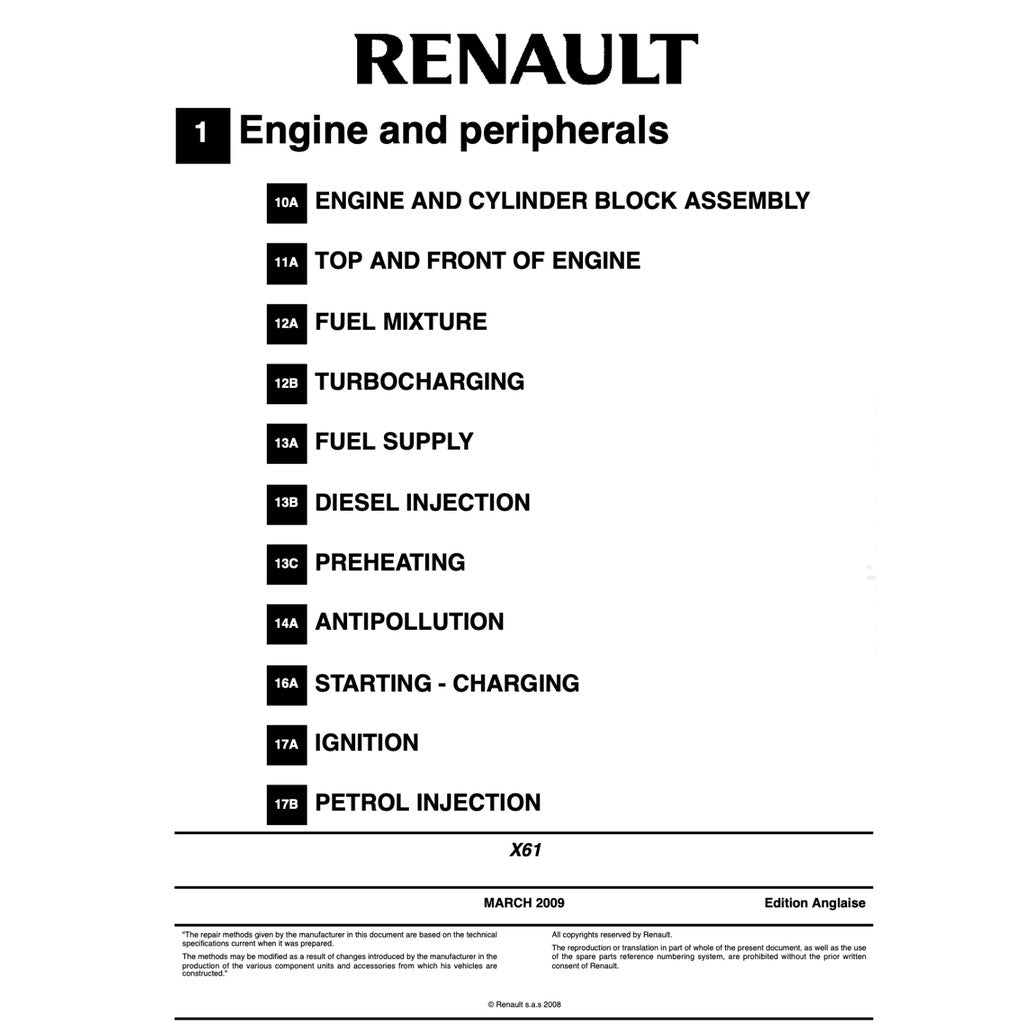

The package include the complete workshop manual in PDF format which include the following groups: Engine & Systems (Petrol & Diesel); Transmission (Manual & Automatic); Chassis (Running gears); Body (Body repair, interior, exterior), Electrical equipment; HVAC. Each group include a Fault Finding section
POWERTRAIN

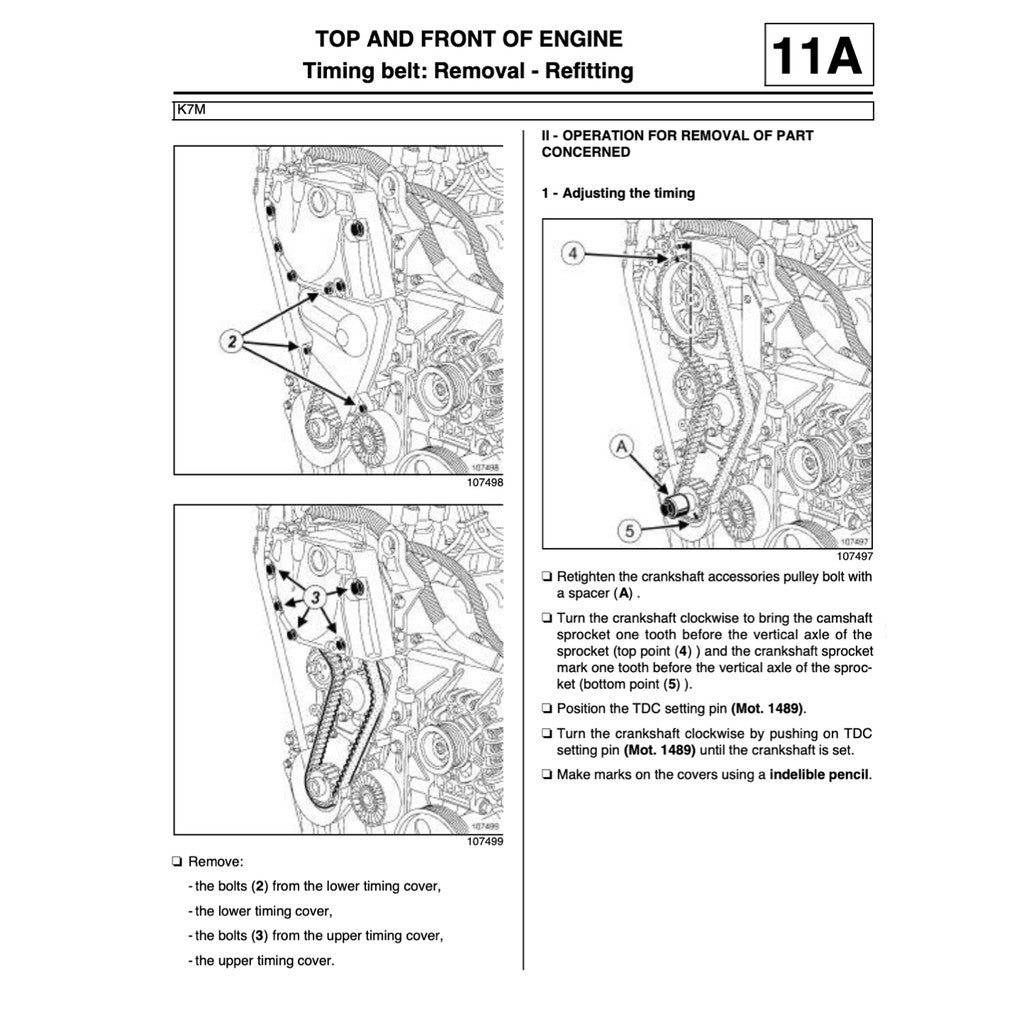

Engine
petrol:
1.2 L HRA2 (H5Ft) I4

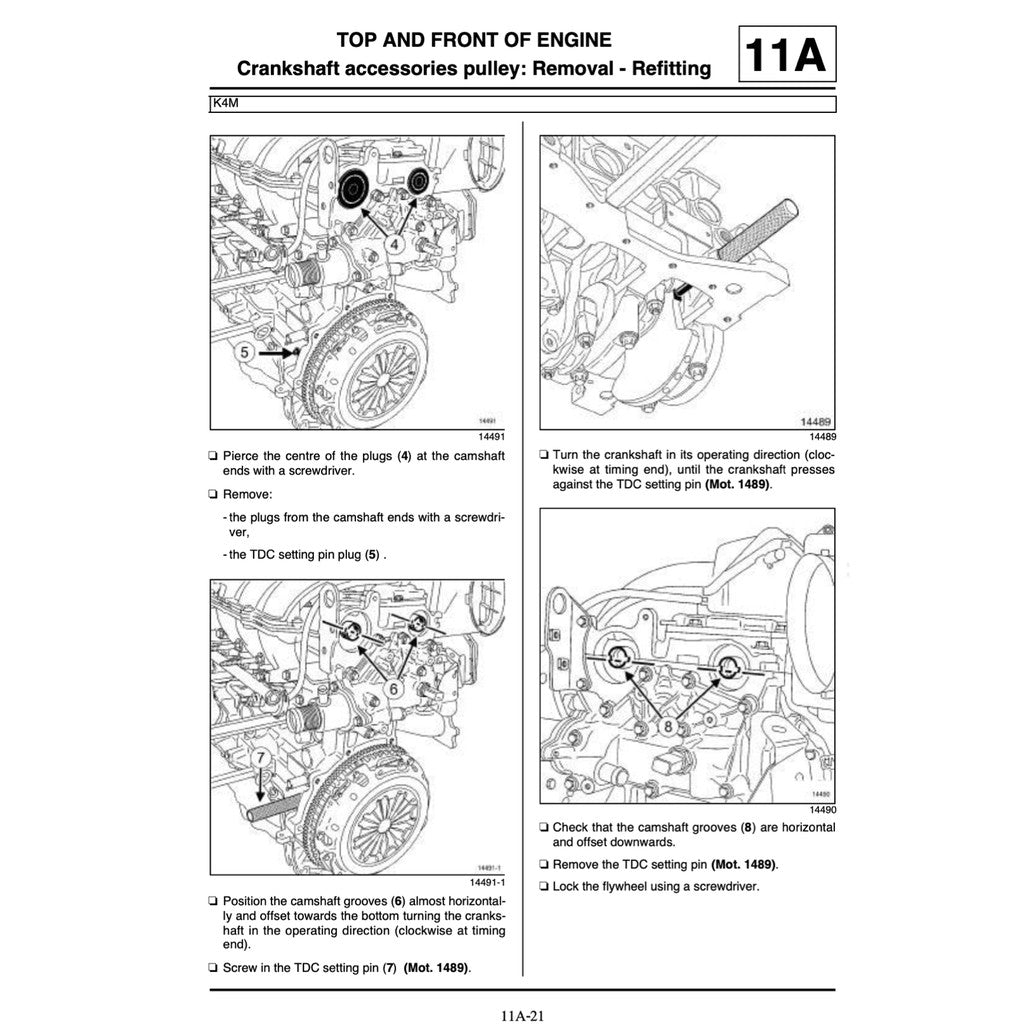

1.6 L K4M I4
diesel:
1.5 L K9K I4

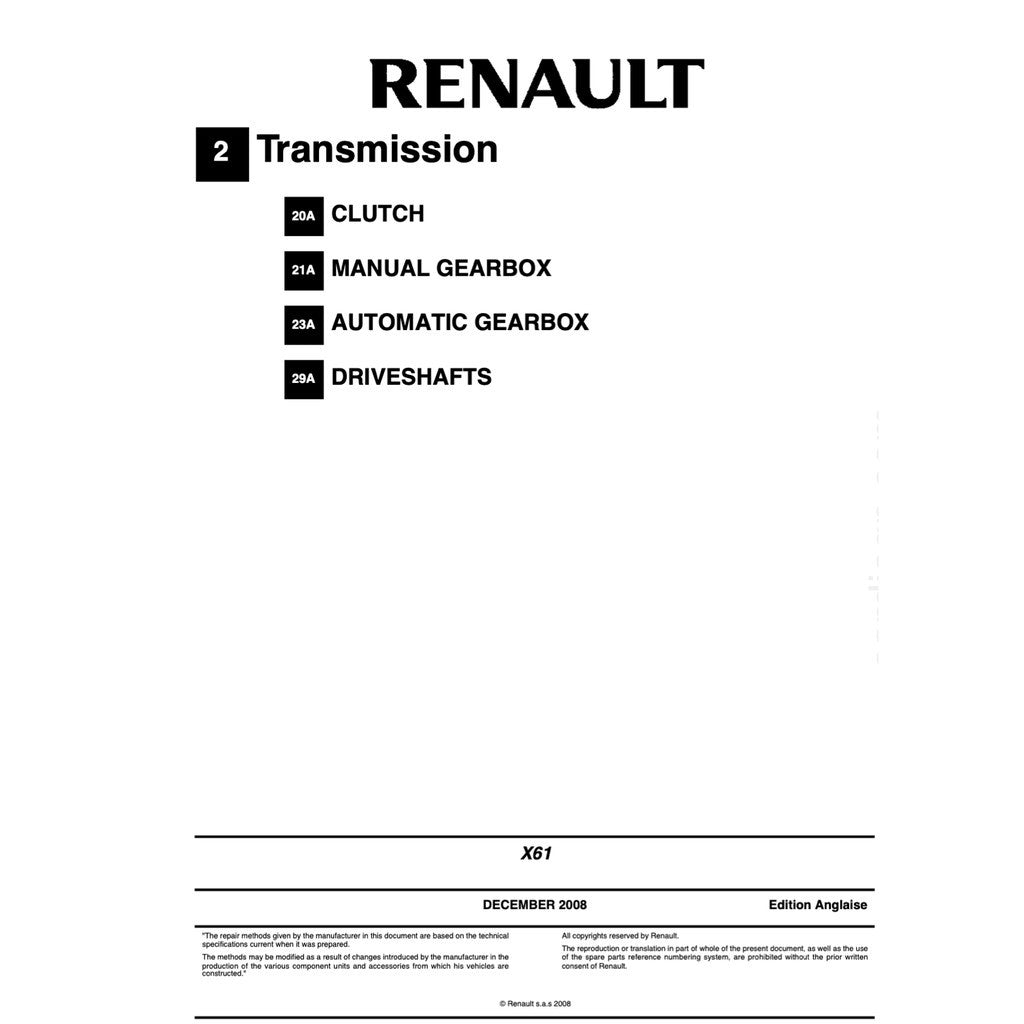

Transmission
5 speed manual JH3
6 speed manual JR5
6 speed automatic DPO 106
WHAT'S INSIDE ?
Detailed sub-steps expand on repair procedure information
Notes, cautions and warnings throughout each chapter pinpoint critical information.
Numbered instructions guide you through every repair procedure step by step.
Bold figure number help you quickly match illustrations with instructions.
Detailed illustrations, drawings and photos guide you through every procedure.
Enlarged inset helps you identify and examine parts in detail.
Numbered table of contents easy to use so that you can find the information you need fast.
This manual also makes it easy to diagnose and repair problems with your machines electrical system.
Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
