Takeuchi TB020 Compact Excavator Service Manual Workshop Guide

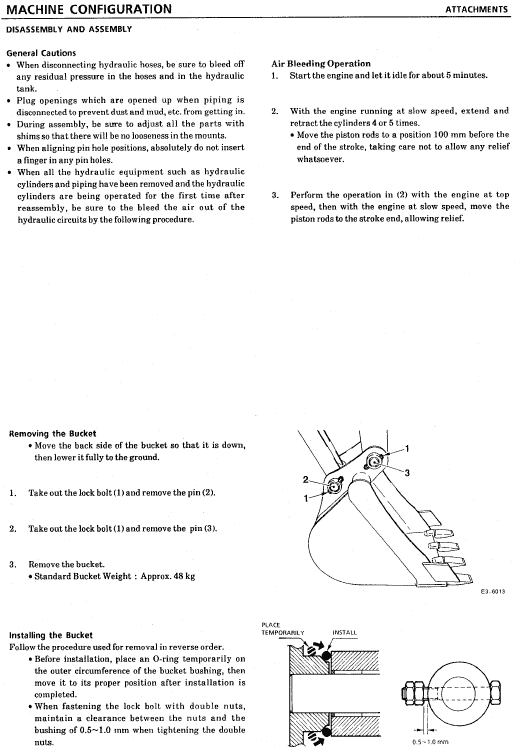

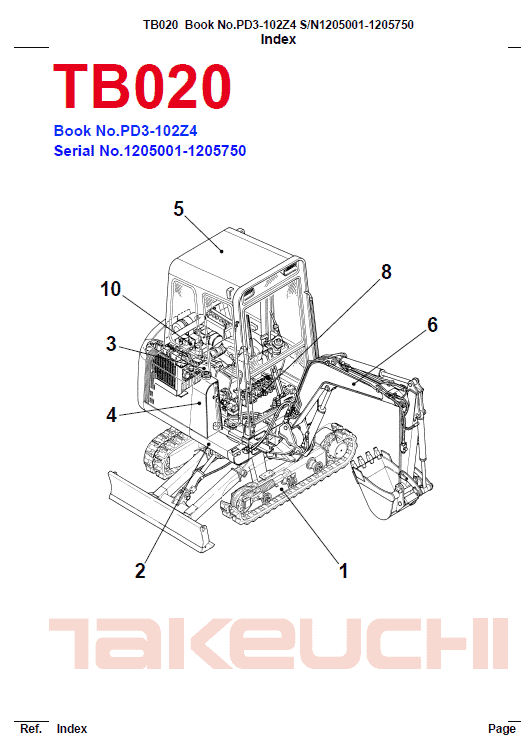

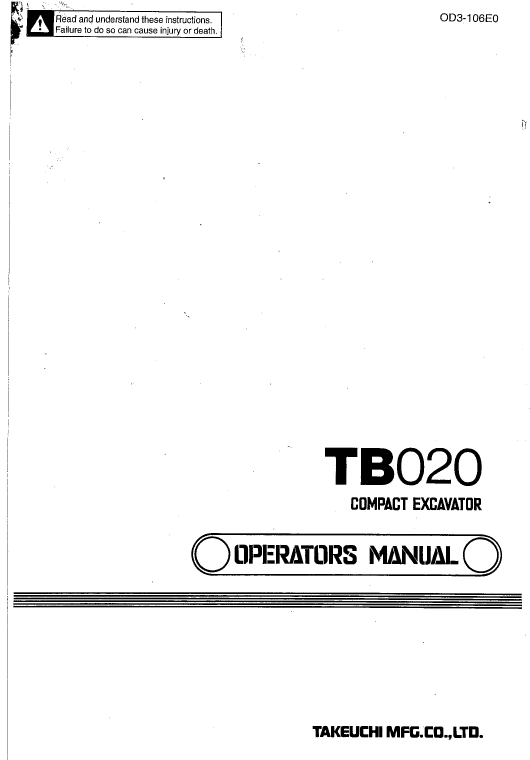

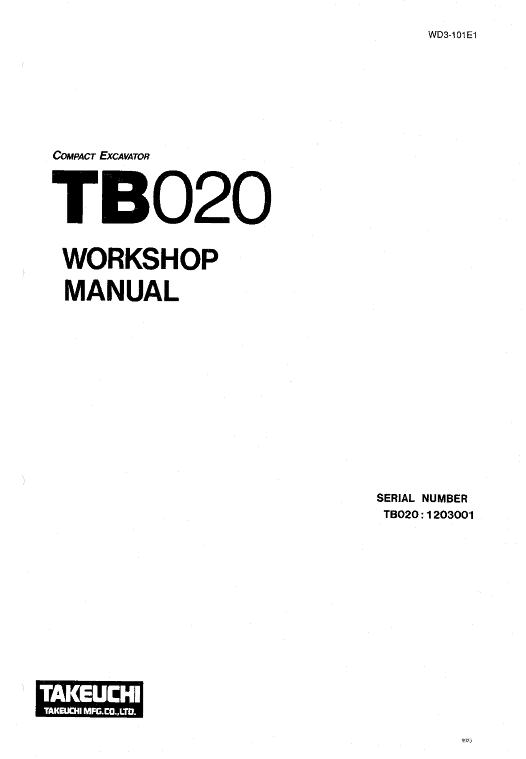

Takeuchi TB020 Service Repair Manual – 490 Pages Takeuchi TB020 Operating Manual – 82 Pages Parts Manual for TB020 – 237 Pages Description Takeuchi TB020 Compact Excavator Service Manual Type: Excavator TB020 Format: PDF Language of the Manual: English Excavator Serial Number : 1205001-1205750 Takeuchi TB020 Service Manual – 490 Pages Takeuchi TB020 Operating Manual – 82 Pages Parts Manual for TB020 – 237 Pages The manual describes operation, service, repair and maintenance of the excavator, as well as safety instructions that should be follow. The Takeuchi TB020 manual is intended for persons who engage in maintenance operations, and explains procedures for disassembly and reassembly of the machine, check and maintenance procedures, maintenance reference values, troubleshooting and outline specifications, etc. Please use this Takeuchi manual for excavator TB020 as a reference in service activities to improve maintenance techniques. Please note that the contents and diagrams included in this manual may not match your machine exactly. Items or diagram which manual contains are subject to change without notice due to design modifications, etc. Always store the Takeuchi excavator manual near at hand preferably on the machine itself. When transferring ownership of this machine, be sure to provide the owner manual to the next owner. Table of Content of TB020 Instructions Manual: I . GENERAL II . SPECIFICATIONS III. MACHINE CONFIGURATION IV. HYDRAULIC UNITS V . TROUBLESHOOTING VI. ENGINE Before operating, perform the prescribe inspections and make repairs immediately should any irregularities be found. If a failure that causes loss of control such as steering, service brakes or engine occurs, stop the machine motion as quickly as possible, follow the shutdown procedure, and keep machine securely park until the problem is fixed. Extract from the Service Manual: 1. Connect a pipe from the hydraulic pump to the shaft side port. 2. Connect a pressure gauge to the hub side. 3. Increase the pressure gradually to 210 kg/cm2 while adjusting the relief valve, then perform a 1 minute leak test. • Release the neighboring ports on both sides and check visually for leakage from the ports. • Check for external leakage, etc. by a color check.
