Timberjack 1010B Forwarder Service Repair Manual Workshop Guide

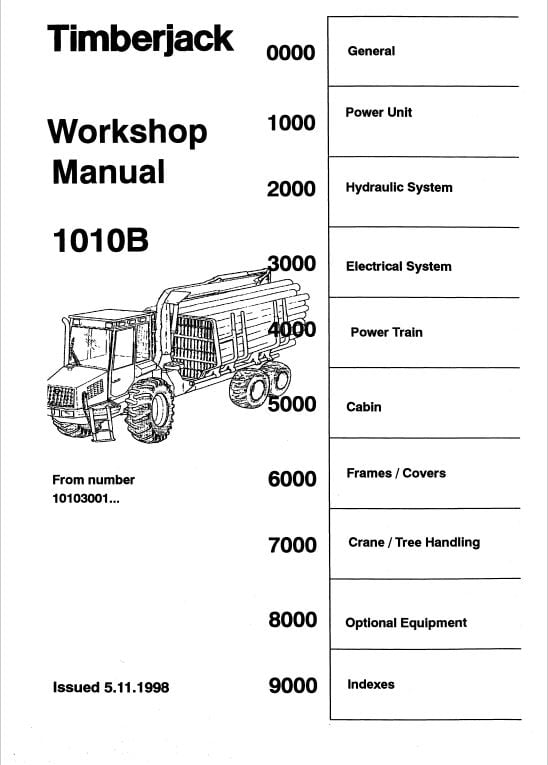

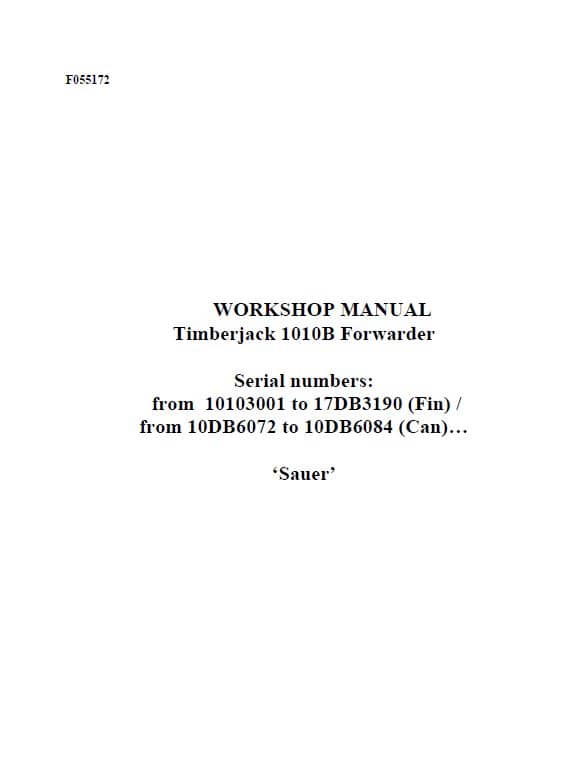

Manual Included: Repair Technical Manual: 1073 Pages (F055172) Repair Technical Manual: 1332 Pages ( TMF060718 ) Specifications: Brand: John Deere Model: 1010B Serial Number: F055172 SN between 10DB6072 – 10DB6084 (North America SN) SN between 10103001 – 17DB3190 (European SN) TMF060718 SN between 10DB6058 – 10DB6071 (North America SN) SN between 17DB3191 – 17DB3212 (European SN) Type: Forwarder Manuals: Repair Technical Manual Publication Numbers: F055172 & TMF060718 Language: English Format: PDF Note: The publication (TMF062547 & TMF062549) is applicable if your machine serial is not covered above. Description Table of Contents (F055172) General Power Unit Hydraulic System Electrical System Power Train Cabin Frames / Covers Crane / Tree Handling Optional Equipment Indexes Table of Contents (TMF060718) GENERAL INFORMATION POWER UNIT HYDRAULIC SYSTEMS ELECTRIC SYSTEMS POWER TRAIN CAB SYSTEMS FRAMES AND PANELS TREE HANDLING MACHINE SPECIFICATION O.E.M DATA To assist the operator in becoming familiar with the many features of this machine, and thereby become proficient in the operation and periodic maintenance procedures, this manual is provided with detailed operating and service instructions as well as safety information and equipment data. Throughout this manual, references are made to the front, rear, left, and right side of the machine. Consider the right side, left side, front, and rear, of the Forwarder from a seated position in the operator's seat with the engine being at the front. Where applicable throughout the text, "Safety Alert" symbols have been used to indicate important safety measures. Read carefully, understand, and follow these instructions to prevent hazardous situations that could lead to risk of personal injury. The instructions and procedures in this manual cover Forwarders with the most commonly used options; therefore pictorial presentation in some areas may vary slightly from the actual machine. This variation, however, does not have any impact on the accuracy of the written information. The information contained in this manual is current at the time of publication; however, continuing product improvement may result in changes to the machine which are not covered. Should information regarding such changes or further information on the machine be required, please contact your Timber jack dealer .
