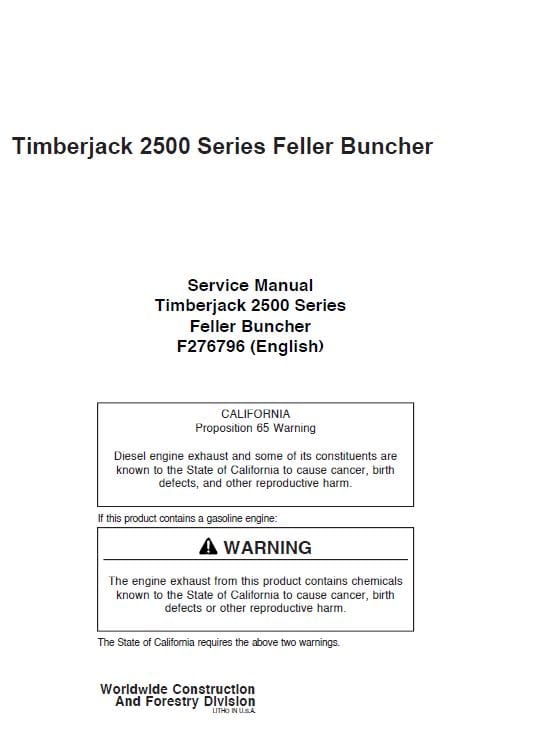

Timberjack 2515, 2518, 2520 Feller Buncher Service Repair Manual Workshop Guide

Manual Included: Repair Service Manual: 422 Pages (F276796) Specifications: Brand: John Deere Model: Timberjack 2515, 2518, 2520 (2500 Series) Type: Feller Buncher Manuals: Repair Service Manual Publication Numbers: F276796 Language: English Format: PDF Description Table of Contents (Repair Service Manual – F276796) Engine Radiator Expansion Tank Fan Air Cleaner Fuel Tank Electrical System Pump Drive Hydrostatic Pump Drive Motor Hydraulic Pump Cylinder – Fore & Aft Tilt Cylinder – Side Tilt Cylinder – Main Boom Cylinder – Jib Boom Cylinder- Tool Hydraulic Valve Joystick Controls Filters and Strainers Hydraulic Oil Cooler Swing Motor Swing Gear Swing Brake Bearing Pinion Gear Swing Warning Track To assist the operator in becoming familiar with the many features of this machine, and thereby become proficient in the operation and periodic maintenance procedures, this manual is provided with detailed operating and service instructions as well as safety information and equipment data. Throughout this manual, references are made to the front, rear, left, and right side of the machine. Consider the right side, left side, front, and rear, of the Forwarder from a seated position in the operator's seat with the engine being at the front. Where applicable throughout the text, "Safety Alert" symbols have been used to indicate important safety measures. Read carefully, understand, and follow these instructions to prevent hazardous situations that could lead to risk of personal injury. The instructions and procedures in this manual cover Forwarders with the most commonly used options; therefore pictorial presentation in some areas may vary slightly from the actual machine. This variation, however, does not have any impact on the accuracy of the written information. The information contained in this manual is current at the time of publication; however, continuing product improvement may result in changes to the machine which are not covered. Should information regarding such changes or further information on the machine be required, please contact your Timberjack dealer .
