Toyota 7FB10, 7FBH10, 7FB14, 7FBH14 Forklift Service Repair Manual

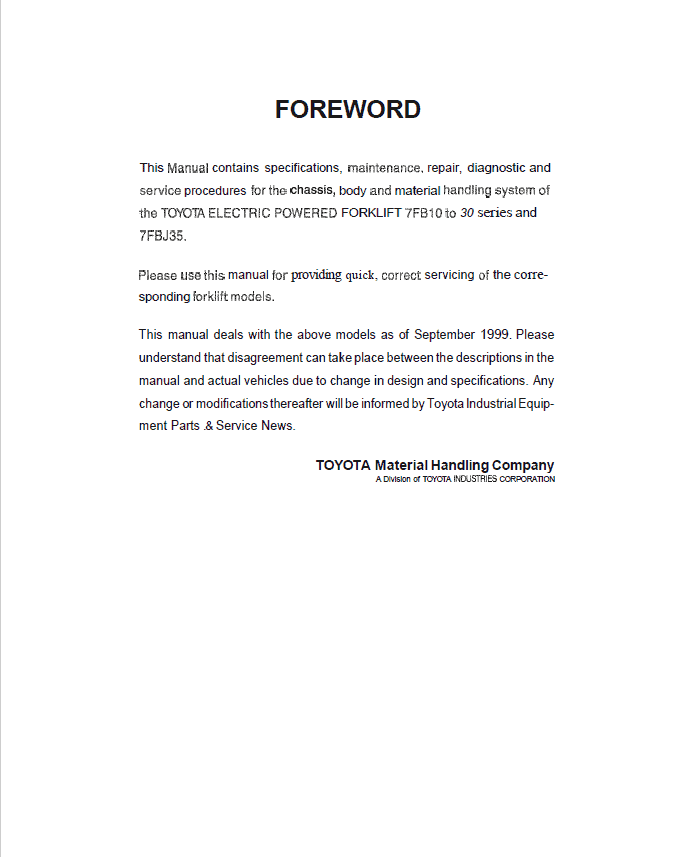

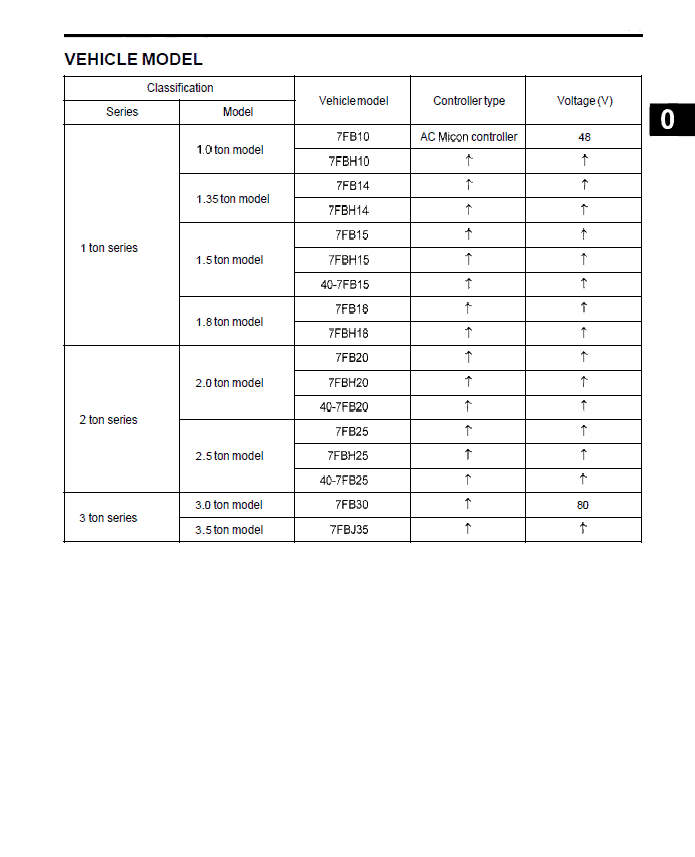

Format: PDF Language: English Model Covered: 7FB10, 7FBH10, 7FB14, 7FBH14 TOYOTA 7FB10, 7FBH10, 7FB14, 7FBH14 Forklift Repair Manual – 669 Pages Description TOYOTA 7FB10, 7FBH10, 7FB14, 7FBH14 Forklift Repair Manual Format: PDF Language: English Model Covered: 7FB10, 7FBH10, 7FB14, 7FBH14 TOYOTA 7FB10, 7FBH10, 7FB14, 7FBH14 Forklift Repair Manual – 669 Pages This manual covers the inspection, adjustment and repair procedures mainly for the overhaul of the engine, chassis and material handling system of the TOYOTA ELECTRIC POWERED FORKLIFT 7FB-10 to 30 series and 7FBJ35. This repair manual contains the latest information available. Please under-stand that disagreement can take place between the descriptions in the manual and actual vehicles due to change in design and specifications. Any change or modifications thereafter will be informed by Toyota Industrial Equipment Parts & Service News. For the service procedures of the mounted engine, read the repair manuals listed below as reference together with this manual. Table of content of the Repair Service Manual GENERAL BATTERY CHARGER CONTROLLER MULTI-DISPLAY FUNCTIONS ELECTRICAL SYSTEM TROUBLESHOOTING MOTOR DRIVE UNIT FRONT AXLE REAR AXLE BRAKE BODY MATERIAL HANDLING SYSTEM MAST CYLINDER OIL PUMP OIL CONTROL VALVE SAS FUNCTIONS (OPT) APPENDIX ATTENTIVE POINTS ON SAS 1. Read Section 18 SAS "Precautions for Repair" on Page 18-9 in this repair manual in advance. 2. Whenever the repair or replacement is performed to the place where relative to SAS function, resetting procedure by which the SAS regain proper function must be performed. (See Page 18-19) 3. The warning on the SAS caution label must be confirmed when the modification or change is such as to change the original specification.If improper, change the label. (See Page 18-1 0-1) 4. Care should always be exercised for safety operation whenever you operate the truck. Make distinction between the SAS featured trucks and those of none, because the control features are different. 5. The SAS oil control valves comprise many precision valves. Since dirty or contaminated hydraulic oil will adversely affect the functions of these valves, always wash the parts clean at the time of installation after disassembly or for replacement of hydraulic parts (valves, piping, etc.). Periodic replacement of the hydraulic oil is very important. 6. Since this vehicle uses high-precision electronic devices, modification of electrical parts may cause faults. Always use genuine Toyota parts when replacing or installing electrical parts (auxiliary equipment, optional parts, etc.).
