TOYOTA COROLLA ALTIS E140/150 (2007-2012) SERVICE WORKSHOP MANUAL IN PDF (
9870 PAGES
) AVAILABLE AS DOWNLOADABLE LINK
ENGINE COVERED BY THIS MANUAL: 1.8L 2ZR-FE & 2.4L 2AZ-FE

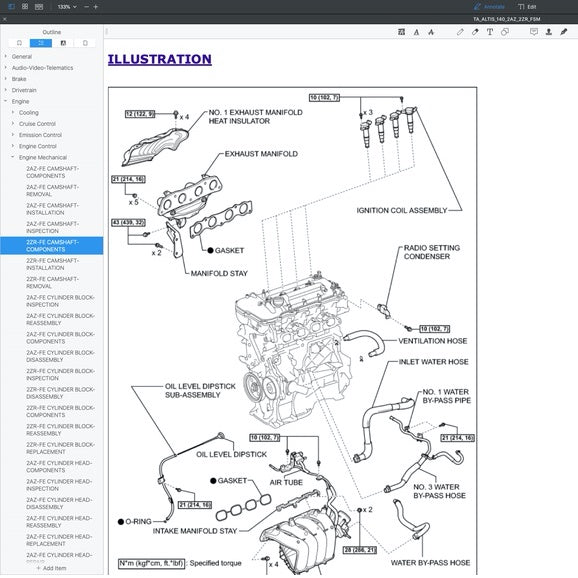

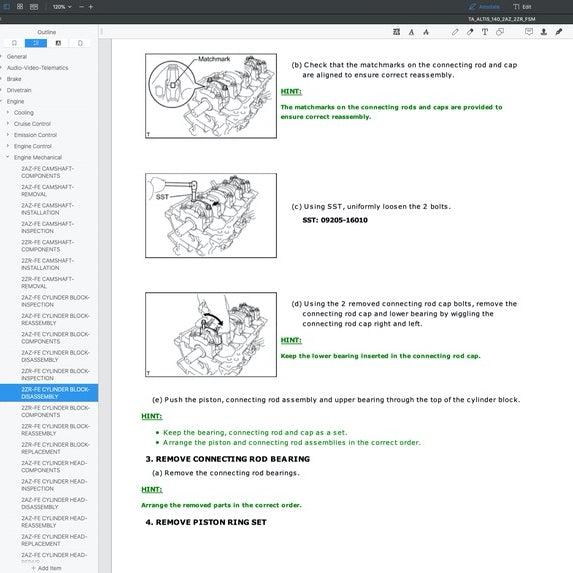

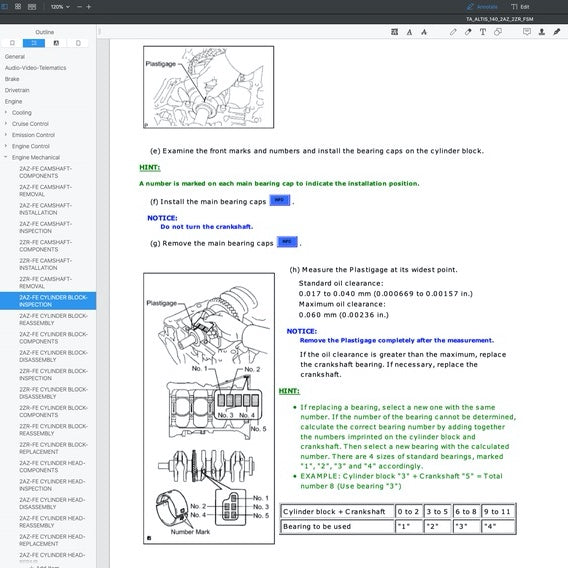

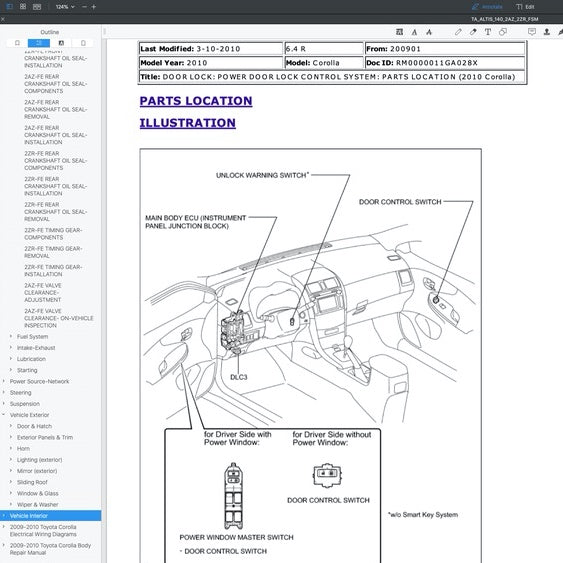

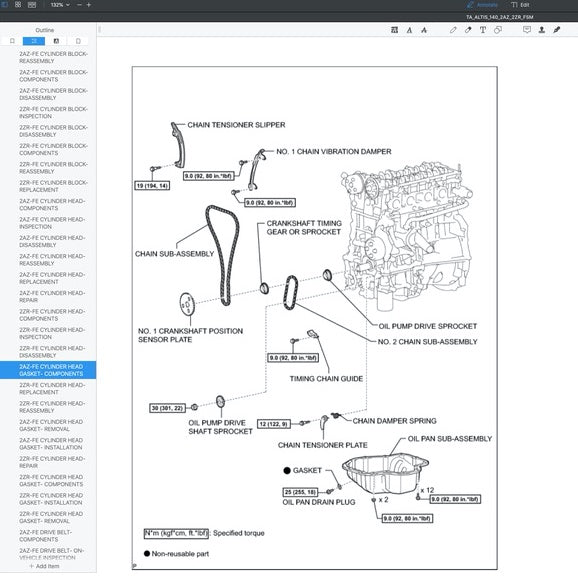

This is the same service manual your local TOYOTA dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. Pages are printable, so run off what you need and take it with you into the garage or workshop.
REFERENCE POWERTRAIN:
Engine
Petrol:
1.3 L 2NZ-FE I4
1.4 L 4ZZ-FE I4
1.5 L 1NZ-FE I4
1.5 L 1NZ-FTE turbo I4
1.6 L 3ZZ-FE I4
1.6 L 1ZR-FE I4
1.8 L 1ZZ-FE I4
1.8 L 2ZR-FE I4
1.8 L 2ZR-FBE (E85/petrol; Thailand)
2.0 L 3ZR-FE I4
2.4 L 2AZ-FE I4
Diesel:
1.4 L 1ND-TV D-4D turbo I4
2.0 L 2C-III I4
2.0 L 1CD-FTV D-4D turbo I4
Transmission
5-speed manual
6-speed manual
7-speed CVT-i
4-speed U140E Super ECT automatic
5-speed U150E automatic
6-speed MMT (Multi Mode Transmission) semi-automatic
