TOYOTA PRIUS ZVW50 2015-2022 Full Manual Set – ONLINE Repair & Maintenance Manual

TOYOTA PRIUS ZVW50 (2015-2022) ONLINE SERVICE WORKSHOP MANUAL SUPPLIED AS DOWNLOADABLE LINK.

ENGINE FEATURED IN THIS MANUAL: 1.8 L 2ZR-FXE I4

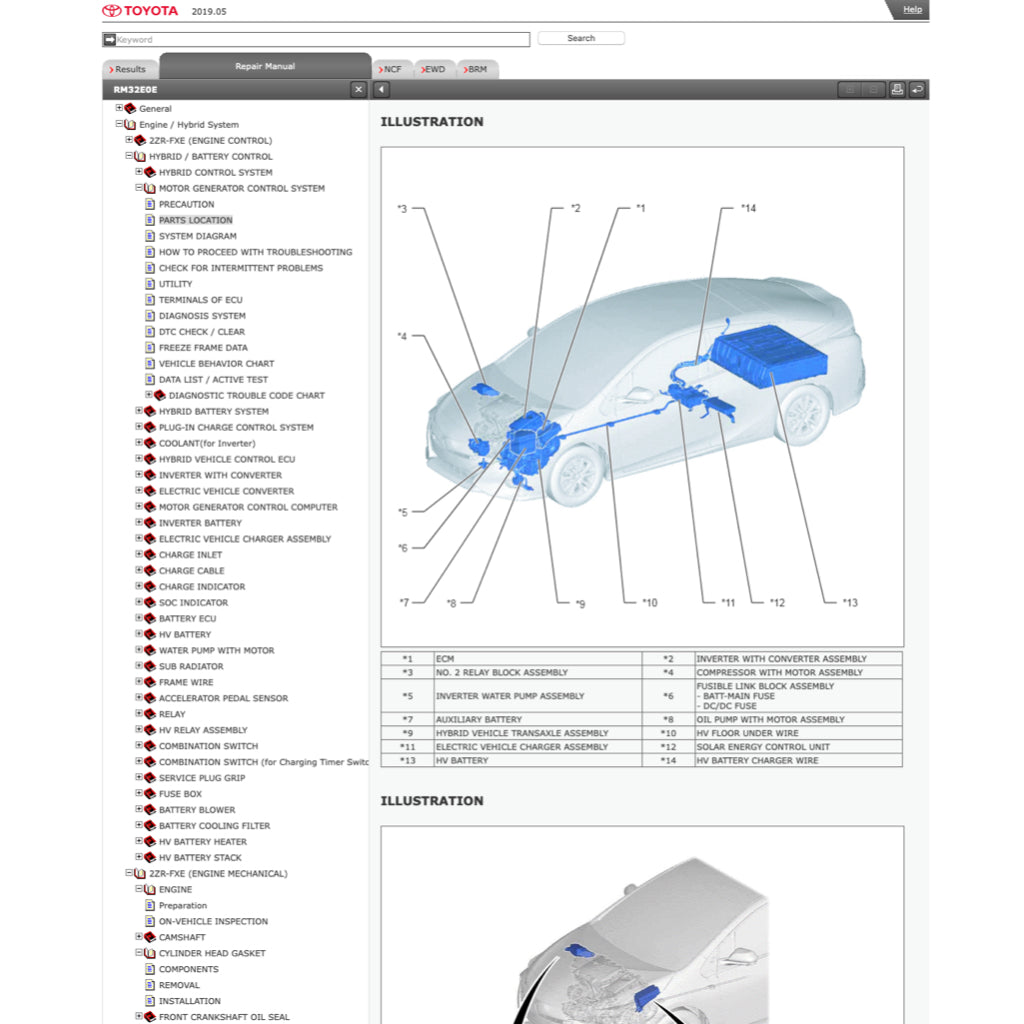

CAVEAT: THIS MANUAL IS AN EXTRACTION OF THE TOYOTA GSIC SYSTEM DESIGNED FOR DIRECT ONLINE VIEWING ONLY

POWERTRAIN
Engine1.8 L 2ZR-FXE I4 (gasoline hybrid)
Electric motor: Dual motor–generator (MG) system: MG1 (model 1SM): 23 kW (31 hp) MG2 (model 1NM): 53 kW (71 hp)
Rear: 5 kW (6.7 hp) (AWD-e)
Transmission: eCVTHybrid drivetrainPower-split (Hybrid Synergy Drive)
Battery
0.75 kWh lithium-ion
1.2 kWh nickel-metal hydride(AWD-e)
