TOYOTA RUSH F800 (2017-2023) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (2300 PAGES) VIEWING SUPPLIED BOTH AS DOWNLOADABLE LINK AND PEN DRIVE SHIPPED.
THIS IS THE COMPLETE WORKSHOP MANUAL FOR TOYOTA RUSH F800 WHICH INCLUDES 1.5L ENGINE 2NR-VE; AUTOMATIC TRANSMISSION, BODY/CHASSIS AND WIRING DIAGRAM. THE MANUAL FEATURES HUNDREDS OF TUTORIAL PICTURES, EXPLODED DIAGRAMS. TORQUE SETTING, ETC...
POWERTRAIN
Engine
Petrol:
1.5 L 2NR-VE I4
Transmission
5-speed manual
4-speed automatic

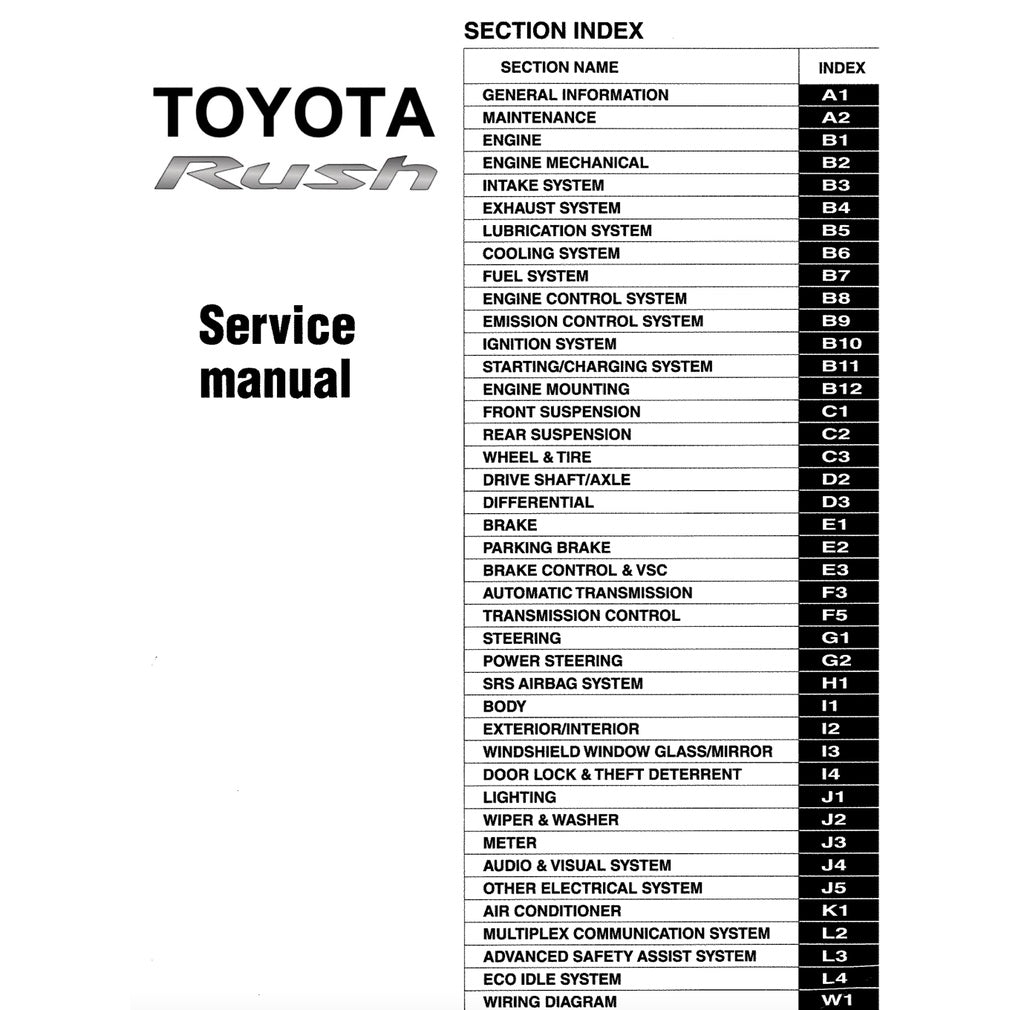

CONTENTS (SEE TABLE OF CONTENTS)

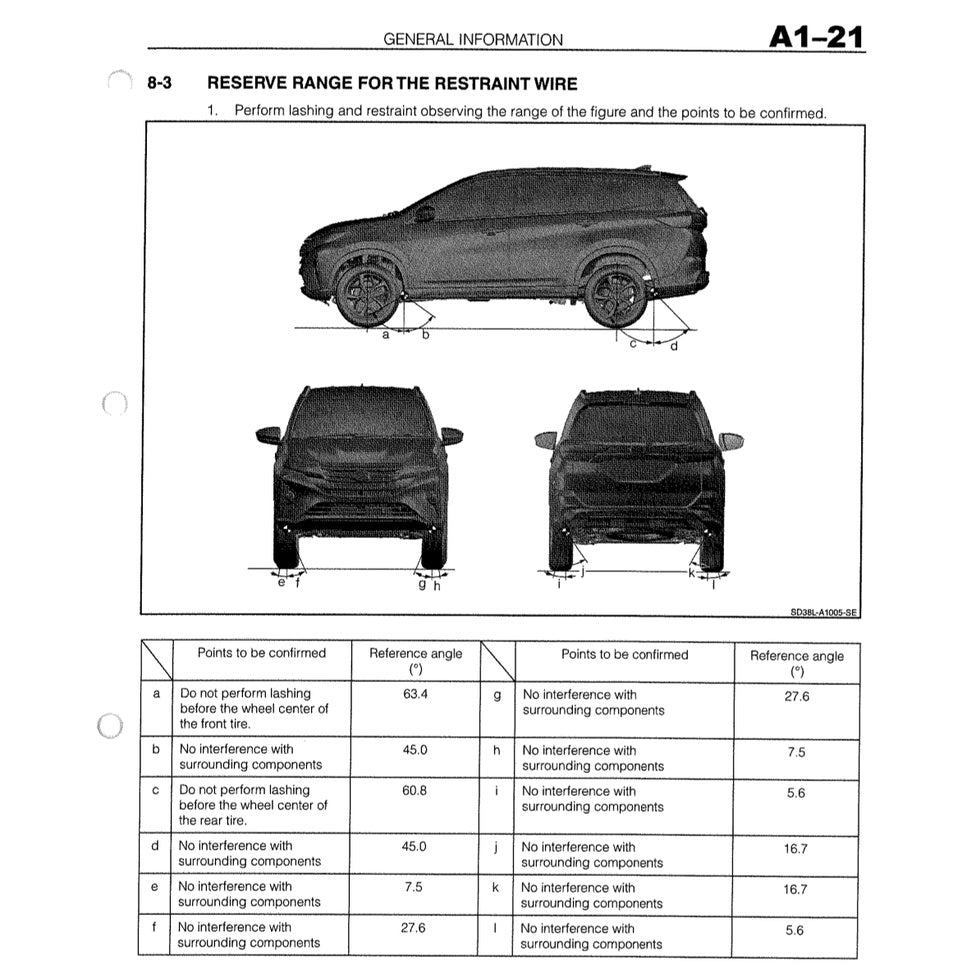

- GENERAL INFORMATIONS/SPECIFICATIONS/SERVICE/MAINTENANCE

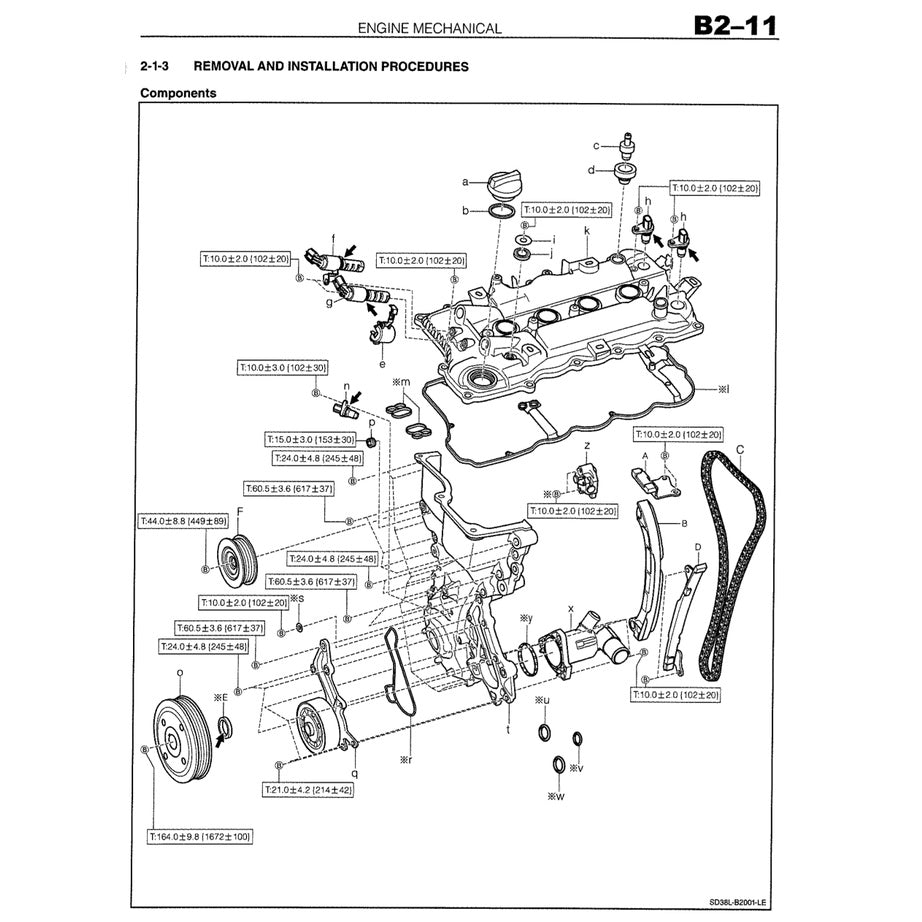

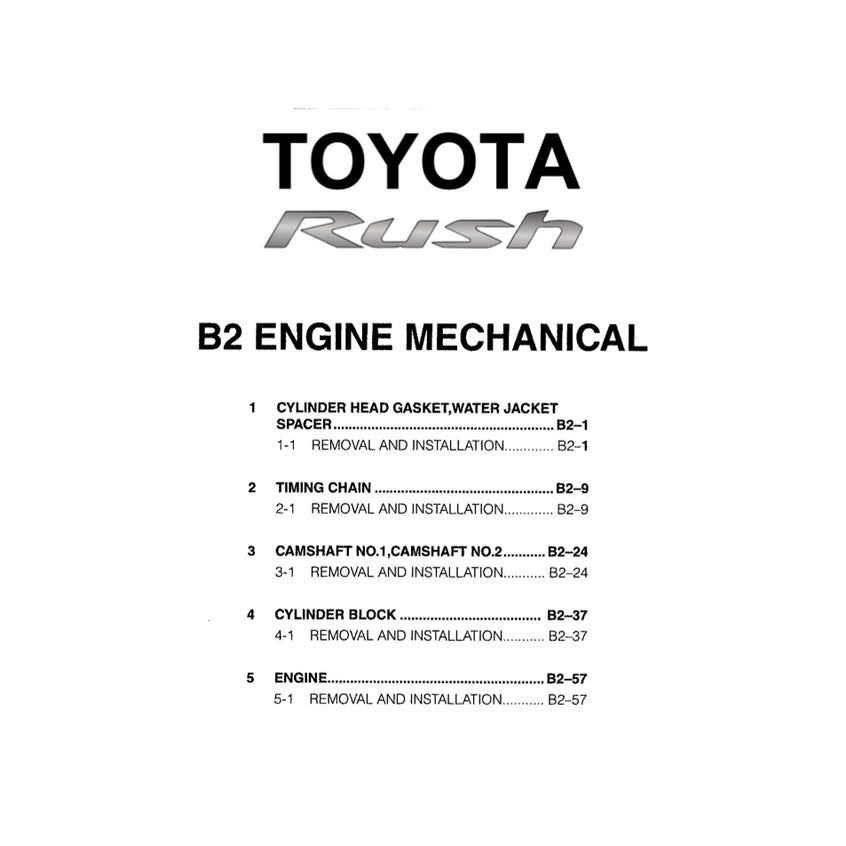

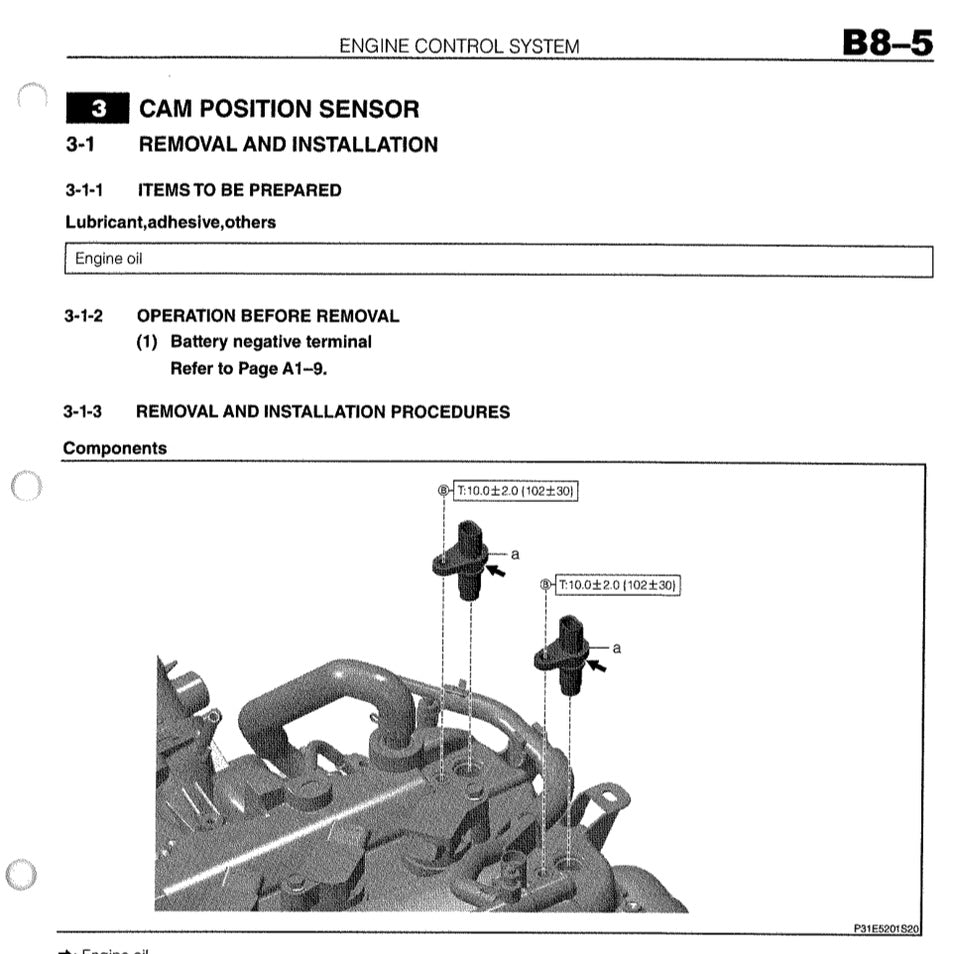

- ENGINE, ENGINE SYSTEMS AND CONTROLS (2NR)

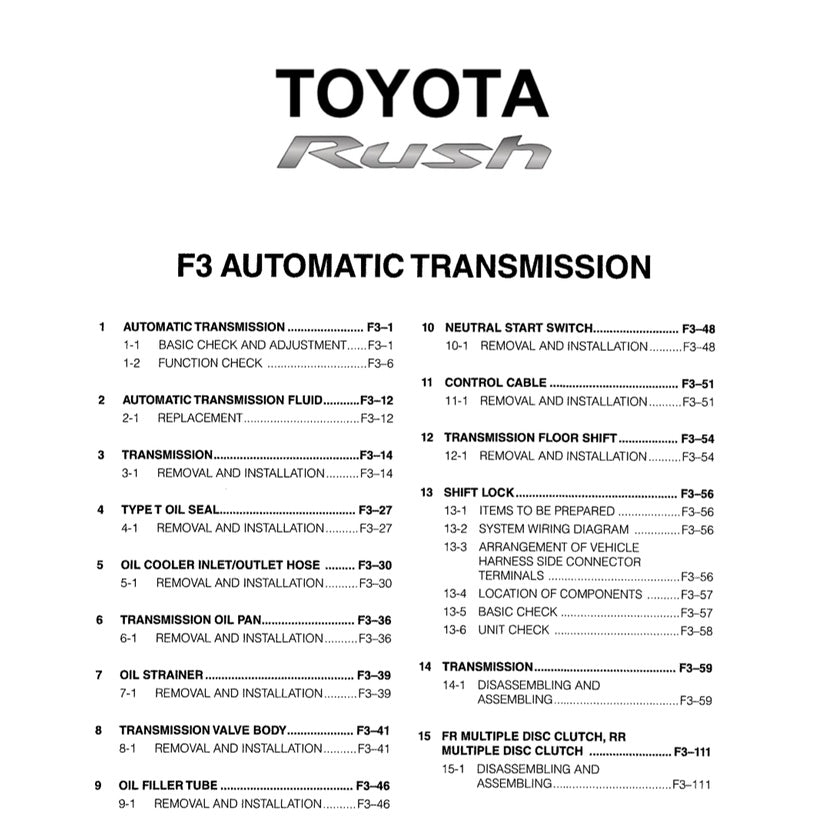

- TRANSMISSION & TRANSAXLES: AUTOMATIC TRANSMISSION AND CONTROLS
- RUNNING GEARS INCLUDING SUSPENSION & STEERING, BRAKE, ABS, WHEELS & TYRES
- BODYWORK

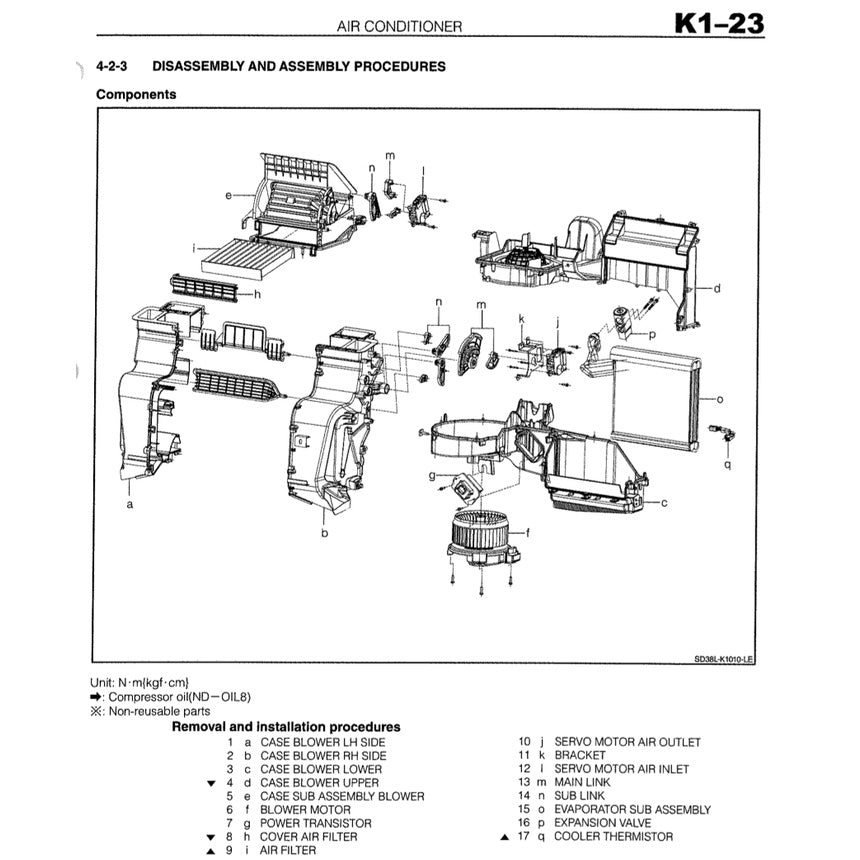

- HVAC

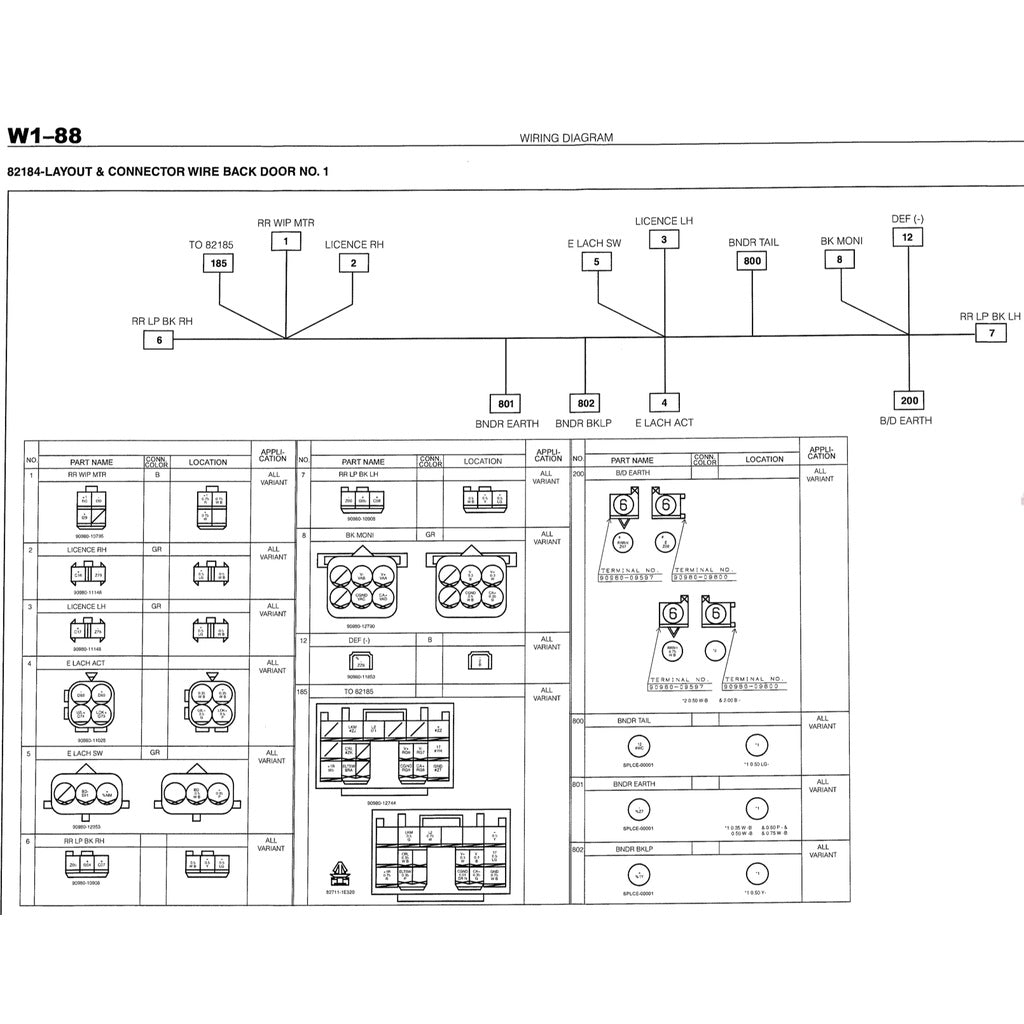

- BODY ELECTRICAL WIRING DIAGRAMS INCLUDING SYSTEMS DIAGRAMS, WIRING HARNESS OUTLAY AND CONNECTORS IDENTIFICATION
