Valtra BM85, BM100, BM110, BM120, BM125i Tractor Service Manual Workshop Guide

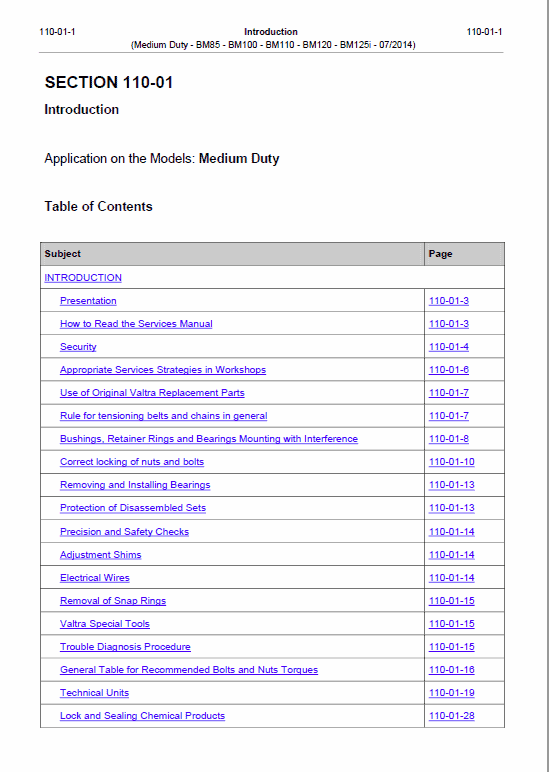

Manual for: Valtra Tractor Format: PDF English Valtra BM85, BM100, BM110, BM120, BM125i Tractor Service Manual : 1609 Pages Valtra BM85, BM100, BM110, BM120, BM125i Tractor Operators Manual : 120 Pages Repair Time Schedule – 108 Pages Description Valtra BM85, BM100, BM110, BM120, BM125i Tractor Manual Manual for: Valtra Tractor Format: PDF English Valtra BM85, BM100, BM110, BM120, BM125i Tractor Service Manual : 1609 Pages Valtra BM85, BM100, BM110, BM120, BM125i Tractor Operators Manual : 120 Pages Repair Time Schedule – 108 Pages Manual TABLE OF CONTENTS Introduction Engine Cooling System Battery and Cables Gearbox Transmission Front Shaft Chassis Cabin and Safety Hydraulic System Special Tools The purpose of this Service Manual is to assist the Dealers when performing an efficient maintenance of the BM Series tractors. A good product support assumes increasing importance. Besides selling a good product, good service is indispensable, because only then you can achieve the ultimate goal which is the Customer satisfaction. In this context, the maintenance structure provided by the Dealer is of fundamental importance and therefore should only be performed by trained personnel, thoroughly familiar with the different components of the tractor. Therefore, in addition to taking periodic refresher courses in the Valtra Brazil Training Units, REFER TO this guide before performing the service whenever you have any questions. For this, the Manual should always be available at the workshop. In addition to always keeping it in working condition, the Services Department should be alert for updates that will be introduced in the tractors and therefore in the Manual. How to Read the Services Manual This manual was divided in systems (1, 2, 3, 4, 5, etc.), each describing a specific system of the tractor. Examples: Information, Engine, Electric, Transmission, Rear Axle and Brake, Front Axle and Steering, Chassis, Tires and Wheels, etc. Each system is divided in groups (10, 20, 30, 40, 50, etc.), each describing a specific group. Examples: Engine, Transmission, Hydraulic System, Chassis, Tires and Wheels, etc. Each group is divided in sections (01, 02, 03, 04, 05, etc.), each describing a specific section. Examples: in the case of Engines: Introduction, the engine itself, Cooling System, Lubrication System, Fuel System, etc. Other examples: Transmission: Gearbox, Clutch, Power Take Off, etc. Each section page has a sequential number, starting with 01.
