VW TIGUAN I 5N (2008-2016) SERVICE WORKSHOP MANUAL IN PDF FORMAT (
6365 PAGES
) SUPPLIED AS DOWNLOADABLE LINK
ENGINE COVERED IN THIS MANUAL: 1.4 L TSI I4; 1.8 L TSI I4; 2.0 L TSI I4 &. 2.0 L TDI I4
REFERENCE POWERTRAIN:
Engine
Petrol:
1.4 L TSI 120 I4
1.4 L TSI 150 I4
1.8 L TSI 160 I4
2.0 L TSI 170 I4
2.0 L TSI 200 I4
Diesel:
2.0 L TDI 110 I4
2.0 L TDI 140 I4
2.0 L TDI 150 I4
2.0 L TDI 184 I4
Transmission
6-speed manual
6-speed automatic
6-speed DSG
7-speed DSG
WHAT'S INSIDE ?
Detailed sub-steps expand on repair procedure information
Notes, cautions and warnings throughout each chapter pinpoint critical information.
Numbered instructions guide you through every repair procedure step by step.
Bold figure number help you quickly match illustrations with instructions.

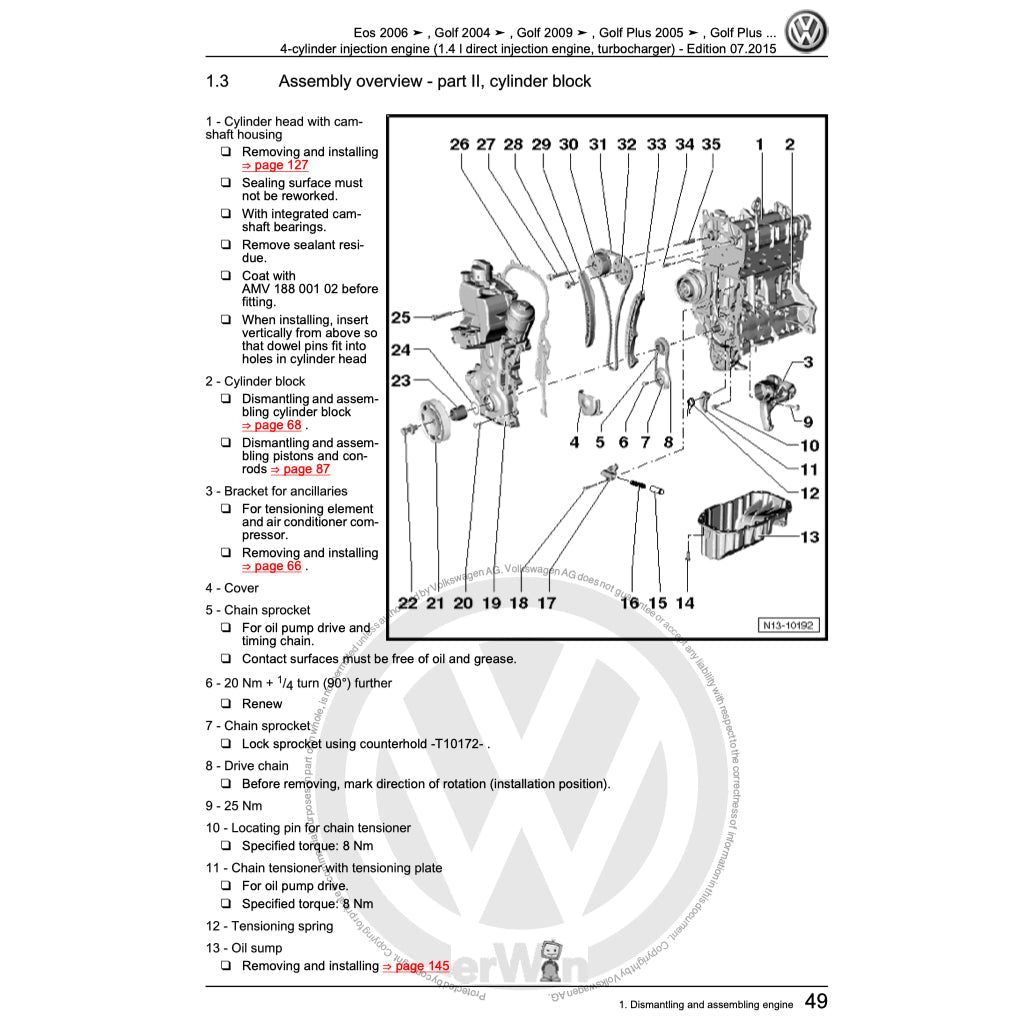

Detailed illustrations, drawings and photos guide you through every procedure.
Enlarged inset helps you identify and examine parts in detail.
Numbered table of contents easy to use so that you can find the information you need fast.
This manual also makes it easy to diagnose and repair problems with your machines electrical system.

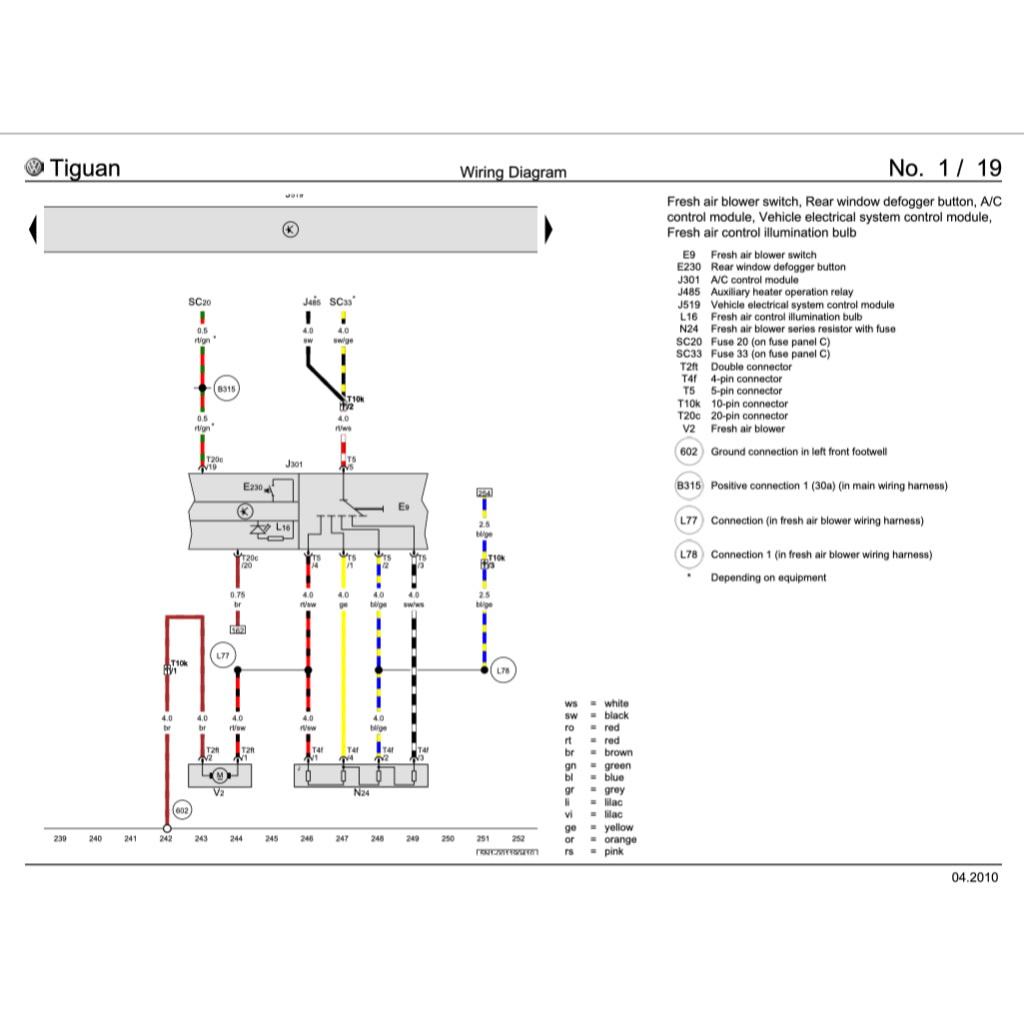

Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
