White 6410, 6510 Tractors Service Manual Workshop Guide

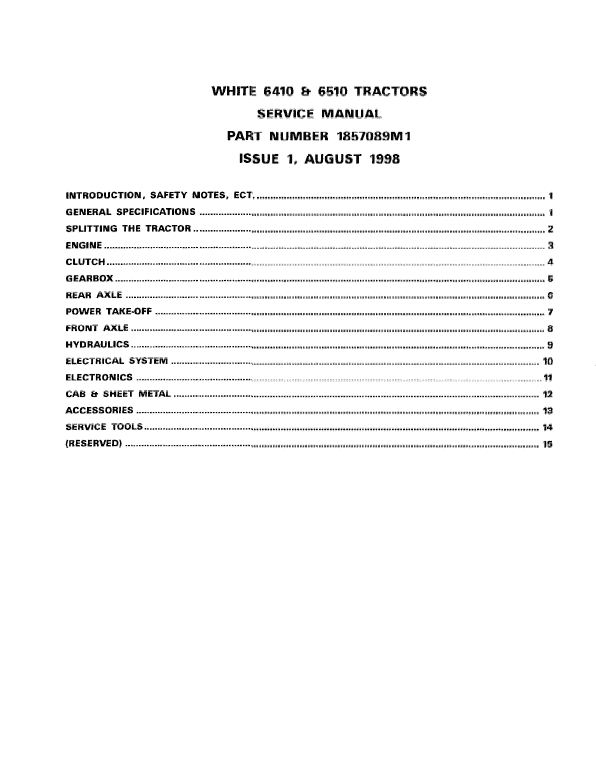

AGCO White 6410, 6510 Service Tractor Manual : 616 Pages Format: PDF Book Number: 1857089M1 English Description AGCO White 6410, 6510 Compact Tractor Manual Manual for: AGCO White Tractor Format: PDF Book Number: 1857089M1 English AGCO White 6410, 6510 Service Tractor Manual : 616 Pages Manual TABLE OF CONTENTS Introduction, Safety, Notes, etc General Specifications Splitting the Tractor Engine Clutch Gearbox Rear Axle Power Take off Front Axle Hydraulics Electrical System Electronics Cab & Sheet Metal Accessories Service Tools White 6410, 6510 Manual Extract OIL SUPPLY CONTROL VALVE Dis-assembly 1. Disconnect the two hydraulic hoses. 2. Remove the clevis pin cylinder to operating lever. 3. Remove the spring clip from the valve spindle pivot. 4. Remove the cylinder assembly. 5. Remove the circlip . 6. Pull the valve assembly out of the cylinder. 7. Remove and discard the 'O' ring in the cylinder body. 8. Remove the crimped clip on the end of the spindle. 9. Remove the valve components; valve, spring, washer and spindle. 10. Remove the internal 'O' ring and discard. 11. Remove the wiper seal and discard. Examination Clean all the components and check for wear replacing any worn components. Ensure that the valve seat in the cylinder and on the spindle is in good working condition. Check that the valve slides freely up and down the valve spindle.
