White 8310, 8410 Tractor Service Manual Workshop Guide

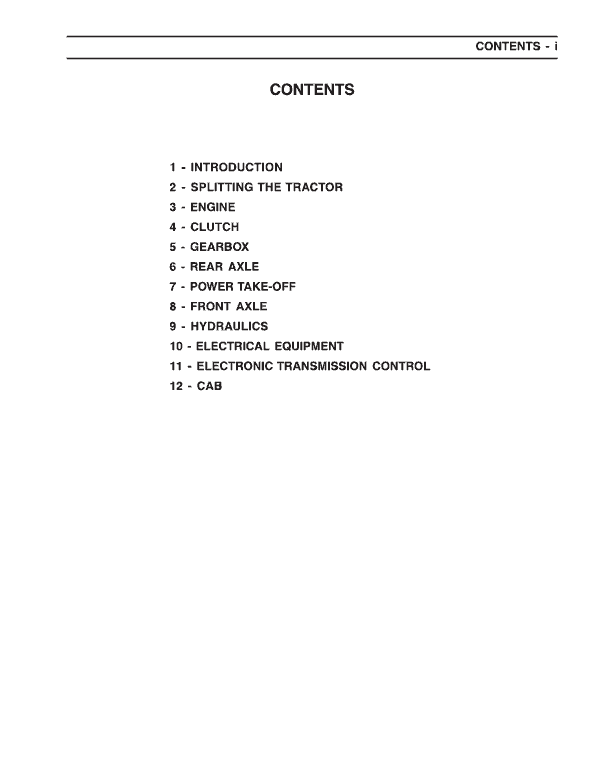

AGCO White 8310, 8410 Service Tractor Manual : 557 Pages Manual for: AGCO White Tractor Format: PDF English Description AGCO White 8310, 8410 Compact Tractor Manual Manual for: AGCO White Tractor Format: PDF English AGCO White 8310, 8410 Service Tractor Manual : 557 Pages Manual TABLE OF CONTENTS Reading the Manual General Specification Chassis dimensions Safety precautions Practical advice Installation instructions Conversion tables Locking compounds and sealants Tightening torques 8310, 8410 Manual Extract Removing and refitting the engine flywheel Removal 1 . Split the tractor between the engine and the gearbox (see Section 2B01 ). 2. Immobilize the engine flywheel. 3. According to the version, remove the shock absorbed or the connecting plate (see Part A or D). 4. Remove the flywheel. Refitting 5. Check the parts and replace any that are faulty. 6. Screw two guide studs in diametrically opposite positions in the flywheel attachment holes on the crankshaft. 7. Refit the engine flywheel. 8. Remove the guide studs. Tighten the bolts to a torque of between 120 and 160 Nm (89-118 ft.lbs.) (Loctite 270). 9. Refit the shock absorbed or the connecting plate. 10. Recouple the tractor between the engine and the gearbox (see Section 2B01 ).
